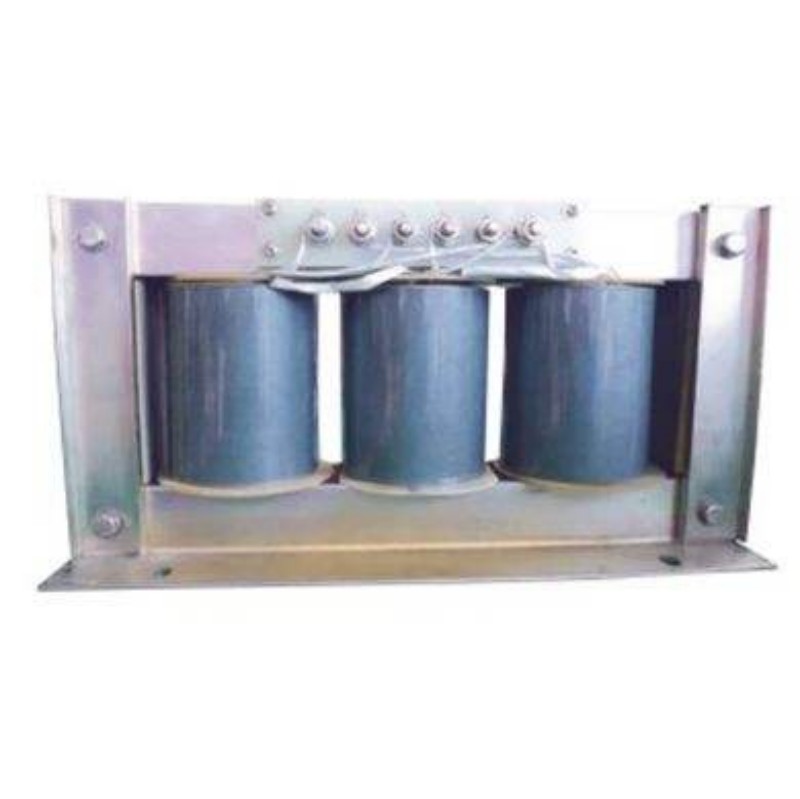

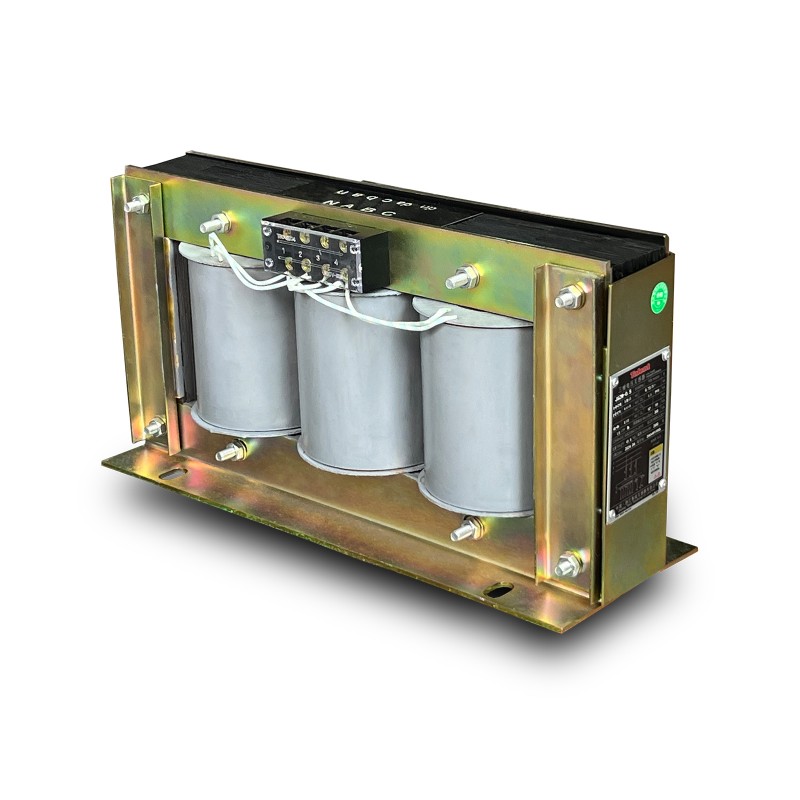

This JSGW-0.5 Voltage Transformer has core advantages such as small size, light weight, switchable, and easy installation, and is widely suitable for the procurement needs of compact fully insulated ring network switchgear. It is particularly suitable for combining with remote terminal equipment such as RTU and FTU to form a sampling unit, providing a comprehensive solution and data support for the entire system. After procurement and installation, there is no need to modify the original wiring. It can be directly installed on the connected incoming and outgoing cables, making the operation simple and fast, significantly reducing the cost of engineering installation. At present, it has been widely used in compact fully insulated ring network switchgear series such as SafeRing/Plus, Uniswitch, RM6/SM6, SVS, GA/GE, FB, SS, etc., and is also suitable for the procurement and supporting needs of combined substations, cable distribution boxes and other equipment.
In terms of core materials and processes, JSGW-0.5 Voltage Transformer uses high-quality imported high permeability silicon steel sheets as magnetic materials, which have the characteristics of detachable iron cores and low magnetic circuit losses. The resin is vacuum cast inside a flame-retardant plastic shell, with excellent moisture resistance, stable performance, and no need for later maintenance, which meets the purchasing cost-effectiveness requirements for long-term use. During installation, clamp the two semi-circular rings onto the phase separated cable and secure them with clamps to blend seamlessly with the cable, creating a beautiful and coordinated appearance. The product is suitable for the procurement scenario of 10KV cables with specifications ranging from 35mm ² to 400mm ². The clamp is made of high-quality stainless steel material, which is sturdy and reliable. There is no eddy current generated during use, ensuring the safe operation of the equipment.
Perfect performance and accuracy Rated voltage:
0.5kV and below
High precision grade: With the accuracy and reliability of measurement data, meet strict industrial standards.
Excellent insulation level: Due to the high quality materials and advanced technology, it ensures long-term stability and safety in complex working conditions.
Low loss ability: With energy efficient and make it help you reduce system operating costs.
As a professional China Voltage Transformer Manufacturer, we, Welcome (Wenzhou) Electrical Co., Ltd. has a complete quality management system and assure every JSGW-0.5 Voltage Transformer testing from raw material procurement to final product release, ensuring compliance with International Electrotechnical Commission (IEC) standards and relevant standards.
Choosing Voltage Transformers Made in China means you'll enjoy unmatched cost performance. With our complete industrial chain and mass production advantages, we deliver top-end quality at the most competitive market prices, maximizing your procurement efficiency.
The JSGW-0.5 Indoor Voltage Transformer is applied to power distribution systems for commercial and industrial buildings, substation monitoring and control systems, power plant auxiliary systems, rail transit and infrastructure, and renewable energy generation systems etc. (e.g., solar and wind power).
When you need China JSGW-0.5 Voltage Transformers or any other electrical equipment, choosing Comewill means choosing a powerful and reliable partner. Our modern production base in Zhejiang is ready to deliver high-quality products and services to global customers.
Contact us now to discuss further your needs and get the latest quotes and technical information!
Let us become your trusted China Electrical Equipment Supplier, and together we will light up the future.
