Comewill, a China manufacturer and supplier, provides quality Outdoor Vacuum Circuit Breaker, which interrupts fault currents using a vacuum arc-extinguishing chamber and a spring or electromagnetic operating mechanism. With compact structure, fast arc interruption, and strong environmental adaptability, these breakers are widely installed in outdoor electrical networks with rated voltages typically ranging from 5kV to 40.5kV.

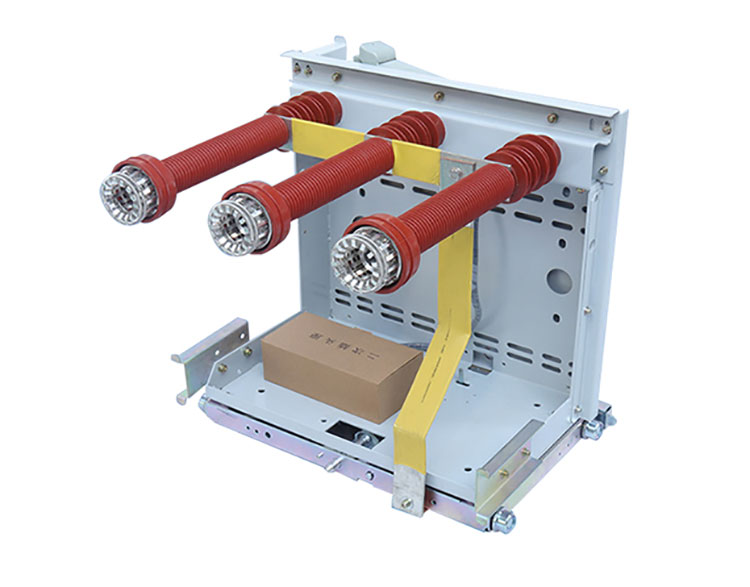

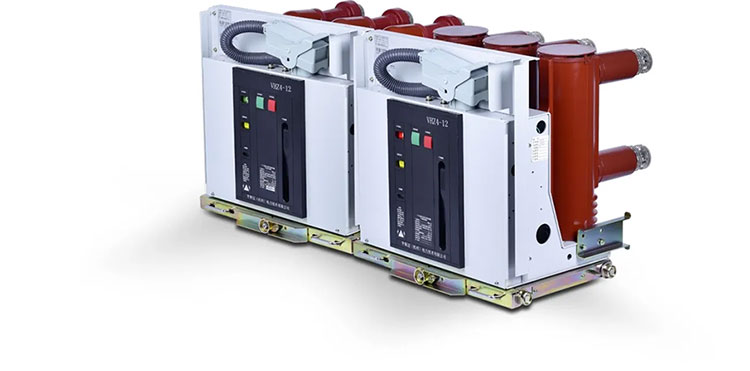

An Outdoor Vacuum Circuit Breaker is designed for installation in open-air power distribution environments. It uses a vacuum interrupter as the arc-extinguishing medium and operates through a spring or electromagnetic mechanism to open and close the electrical circuit.
When a fault occurs, the contacts separate inside the vacuum chamber and an electrical arc forms. Because the environment is under high vacuum, the arc is extinguished quickly and the current is interrupted safely. These breakers are commonly used in outdoor substations, pole-mounted distribution systems, and grid infrastructure.
The operation of an Outdoor Vacuum Circuit Breaker mainly involves two parts: the vacuum interrupter and the operating mechanism.
Vacuum Arc Interruption
When the breaker opens, an arc forms between the separating contacts. In the vacuum chamber, the arc dissipates rapidly because there are almost no gas particles to sustain it.
Energy Storage Mechanism
The spring mechanism stores mechanical energy and releases it during operation, driving the contacts to move quickly and interrupt the current.
Fast Operation Time
Typical opening time is ≤45 ms, allowing the breaker to isolate faults before equipment damage spreads through the system.
A professional China factory producing Outdoor Vacuum Circuit Breaker equipment usually follows standard technical indicators used in distribution networks.
Rated Voltage
Common levels include 12kV, 24kV, and 40.5kV.
Rated Current
Typical rated current ranges from 630A to 1600A, depending on system capacity.
Short-Circuit Breaking Current
Most breakers support 20kA to 31.5kA interrupting capacity.
Environmental Conditions
Outdoor equipment generally operates within −40°C to +40°C and is designed with pollution resistance for contaminated environments.
Mechanical Life
The mechanical life of many breakers reaches 10,000 operations or more.
Correct installation helps ensure stable operation of an Outdoor Vacuum Circuit Breaker in the field.
Mounting Structure
The breaker is fixed on a dedicated steel frame or pole structure, usually installed at a height of 4 meters or higher.
Component Assembly
Components are installed sequentially: structural frame → post insulator → vacuum interrupter → busbar connections.
Electrical connection
Output line spacing and pole distance must follow design standards, and terminal connections should be protected with anti-corrosion grease.
1. Fast Arc Extinguishing
Vacuum interruption technology allows rapid arc suppression and reduces the risk of equipment damage.
2. Environmentally Compatible Design
No insulating oil or SF6 gas is required, helping avoid leakage or emissions.
3. Low Maintenance Requirements
The sealed vacuum chamber reduces wear on internal contacts and minimizes routine servicing.
4. Compact and Lightweight Structure
Compared with traditional oil circuit breakers, the structure is smaller and easier to transport and install.
5. Adaptation to Outdoor Conditions
Composite insulation materials such as silicone rubber or epoxy resin help resist pollution flashover, ultraviolet radiation, and temperature changes.
