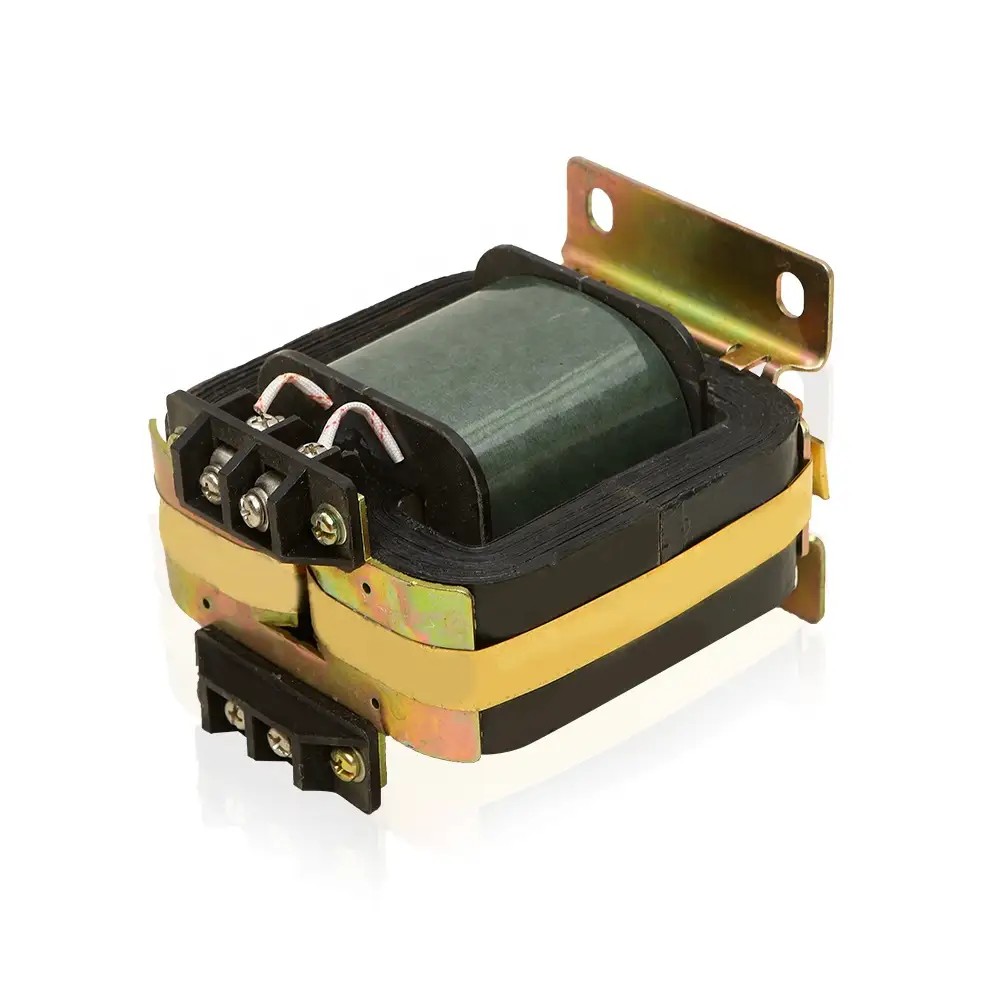

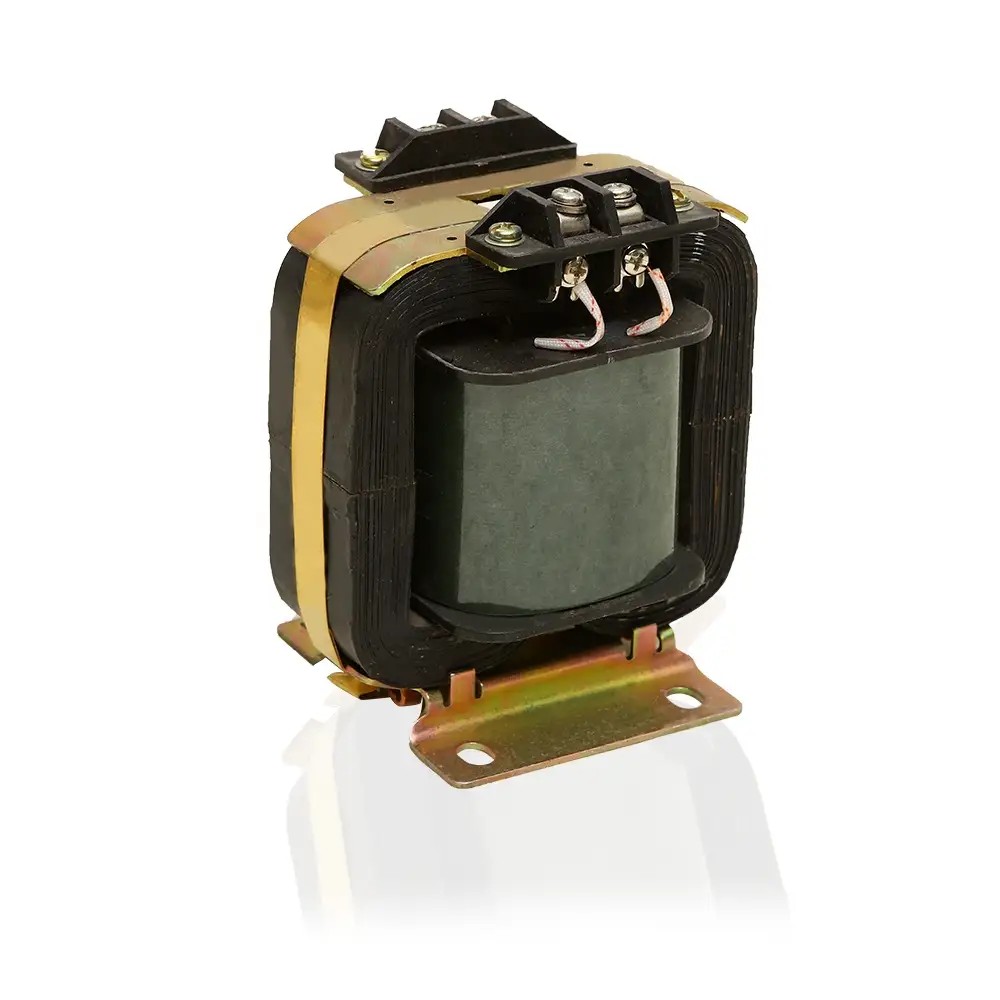

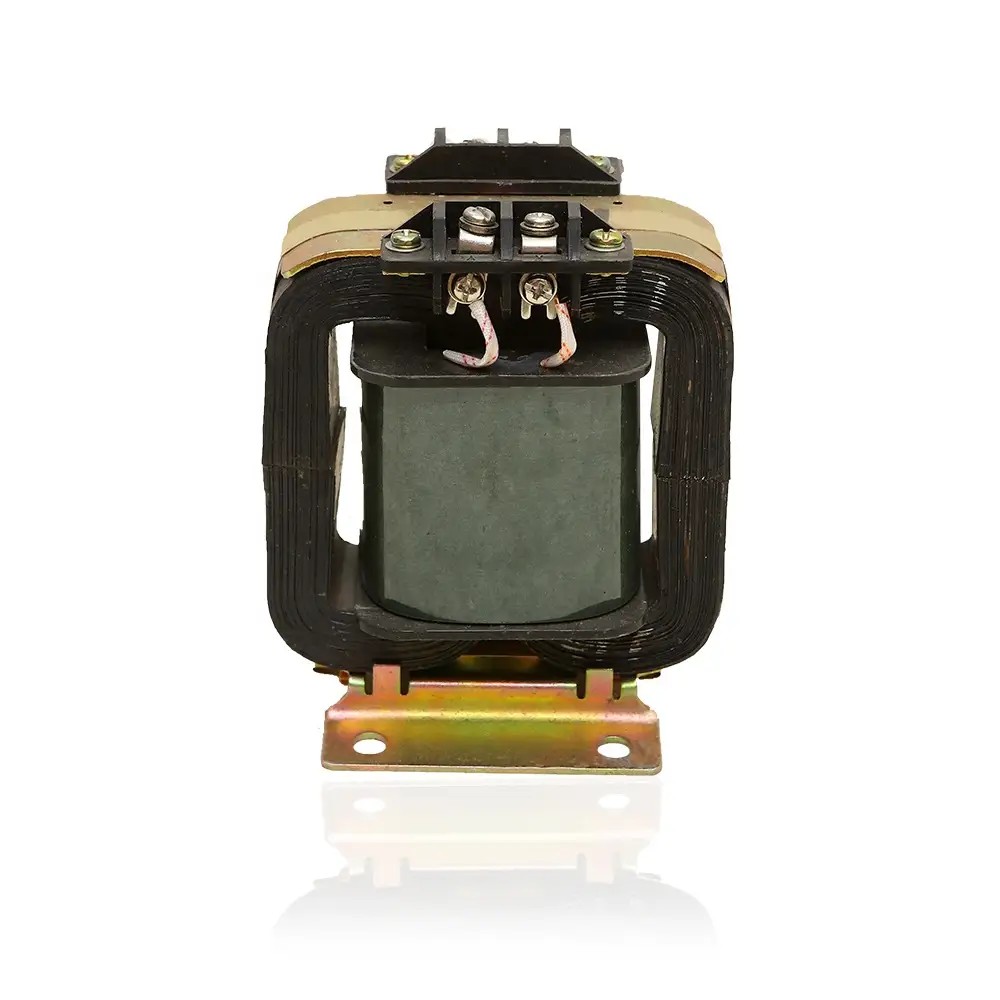

As a professional China Manufacturer, Comewill offers the JJDG4-0.5 Voltage Transformer, engineered for accurate voltage measurement, energy metering, and relay protection. Built with a rugged thermosetting phenolic frame and high-quality silicon steel cores, it complies with GB1207 and IEC60044-2 standards.
Rugged construction: a tough thermosetting phenolic plastic frame paired with high-quality cold-rolled silicon steel cores. This solid build delivers three must-have functions for our procurement needs: spot-on voltage measurement, reliable energy metering, and steady relay protection—all vital to keeping power system infrastructure running smoothly. It checks all the boxes for both domestic GB1207 standards and international IEC60044-2:2003 norms, meeting the strict quality and compliance bar our company sets for procurement projects.
Built with our core procurement priorities—accuracy, safety, and long service life—in mind, the JDG4-0.5 Voltage Transformer is a perfect match for our needs when outfitting measuring instruments or protective relay systems. Its compact yet sturdy design holds up against overloads and keeps performing consistently even in tough indoor conditions, directly boosting the efficiency and safety of the power systems we deploy. Whether for bulk purchases or targeted equipment upgrades, this transformer proves to be a trustworthy, cost-effective choice that lines up perfectly with our company’s procurement quality requirements and functional needs.
| TYPE | Ratio(kv) | Class | Relative rated output(VA) | Secondary Limit Output(VA) | Rated insulatior level(kv) | Weight(Kg) |
| JDG4-0.5 | 360/100 | 0.2(0.5) | 10(15) | 150 | 0.72/3 | 5 |
| 380/100 | 0.2(0.5) | 10(15) | 150 | |||
| 400/100 | 0.2(0.5) | 10(15) | 150 | |||
| 500/100 | 0.2(0.5) | 10(15) | 150 | |||
| JDG4-0.72 | 630/100 | 0.2(0.5) | 10(15) | 150 | 0.72/3 | |
| 690/100 | 0.2(0.5) | 10(15) | 150 | |||
| 800/100 | 0.2(0.5) | 10(15) | 150 | |||
| JDG4-1.2 | 1140/100 | 0.2(0.5) | 10(15) | 150 | 1.2/3 | |
| JDG4-0.72 | 690/√3/100/√3 | 0.2(0.5) | 10(15) | 150 | 0.72/3 | |
| 800/√3/100/√3 | 0.2(0.5) | 10(15) | 150 | |||
| JDG4-1 | 950/√3/100/√3 | 0.2(0.5) | 10(15) | 150 | 1.2/3 | |
| JDG4-1.2 | 1140/√3/100/√3 | 0.2(0.5) | 10(15) | 150 | ||
| Note: If the parameters requested by the user exceed the range specified in the above table, they may be determined through consultation with our company. | ||||||

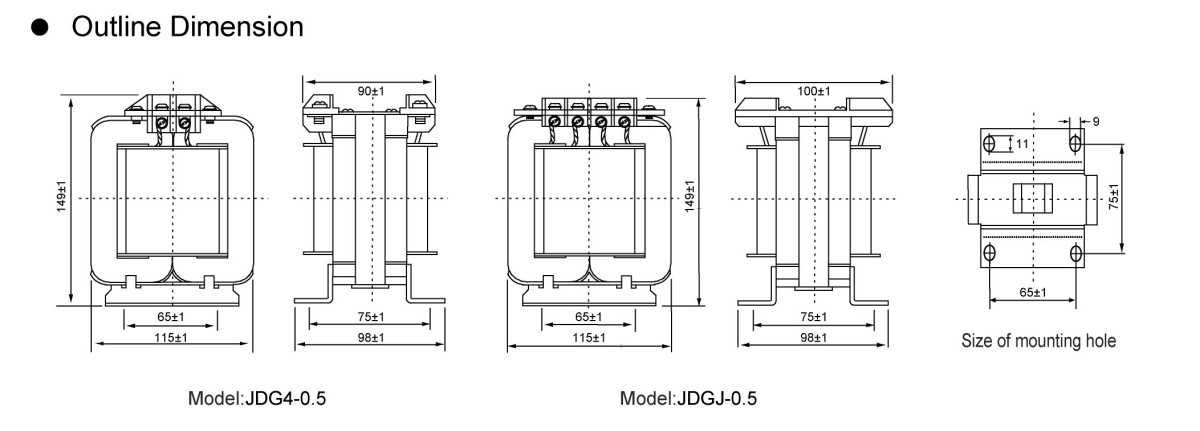

JDG4-0.5 Indoor Low Voltage Transformer Dimensions of Installation

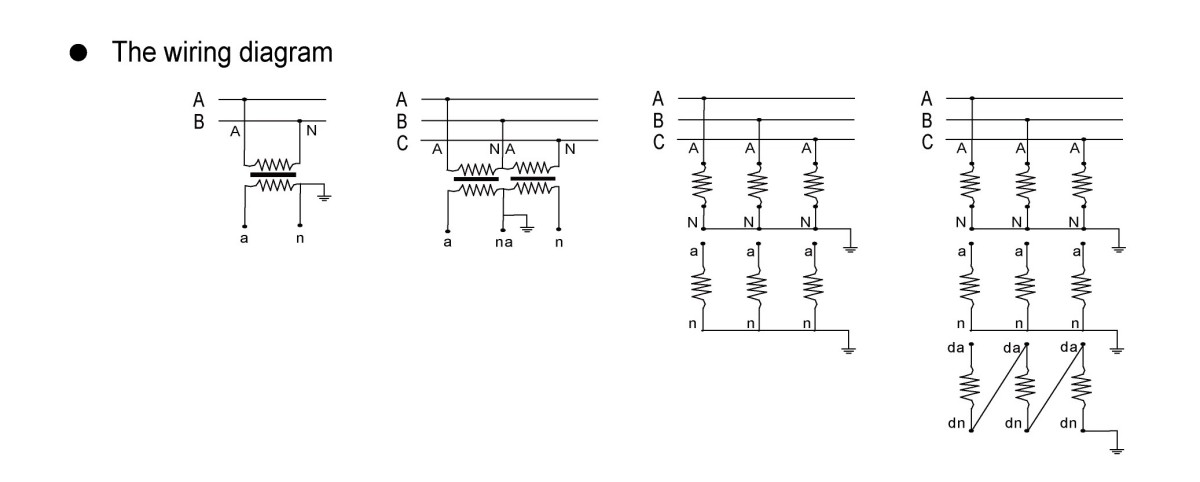

When selecting and procuring voltage transformers (PTs) from our factory, three specialized connection schemes stand out for their engineering practicality—each tailored to distinct system requirements and functional priorities, ensuring alignment with project procurement standards:
1. Star (Y-Y) Grounded Connection
Exclusive to power systems with ungrounded neutral points or those grounded via arc suppression coils, this connection mandates the primary winding’s neutral terminal to be directly grounded. Its core procurement value lies in enabling precise phase-to-ground voltage measurement, a non-negotiable requirement for insulation condition monitoring in such system architectures.
2. V-V Incomplete Delta Connection
Constructed using two single-phase PTs, this scheme interfaces with the UAB and UBC line voltages of the power grid to form an incomplete delta structure. A go-to option for procurement in 20kV and below ungrounded/arc suppression coil-grounded networks, it excels at inter-phase voltage detection. A critical procurement consideration: it lacks the capability to measure phase-to-ground voltage, making it unsuitable for scenarios requiring full voltage monitoring.
3. Open Delta Multi-Winding Connection
Formed by three single-phase three-winding PTs, this configuration adopts either YN, yn, d11 or YN, y, d11 wiring—with the secondary star winding’s neutral grounded through the B-phase. As a versatile procurement choice, it accommodates all voltage levels, particularly 3~15kV systems. The secondary winding delivers dual functionality (inter-phase and phase-to-ground voltage measurement), while the auxiliary secondary winding’s open delta design supports connection to insulation monitors, ungrounded network relays, or direct grounding system protection devices—expanding its applicability across diverse procurement scenarios.
