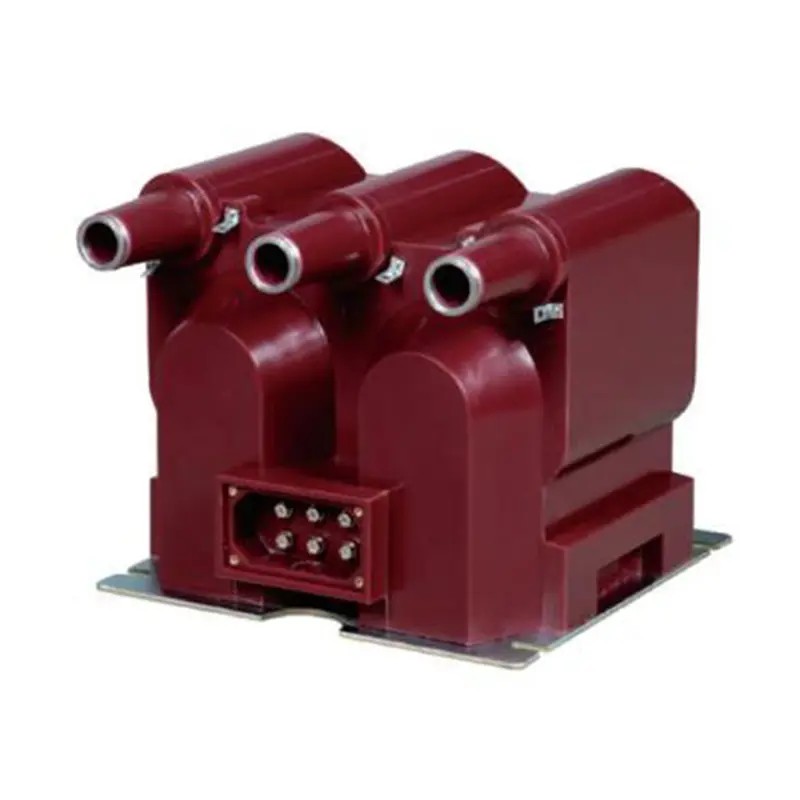

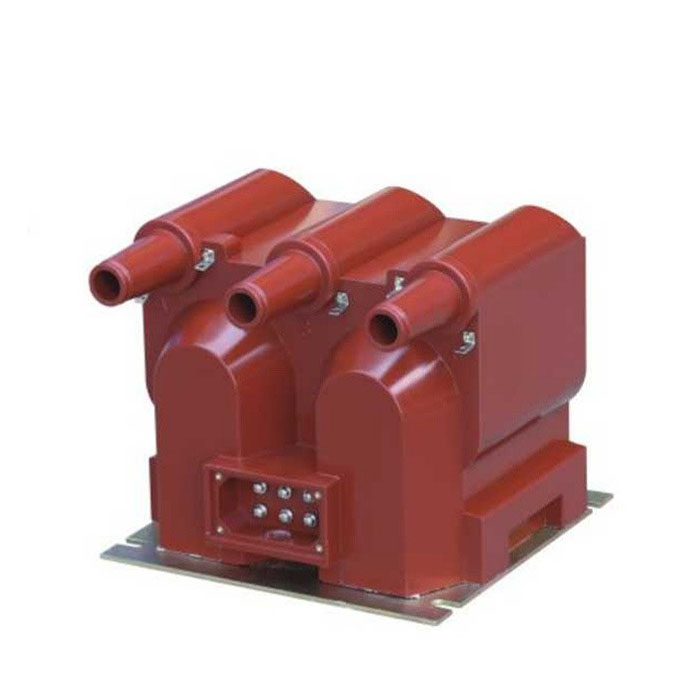

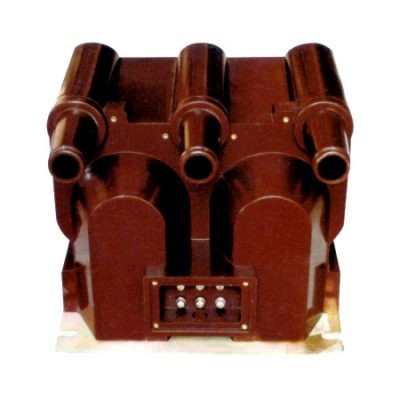

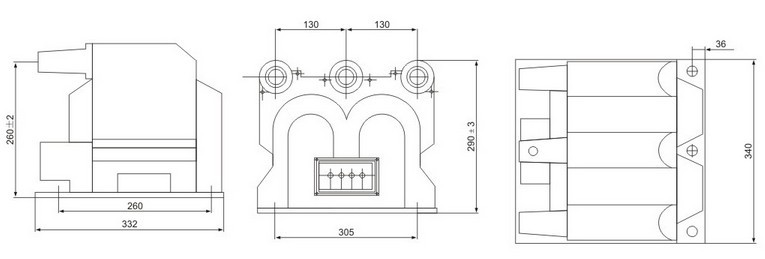

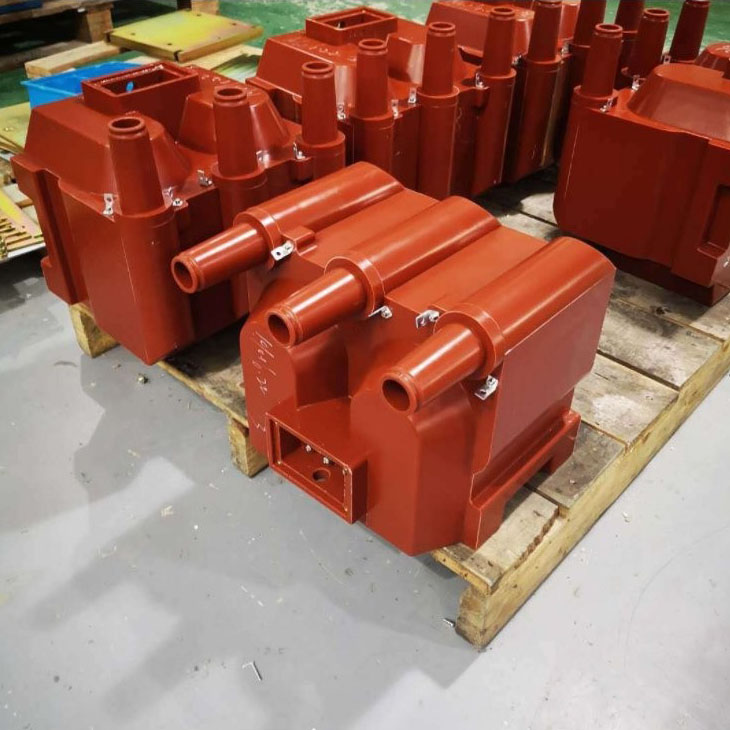

As the professional manufacturer in China, Comewill would like to provide you high quality JSZV12-10R Voltage Transformer. Beyond its structural adaptability, the transformer excels in operational safety and continuity. A standout feature is its hot-swappable fuse design—the primary windings of phases A, B, and C are integrated with short-circuit protection fuses that can be replaced via the secondary terminal without interrupting system operation.
The JSZV12-10R is designed to adapt to varied on-site conditions. It supports a standard three-phase "V" type wiring configuration and can be conveniently disassembled into two independent single-phase units, offering flexibility for installation and system design.
The JSZV12-10R Voltage Transformer is purpose-built to meet the rigorous demands of 10kV indoor power systems, combining measurement accuracy with operational reliability.

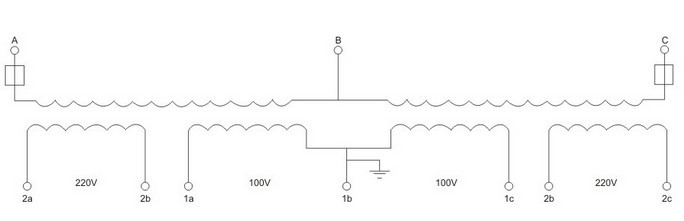

1.Dual-Secondary Output Functionality:
100V output: Designed for high-precision voltage measurement and energy metering.
220V output: Serves as a reliable auxiliary power supply for control mechanisms, reducing the need for additional power components.
2.Superior Insulation and Durability:
Fully sealed with high-grade epoxy resin, offering outstanding moisture resistance, insulation strength, and protection against aging—ideal for complex or high-humidity indoor environments.
Constructed with high-quality cold-rolled silicon steel sheet cores to ensure low losses and stable performance.
3.Comprehensive Safety Protection:
Built-in fuses on all primary windings provide robust short-circuit protection.
Fuse replacement is simple and does not require system shutdown, ensuring maximum uptime.

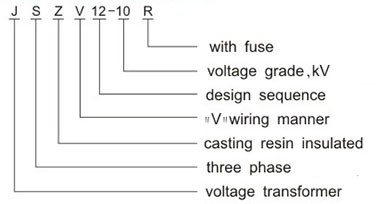

| Code | Meaning | Description |
| J | Voltage Transformer | Identifies the equipment category for immediate recognition. |
| S | Three-Phase | Designed for three-phase power systems to meet multi-circuit measurement and protection needs. |
| Z | Epoxy Resin Cast Insulation | Indicates a fully cast insulation process for enhanced moisture resistance and durability. |
| V | V-Type Wiring | Denotes the wiring configuration, providing installation flexibility. |
| 12-10 | Design & Voltage Rating | 12 is the design series; 10 represents the rated voltage (10kV), precisely matching system requirements. |
| R | With Fuse | Signifies integrated short-circuit protection for enhanced operational safety. |
To ensure long-term stability and reliability, theJSZV12-10R Voltage Transformer is designed to operate within the following environmental parameters. As a professional factory with deep manufacturing expertise, Comewill can also provide customized adaptations for non-standard conditions.
Temperature Range: -5°C to +40°C
Altitude: ≤ 1000m (custom solutions available for high-altitude installations)
Relative Humidity: ≤ 80%
Surrounding Environment: Free from corrosive gases, vapors, or conductive dust (e.g., carbon or metal powder)
Vibration and Impact: Installation site must be free from strong vibrations or mechanical shocks.
form1:technical dataofvoltagetransformerfor measuring
| Type | Rated voltage ratio(V) | Accuracy class and rated output(VA) | Maxoutput(VA) | rated insulation level(kV) | |
|
|
|||||
| class 0.2 | class 0.5 | ||||
| JSZV12-10R | 10000/100 | 20 | 60 |
|
12/42/75 |
|
|
|||||
| JSZV12-10R | 10000/100 | 20 |
|
500 | 12/42/75 |
|
|
|||||
| JSZV12-6R | 6000/100 | 60 |
|
7.2/32/60 | |
| Type | Rated voltage ratio(V) | Accuracy class and rated output(VA) | Maxoutput(VA) | rated insulation level(kV) | |
|
|
|||||
| class 0.2 | class 0.5 | ||||
| JSZV12-10R | 10000/100 | 20 | 60 |
|
12/42/75 |
|
|
|||||
| JSZV12-10R | 10000/100 | 20 |
|
500 | 12/42/75 |
|
|
|||||
| JSZV12-6R | 6000/100 | 60 |
|
7.2/32/60 | |
form2:technical dalaofvoltagetransformer forcircuit breakeroperatingpower
| Type | Rated voltageratio(V) | Accuracy class andrated output(VA) | Short time Maxoutput power(VA) | rated insulationlevel(kV) |
| JSZV12-10R | 10/0.1/0.22 | 0.2 30 | 600 | 12/42/75 |
| JSZV12-10R | 10/0.1/0.1 | 0.2 20 | 2×400 | 12/42/75 |
| JSZV12-6R | 6/0.1/0.1 | 7.2/32/60 | ||
| JSZV12-3R | 3/0.1/0.1 | 0.2 20 | 3.6/25/40 | |
| JSZV12-10R | 10/0.1 | 0.2 20 | 500 | 12/42/75 |
| JSZV12-6R | 6/0.1 | 7.2/32/60 |
Notes: For circuit breaker operating power supply, withstand voltage shall not exceed 15%
