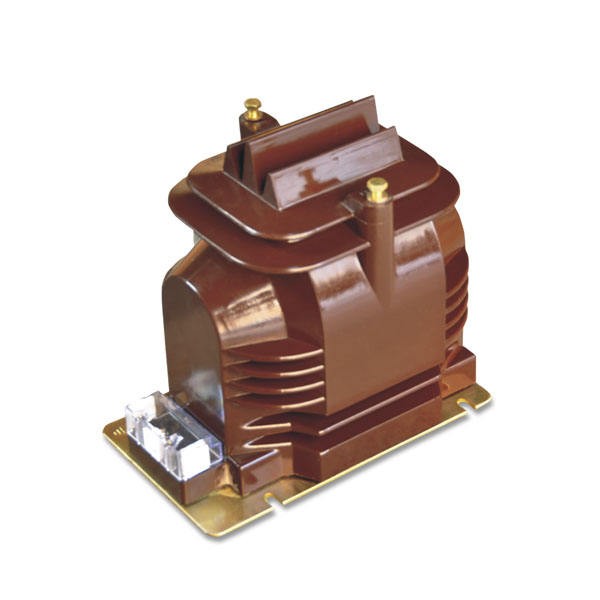

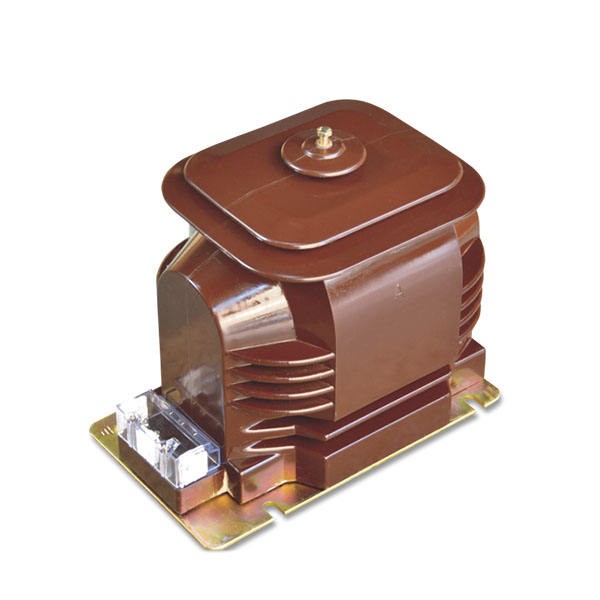

JDZ(X)11-20/225 Voltage Transformer

As a professional manufacturer in China, Comewill would like to provide you quality JDZ(X)11-20/225 Voltage Transformer. Whether it is energy metering, voltage monitoring, or relay protection work, this transformer is capable of stable and competent operation. The product is manufactured in accordance with the IEC60044-2 standard throughout the entire process, and its performance and safety meet international standards, so there is no need to worry about mileage compliance issues.

Parameter

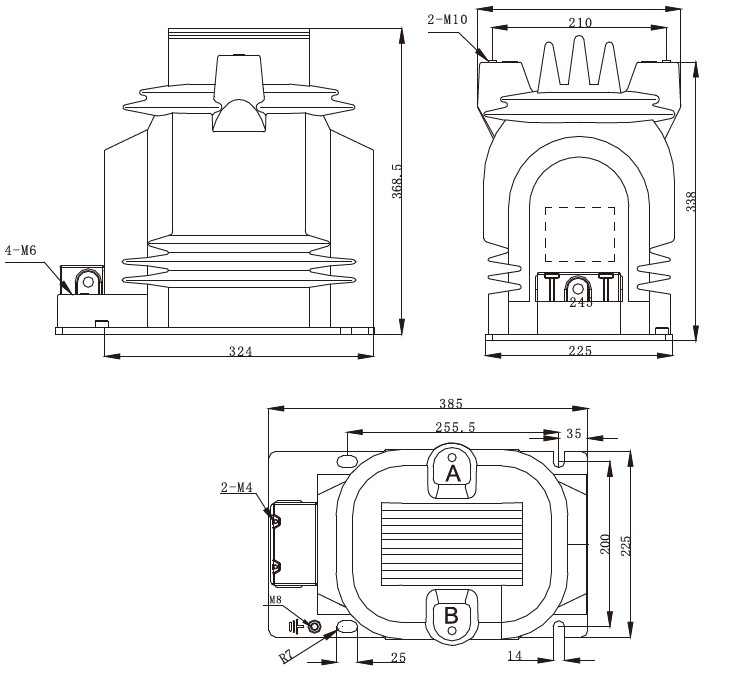

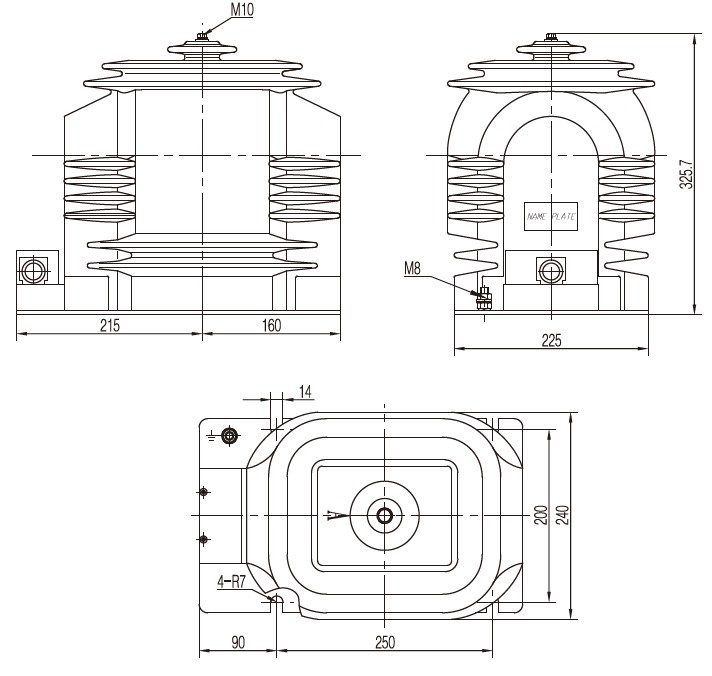

Outline Dimension

Why Choose JDZX11 Type Voltage Transformer?

Welcome (Wenzhou) Electric Co., Ltd.'s JDZ(X)11-20/225 Voltage Transformer is highly recognized in the industry for its solid design and high precision. Its core advantages are as follows, which are easy to understand and practical:
High precision: The transformation ratio of JDZX11 is particularly accurate, which can ensure accuracy in measuring data and metering in the power system without delaying subsequent work;
Especially durable: able to withstand various harsh environments, whether for indoor or outdoor use, it can work stably and be used with peace of mind;
Compact size: Not large in size, easy to install, even in places with limited space, and will not affect performance;
Safe and secure: Equipped with essential safety protection functions, it can prevent overvoltage problems, protect both the transformer itself and other connected devices, and avoid damage.

Application

Welcome (Wenzhou) Electric Co., Ltd's JDZX11 voltage transformer (including similar voltage transformers) can be used in many places in the power system, with specific scenarios as follows:
Electricity metering: It is used to monitor voltage levels in substations and power grids to ensure stable power supply. Whether it is daily metering or power grid regulation, it is indispensable;
Relay protection: It is the core component of the relay protection system, which can accurately detect faults, timely protect the power system, and avoid the expansion of faults;
Control circuit: It provides voltage to the control circuit, and the safe operation of switchgear and other electrical equipment relies entirely on its support;
Testing and Calibration: Used in laboratories and testing environments to calibrate measuring instruments, ensuring that the data measured by the instruments is accurate and reliable for subsequent testing.
The JDZX11 voltage transformer plays a particularly critical role in modern power systems, ensuring accurate voltage measurement and effective system protection. Whether it is designing the power system, daily operation, or post maintenance, understanding its functions, advantages, and application scenarios is essential for smooth work.

Working conditions

Welcome (Wenzhou) Electric Co., Ltd.'s JDZX11 voltage transformer. To ensure its stable and problem free operation, it is important to pay close attention to the following usage conditions and precautions:
1.Environmental requirements for use
Altitude: The maximum height cannot exceed 1500 meters. If used in high-altitude areas, the specific altitude must be specified in advance when placing an order;
Environmental temperature: It is commonly used between -5 ℃ and 40 ℃. If there are special temperature requirements, they must also be clearly noted in the order;
Relative humidity: The humidity should not exceed 85%, as excessively humid environments can easily affect insulation;
Installation site: Keep away from gases, vapors, chemical deposits, dust and dirt that can severely corrode the insulation, and avoid flammable and explosive media. The site should also avoid severe vibrations and bumps, otherwise it may damage the equipment.
2.Precautions for use
When a current is passed through the primary side of a current transformer, the secondary winding must not be open circuited! Once an open circuit occurs, it will generate high voltage, which not only affects product performance but may also pose safety risks;
The secondary winding of the voltage transformer must not be short circuited! Short circuit will directly burn out the transformer, causing equipment failure;
The repeated power frequency withstand voltage test of a winding must be conducted under the condition of 80% of the specified test voltage, without overvoltage testing to avoid damaging the insulation.
