Comewill provides stable High Voltage and Medium Voltage Switchgear designed for safe control, protection, and isolation of electrical power systems. As a professional Switchgear manufacturer in China, Comewill offers you high quality switchgear products made in China with stable performance, in stock availability, and options for wholesale or customized orders. These High Voltage and Medium Voltage Switchgear systems are suitable for industrial plants, substations, and power distribution networks to manage electrical energy efficiently while ensuring operational safety and system stability.
High Voltage and Medium Voltage Switchgear refers to electrical equipment used to control, protect, and isolate power circuits operating in medium and high voltage ranges. Switchgear integrates components such as circuit breakers, protection relays, busbars, and insulation systems to ensure reliable operation of electrical networks.
In a distribution system, High Voltage and Medium Voltage Switchgear functions as the central control point that manages the flow of electricity. It disconnects faulty circuits, protects equipment from overloads or short circuits, and ensures safe maintenance through isolation mechanisms.
Electrical switchgear is generally categorized according to voltage level. Understanding these classifications helps determine where High Voltage and Medium Voltage Switchgear is applied in a power system.
Voltage range: typically 1 kV to 36 kV
Applications: industrial plants, commercial facilities, renewable energy systems, and regional substations
Common configurations: metal-enclosed switchgear, vacuum circuit breaker systems
Voltage range: typically above 35 kV
Applications: transmission networks, large substations, power plants
Typical equipment: gas-insulated switchgear (GIS) and air-insulated switchgear (AIS)
Both types of High Voltage and Medium Voltage Switchgear are designed to handle fault protection, system switching, and safe isolation within electrical networks.
| FEATURE | LV SWITCHGEAR | MV SWITCHGEAR | HV SWITCHGEAR |
| Insulation | Air-insulated | Air/SF6 gas/vacuum insulation | SF6 gas/composite insulation/oil insulation |
| Circuit Breaker | MCCB, MCB | Vacuum/SF6 circuit breakers | SF6 breakers, GIS (Gas-Insulated Switchgear) |
| Design | Drawer-type/fixed, modular | Metal-clad (e.g., KYN28), compartmentalized | Outdoor installation, highly integrated GIS |
| Protection | Overload, short-circuit, leakage | Relay protection, arc flash detection | Differential protection, auto-reclosing |

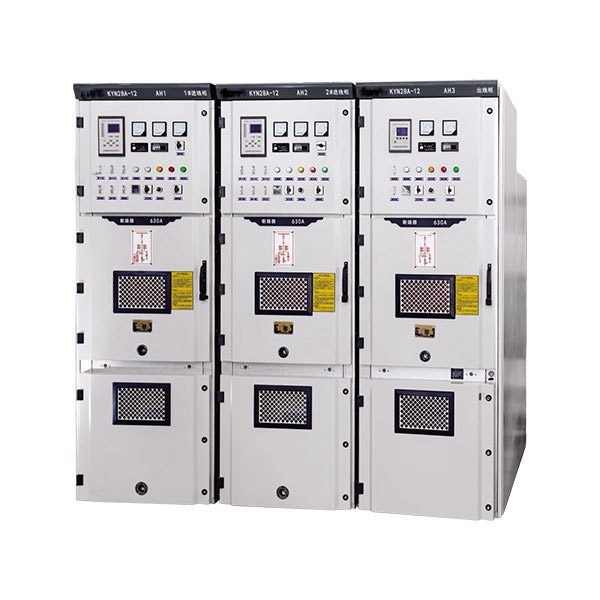

| Common Models | GCS, MNS, GGD | KYN28, XGN15, UniGear ZS1 | GIS (e.g., ABB ELK-4), AIS (Air-Insulated Switchgear) |
Comewill High Voltage and Medium Voltage Switchgear incorporates several structural and functional characteristics that support reliable system operation:
1. Insulation Systems
Different insulation methods such as air insulation, vacuum interruption, and SF6 gas insulation are used depending on the voltage level and installation environment.
2. Circuit Breaker Technology
Medium voltage systems commonly use vacuum circuit breakers, while high voltage systems often use SF6 circuit breakers or GIS technology to manage high electrical stress.

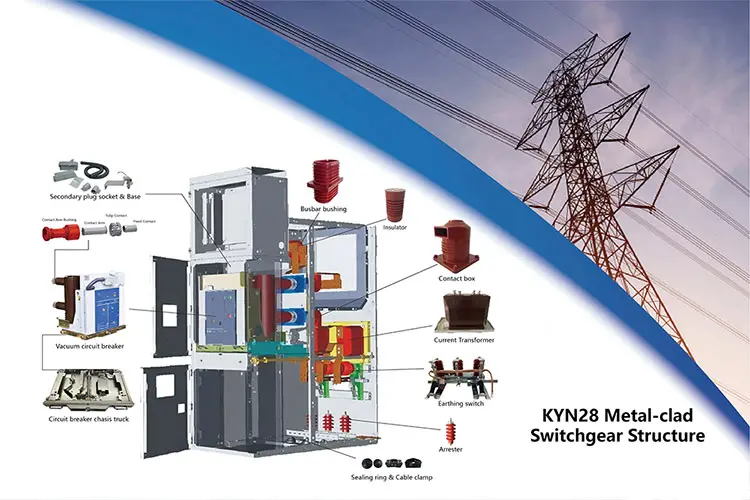

3. Compartmentalized Design
Metal-clad and metal-enclosed structures separate key components such as busbars, breakers, and control circuits, improving safety during operation and maintenance.
4. Protection and Monitoring
Integrated relay protection systems detect faults such as overload, short circuit, or abnormal voltage conditions and automatically isolate affected circuits.
These features allow High Voltage and Medium Voltage Switchgear to operate safely in complex power distribution environments.

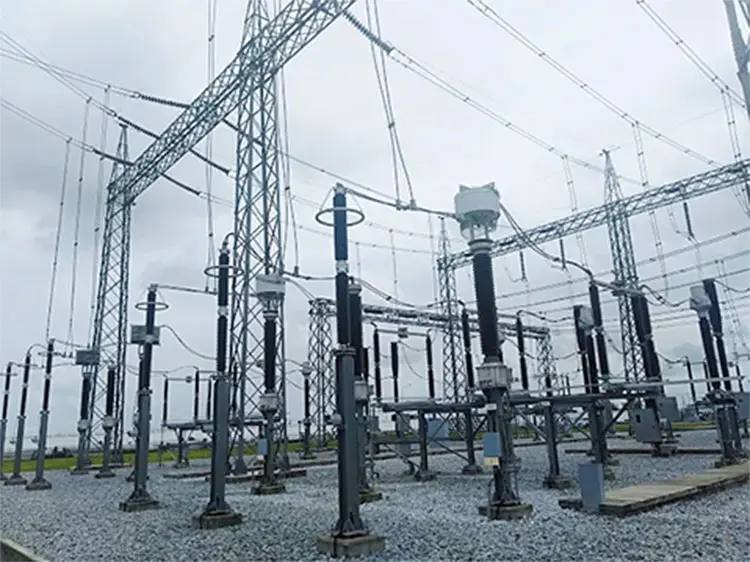

High Voltage and Medium Voltage Switchgear is widely used in electrical infrastructure and industrial facilities. Common applications include:
Electrical substations and transmission networks
Industrial manufacturing plants
Renewable energy grid connections such as wind and solar farms
Commercial power distribution systems
Utility power networks
As an experienced supplier, Comewill supports project procurement with wholesale, customized, and in stock switchgear products designed for different voltage levels and installation requirements.
Q1: What is the difference between medium and high voltage switchgear?
Medium voltage switchgear typically operates between 1 kV and 36 kV, while high voltage switchgear is designed for systems above 36 kV, such as transmission networks and power plants.
Q2: Why is switchgear important in power systems?
Switchgear protects electrical equipment by isolating faults, controlling current flow, and enabling safe maintenance within electrical networks.
Q3: Are these products available for bulk purchase?
Yes. Comewill supplies High Voltage and Medium Voltage Switchgear for wholesale orders and maintains certain models in stock for faster delivery.
If you’ve got questions, or need help picking gear for your project (bulk orders, custom setups, whatever you need), please contact us. We’ll walk you through it—no fancy jargon, just straight talk about what’ll work for you.
