Comewill, a professional manufacturer and supplier from China, provides high-quality Voltage Transformer systems that are in stock and available for customized or wholesale orders. Our Voltage Transformers convert high primary voltages to safe secondary levels for measurement and protection, enabling accurate monitoring, control, and protection of power systems. With stable performance, compact design, and reliable insulation, Comewill Voltage Transformers ensure safe and efficient operation in industrial, utility, and commercial applications, making them a trusted choice from a China-based factory.

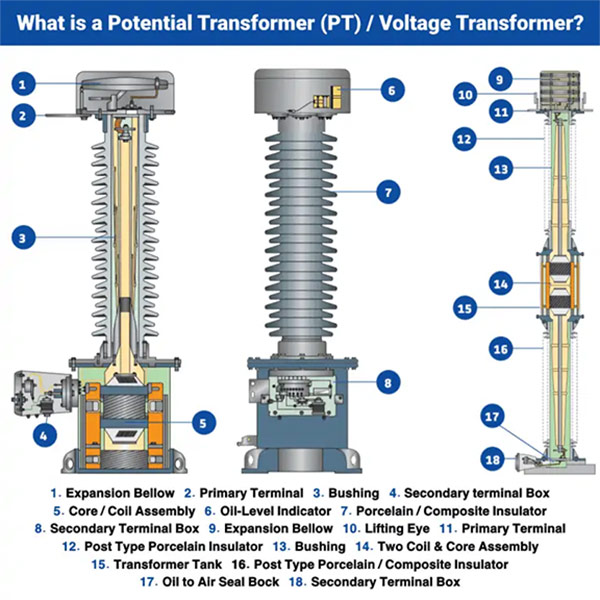

A Voltage Transformer (PT) is an instrument designed to proportionally reduce high voltages to safe, measurable levels. Unlike power transformers, which handle large energy transfers, Voltage Transformers have small capacity—typically only a few to tens of volt-amperes. The primary winding is connected in parallel with the high-voltage line, while the secondary winding powers instruments such as voltmeters, energy meters, and relay protection devices. This allows operators and devices to safely monitor voltage and respond to faults without direct exposure to high-voltage circuits.
Voltage Transformers operate on the principle of electromagnetic induction. The voltage ratio between the primary and secondary winding determines the reduction from high-voltage lines to safe secondary voltages. Capacitive Voltage Transformers (CVTs) use series capacitors combined with electromagnetic transformers to provide voltage measurement and relay protection signals, while electronic voltage transformers employ sensors and converters for proportional output. By providing accurate voltage signals, Voltage Transformers support real-time monitoring, energy measurement, and fault detection in power systems.
Voltage Transformers offer safe isolation, precise measurement, and high efficiency:
Electrical Isolation: Protects operators and secondary devices from high-voltage exposure.
Accurate Measurement: Provides stable voltage signals for meters and protection relays.
Compact and Efficient: Low capacity, minimal energy loss, and high operational efficiency.
Reliable Structure: Iron core and winding design with fuses and grounded secondary ensure safety.
Versatility: Capacitive types allow dual-use as measurement devices and carrier communication couplers, with broad frequency response for modern protection systems.
Voltage Transformers are classified by installation, phase, winding, insulation, and working principle:
By Installation: Indoor (≤35k) and outdoo (35kV).
By Phase: Single-phase or three-phase configurations.
By Winding: Double winding or three winding (with auxiliary secondary for grounding protection).
By Insulation: Dry-type, pouring-type, oil-immersed, and inflatable (SF6) types.
By Working Principle: Electromagnetic, capacitive (CVT), and electronic voltage transformers.
The choice depends on voltage level, application, and installation environment, balancing safety, measurement accuracy, and maintenance requirements.
Comewill Voltage Transformers are widely applied in:
Power System Monitoring: Safe voltage measurement and protection in substations and transmission lines.
Relay Protection Devices: Supplying accurate voltage signals to protect transformers, motors, and other critical equipment.
Renewable Energy: Voltage monitoring in solar and wind power systems.
Industrial Automation: Supporting voltage measurement and control for machinery and production lines.
As a China-based manufacturer and supplier, Comewill provides wholesale, customized, and in stock Voltage Transformers with verified quality standards. Buyers sourcing Voltage Transformers from Comewill can rely on safe, precise, and efficient performance for medium- and high-voltage systems.
