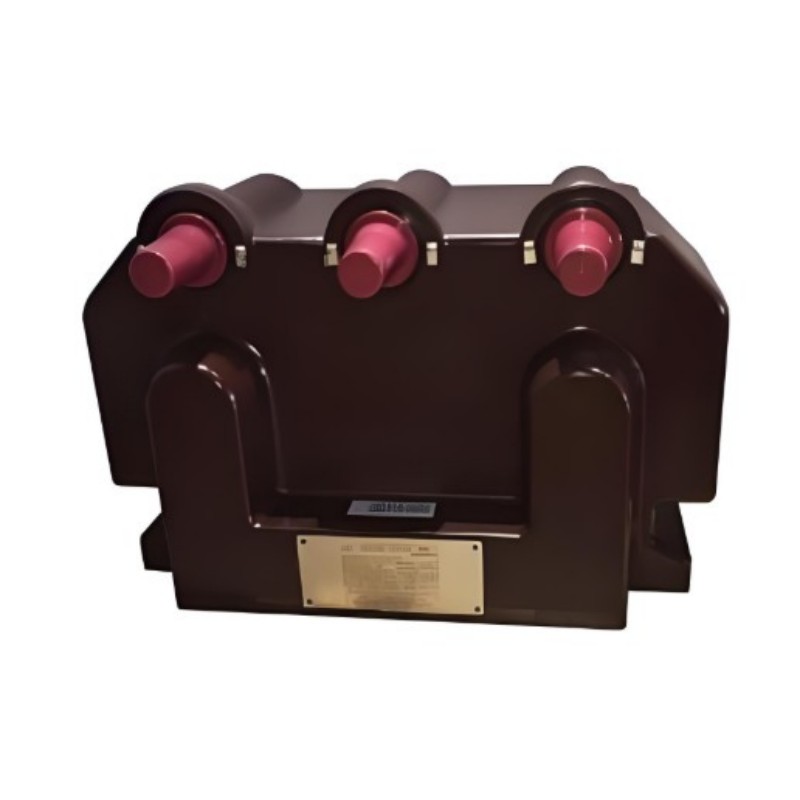

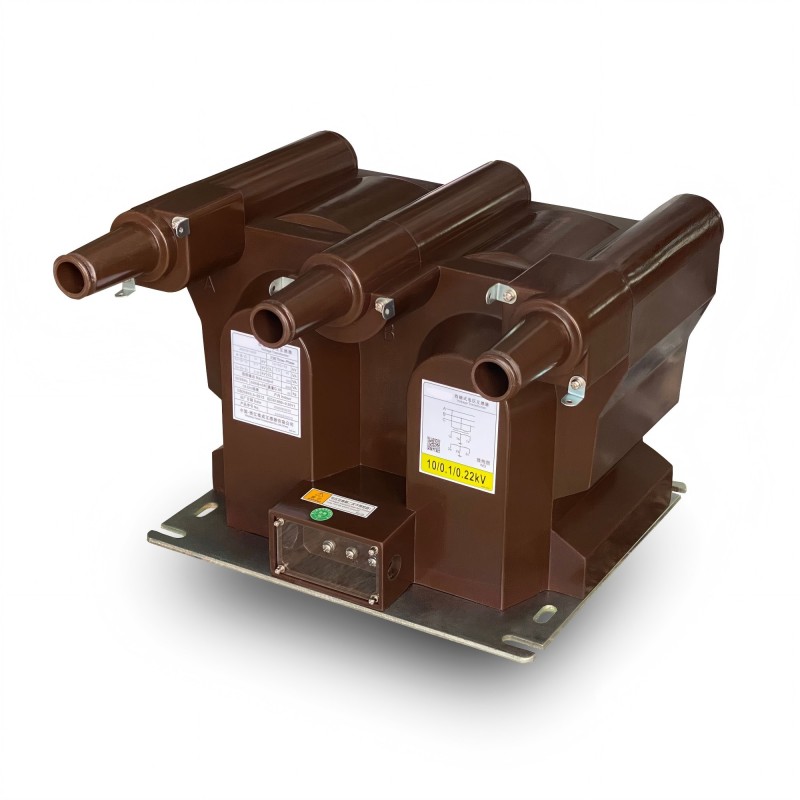

JSZV18-24R Voltage Transformer

With years of experience in production JSZV18-24R Voltage Transformer, Welcome (Wenzhou) Electric Co., Ltd. can supply a wide range of 0.72-40.5kV Indoor Voltage Transformer. Our this transformer has a structure design and application scenarios that are particularly tailored to the requirements of medium voltage systems：

This transformer adopts a fully enclosed epoxy resin casting insulation structure, which wraps the primary winding, secondary winding, and circular iron core inside, and has the ability to resist pollution and moisture directly. The product is also equipped with an elbow shaped plug, which not only improves environmental sealing, but also makes installation easier, and on-site wiring does not require much effort.

The quality JSZV18-24R Voltage Transformer is specifically designed for indoor scenarios where the neutral point is not grounded. Whether it is measuring current, calculating electrical energy, or doing relay protection, it can be of great use. Capable of adapting to frequencies of 50Hz or 60Hz, capable of withstanding up to 24kV equipment voltage, and conducting voltage monitoring in medium voltage power systems with stability and accuracy, fully meeting on-site requirements.

Main technical parameter

1.Rated primary voltage: optional 20kV or 22kV, suitable for different voltage requirements of medium voltage systems;
2.Rated secondary voltage: There are three specifications: 100V, 100/100V, and 100/220V, which can be matched with different secondary equipment wiring;
3.Rated voltage of residual voltage winding: covering 100/√ 3V, 110/√ 3V, 115/√ 3V, 120/√ 3V, meeting special requirements such as grounding protection;
4.Load power factor: cos Φ=0.8 (hysteresis), consistent with the load characteristics of conventional secondary circuits;
5.Execution standards: Either follow IEC60044-2:2003 or IEC61869-1&3, with performance and quality benchmarked against international standards.

Other technical parameters pls see as follow:

Remarks: Upon request, we are happy to supply transformers that meet other standards or have non-standard technical specifications.

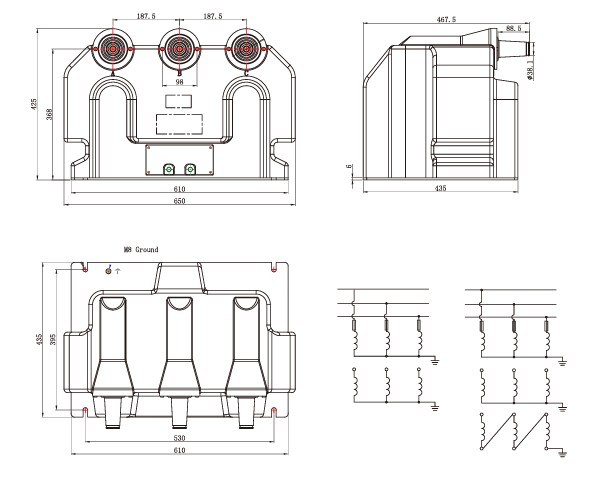

Outline drawing

Key Features

Welcome (Wenzhou) Electric Co., Ltd's JSZV18-24R Voltage Transformer with its solid performance advantages, is suitable for medium voltage system requirements. The specific highlights are as follows:

1.Wide Voltage Adaptability
Rated at 24kV, JSZV18-24R Voltage Transformer handles significant voltage fluctuations, ensuring stable monitoring and accurate signal output during transients or system regulation.

2.Fast Response
Quickly captures voltage changes and instantly transmits signals to protection devices, enabling rapid fault clearing and enhanced system reliability.

3.Low Hysteresis Loss
Advanced magnetic materials and optimized design reduce energy loss, improve efficiency, minimize heat generation, and extend service life.

Whether it is a scenario with frequent voltage fluctuations or a medium voltage system with requirements for response speed and energy consumption, this transformer can hold on. If you want to know the specific adaptation details of the scenario, just say it directly!
