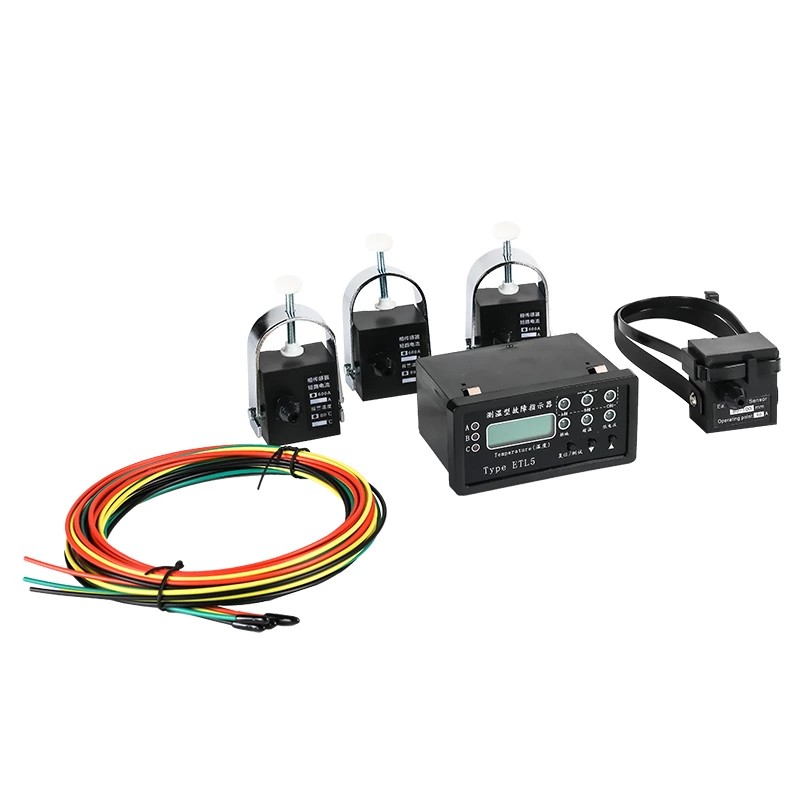

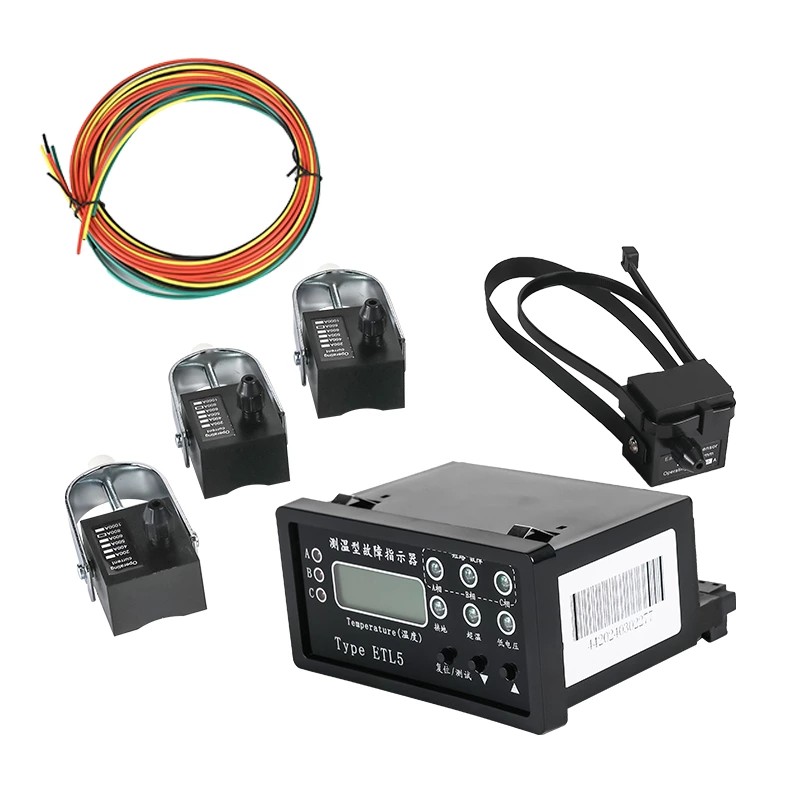

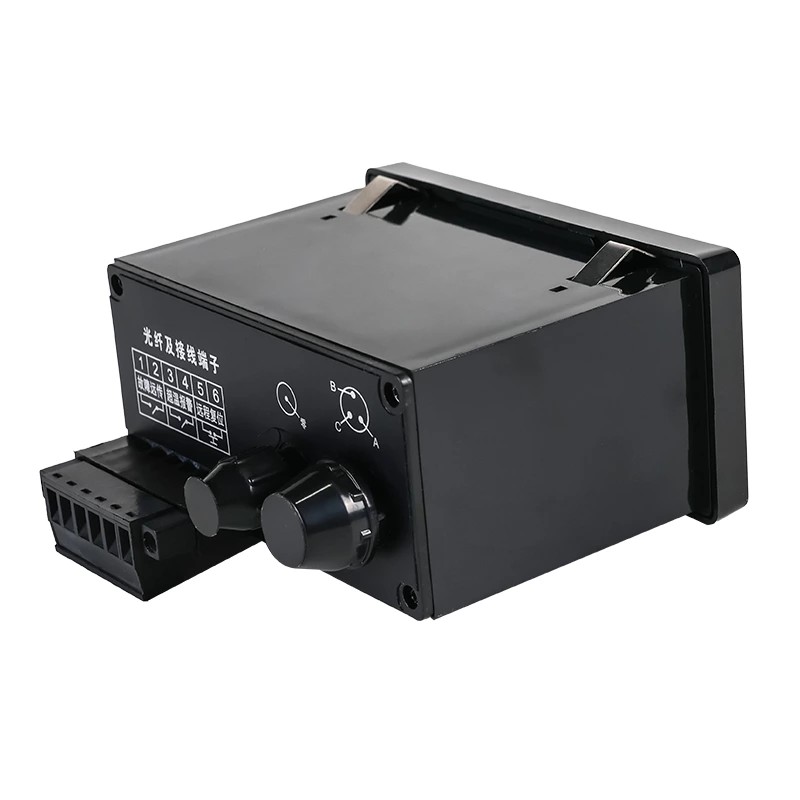

The biggest job of Comewill factory's TL-5 Fiber Optic Temperature Fault Monitor for 10kV Switchgear is to catch dangerous faults before they spiral — and its short-circuit and grounding alarm functions do that perfectly, covering the two most common high-voltage line issues we deal with.
Starting with short-circuit current alarm indication: The built-in short-circuit current sensor keeps an eye on high-voltage cables 24/7 while they’re running. Here’s the thing that makes it flexible for different sites — the short-circuit current set value can be customized before the device leaves the factory, based on exactly what the user needs. Once the line current hits or goes over that set value, the sensor shoots an alarm signal to the main unit via optical fiber. Optical fiber’s a must here — it’s super stable and doesn’t get messed up by the electrical noise around switchgear. When the main unit gets the signal, it not only triggers a clear alarm indication on its panel (so we can see it at a glance during patrols) but also can send the signal straight to the main control system. That means both on-site teams and the office get the alert at the same time, cutting down response time big time.
Then there’s the grounding alarm indication — a non-negotiable for safety. The system uses dedicated grounding sensors to monitor the grounding current of the user’s cables. Just like the short-circuit set value, the grounding alarm trigger value can be tweaked to the user’s requirements before delivery. When the current in the grounding circuit hits or exceeds that threshold, the grounding sensor sends an alarm to the main unit. The main unit then kicks off the corresponding alarm indication, and can also forward the signal to the main control system. This is a lifesaver in busy areas like urban distribution networks or industrial sites, where grounding faults can lead to electric shock risks or equipment damage if not caught fast.
After an alarm goes off, the last thing we need is a clunky reset process. This TL-5 Fiber Optic Temperature Fault Monitor for 10kV Switchgear offers two reset modes — automatic and manual — that fit whatever situation we’re in, saving us tons of unnecessary trips.
Automatic reset system: Let’s be real, maintenance teams are almost always swamped. If the device alarms but we can’t get around to manually resetting it within 8 hours, it resets itself automatically. This is a game-changer for remote sites — you don’t have to drive hours just to hit a reset button after a fault’s already fixed. It takes the hassle out of follow-up work and keeps the device ready for the next potential issue.

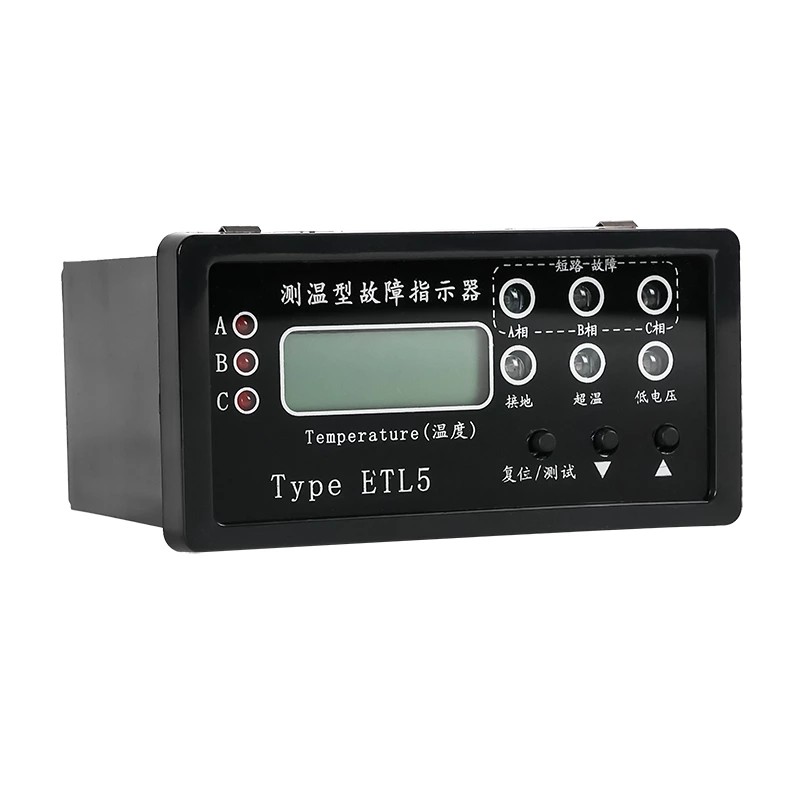

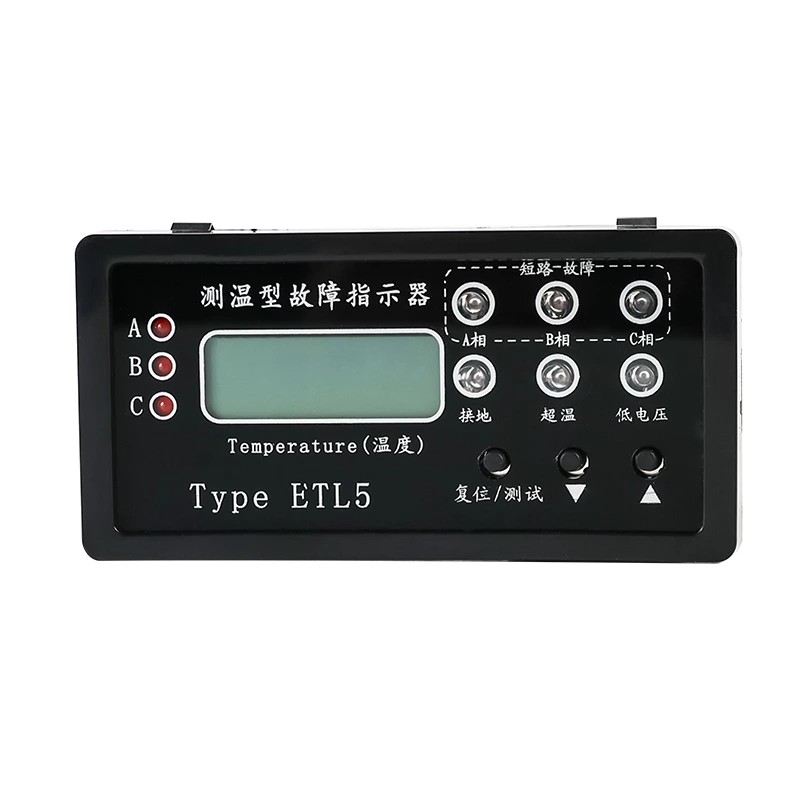

Manual reset: When we fix the fault quickly and want to clear the alarm right away, it’s super simple. Just press the clear button on the main unit panel, and the alarm’s gone. No fancy steps, no extra tools — perfect for when we’re working on a tight schedule and need to keep the system status clear to avoid confusion with new alarms.
A device’s only useful if it works when you need it. That’s why the self-test function and low battery alarm are such crucial additions — they make sure the device is always ready to perform, no surprises.
Testing (self-check) function: Checking if the TL-5 Fiber Optic Temperature Fault Monitor for 10kV Switchgear is in good shape takes seconds. Just press and hold the clear button on the panel for 2 seconds, and it goes into self-check mode. All the indicator lights on the panel will flash — that tells us right away that every function is working normally. We do this quick check before starting patrols or after severe weather, and it saves us from relying on a faulty device. No complicated testing gear needed, just a simple button press — ideal for on-site efficiency.
Low battery alarm (Low Voltage): The main unit runs on battery power, and this function keeps us from being caught off guard by a dead battery. When the battery voltage drops below the normal operating level, the device triggers a low battery alarm. This reminds us to replace the battery in time. If the battery dies, the device can’t detect or indicate faults — this alarm avoids that risk, making sure the device is always on standby to protect the line. It’s a small feature, but it prevents big headaches down the line.
What makes Welcome (Wenzhou) Electric Co., Ltd’s switchgear monitoring device stand out is how well it fits real-world maintenance needs. The customizable alarm set values work for different site requirements, the dual reset modes save time on remote and busy jobs, and the self-test and low battery functions ensure reliability. Whether we’re using TL-5 Fiber Optic Temperature Fault Monitor for 10kV Switchgear in urban cable networks, industrial parks, or remote rural sites, every function solves a specific problem we face. It’s not overcomplicated — just a straightforward, reliable tool that helps us keep the power running safely and efficiently.
All in all, Welcome (Wenzhou) Electric Co., Ltd’s T5 fluorescent switchgear lighting component stands out for its perfect scene fit, great light source performance, thoughtful practical design, and strict quality control. It’s not just a simple lighting tool — it’s a supporting part that boosts on-site work safety and efficiency. For high-voltage switch cabinets and distribution cabinets that need long-term stable, safe, and efficient operation, this component is absolutely indispensable. Whether you’re installing new cabinets or replacing old equipment, it’s a trustworthy choice for anyone in the electrical distribution industry.
| Short circuit alarm | 50~1000A(factory adjustable)Error±5%,factory output:600A |
| Short circuit overcurrent response time | 0.03-5S(factory adjustable),factory:0.25 |
| Grounding alarm | 10-100A(factory adjustable)Error±10%,factory output:20A |
| Ground overcurrent response time | 0.03S~55(factory adjustable),factory:0.25 |
| Over temperature alarm | 20~80℃(factory adjustable)Error±1℃,ex factory:80℃ |

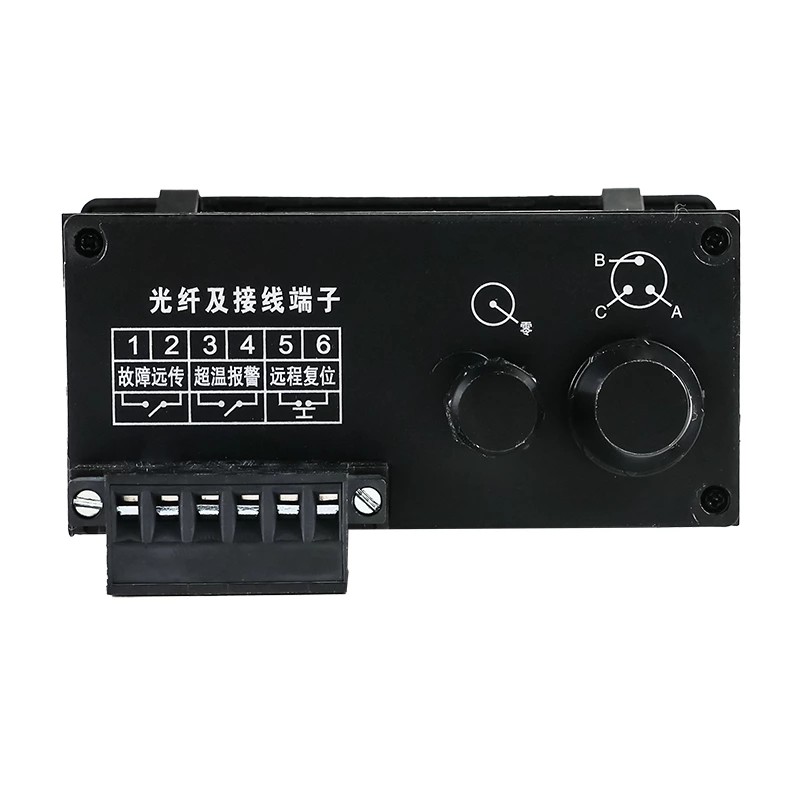

| Dry contact capacityfor over temperature tripping | 230V/AC-0.1A,30V/DC-1A |
| Short circuit grounding remote relay | 230V/AC-0.1A,30V/DC-1A |
| Over temperature alarm | Relay outputs 3 cycles (2 seconds each)Set to 750mS,reset to 1250mS) |
| Automatic reset time | 75~45h (factory adjustable),factory time:8h |
| Standby current | ≤5μA |
| Voltage level | Below 20KV |
| Ability to withstand current | 31.5KA/4S |
| Static power consumption | ≤10μw |
| Action count | ≥4000 times |
| Battery capacity | 3.6 Lithium battery 2Ah |
| Reminder protection level | Host IP40,sensor Ip65 |
| work environment | -25℃~+75℃ |
| ≤95%RH(without condensation) | |
| ≤1000 meters |
