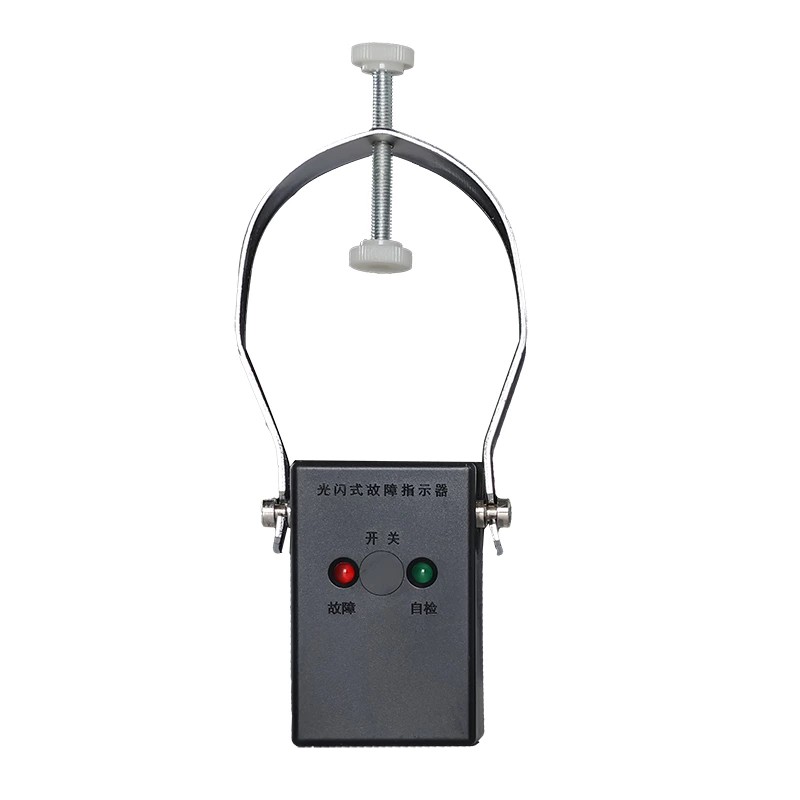

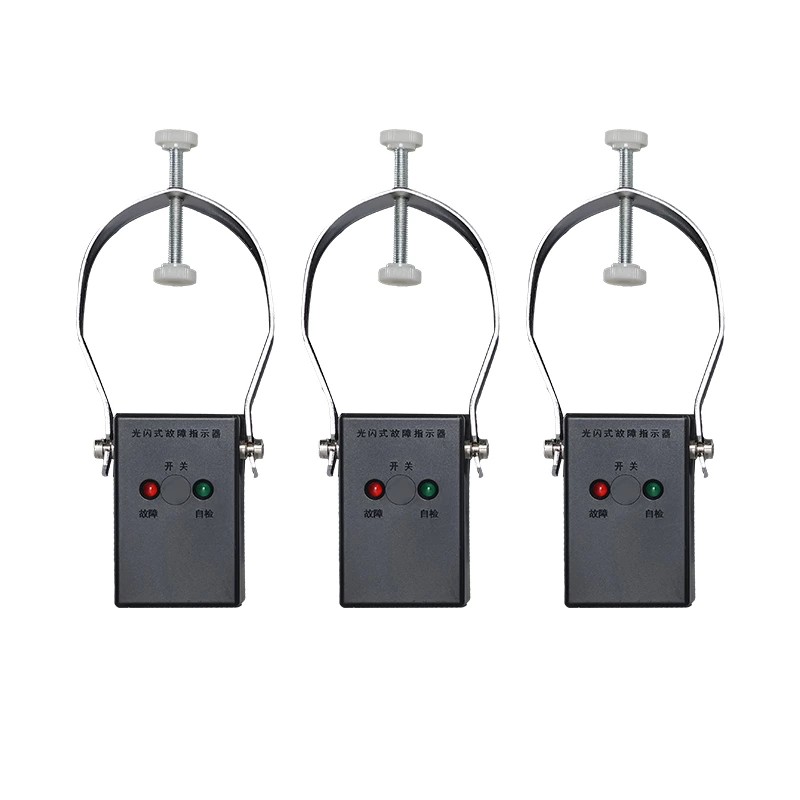

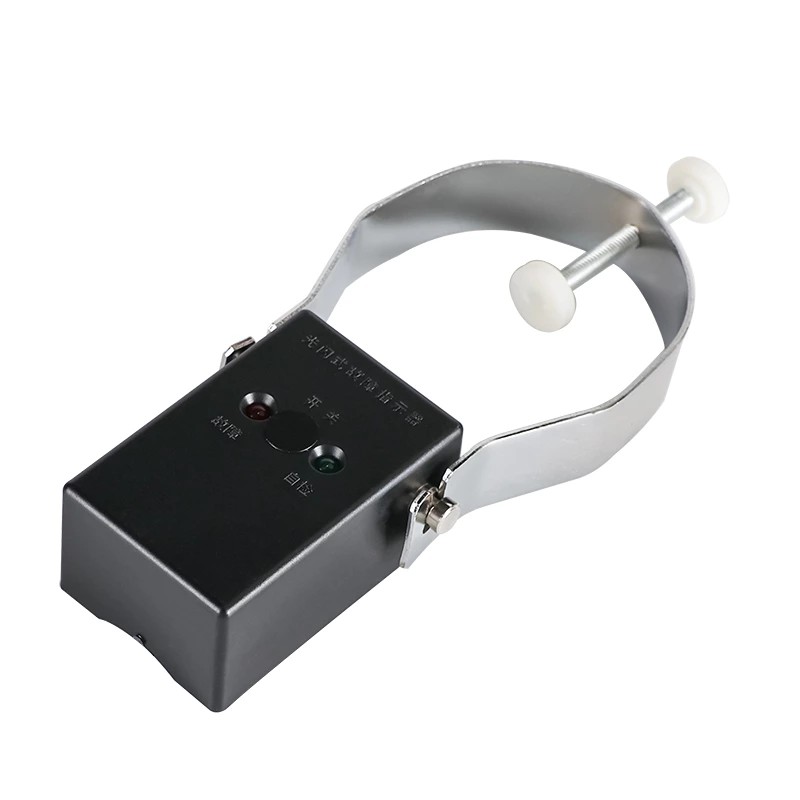

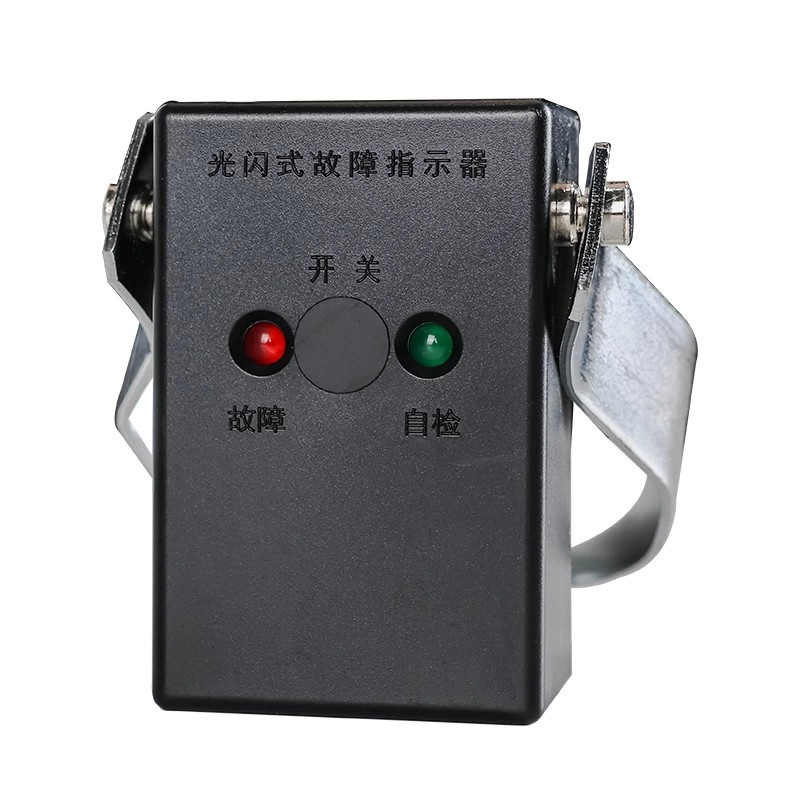

The Comewill Flashing line fault indicator EKL2 is designed to help maintenance teams quickly identify short-circuit faults in cable distribution systems. By detecting sudden current changes and displaying a clear flashing red signal, the device allows technicians to locate fault sections efficiently during inspections. As a China manufacturer focused on power distribution monitoring equipment, Comewill develops the Flashing line fault indicator EKL2 for reliable fault indication in cable junction boxes, ring network cabinets, and other distribution equipment.
The Flashing line fault indicator EKL2 is used to detect and display short-circuit faults in cable distribution equipment such as cable junction boxes and ring network switchgear.
When a short-circuit current flows through the monitored cable, the indicator detects the current change and activates a flashing red light to mark the fault condition. Maintenance teams can easily identify the faulty section during inspections by observing the indicator status.
The Comewill Flashing line fault indicator EKL2 simplifies field fault detection by providing a clear visual signal without requiring complex diagnostic equipment.
The Flashing line fault indicator EKL2 integrates microchip-based processing for accurate fault recognition.
Key functional features include:
Current detection: Identifies short-circuit current flowing through the cable.
Signal processing: Internal microchips analyze the detected signal and record the fault status.
Status indication:
Green flashing light – normal circuit condition
Red flashing light – short-circuit fault detected
Photosensitive switch: A transparent sensor that activates the status display when exposed to light.
This design allows technicians to easily check equipment status during inspection using a flashlight or natural light.
The Comewill Flashing line fault indicator EKL2 is designed for long-term operation with minimal maintenance.
Main operational characteristics include:
Built-in 2000mAh lithium battery
Typical service life of 8–10 years
Low power consumption microchip control
Automatic reset function after the preset reset time
During the automatic reset period, the red light flashes when illuminated and records the fault condition. Once the reset time passes, the device automatically clears the stored fault record and returns to monitoring mode.
The Flashing line fault indicator EKL2 is suitable for installation in several cable distribution environments:
Cable Junction Boxes
Detects short-circuit faults in cable connection points.
Ring Network Switchgear
Provides visual fault indication within ring main unit systems.
Underground Cable Distribution Systems
Helps maintenance teams quickly identify faulty cable sections in urban power networks.

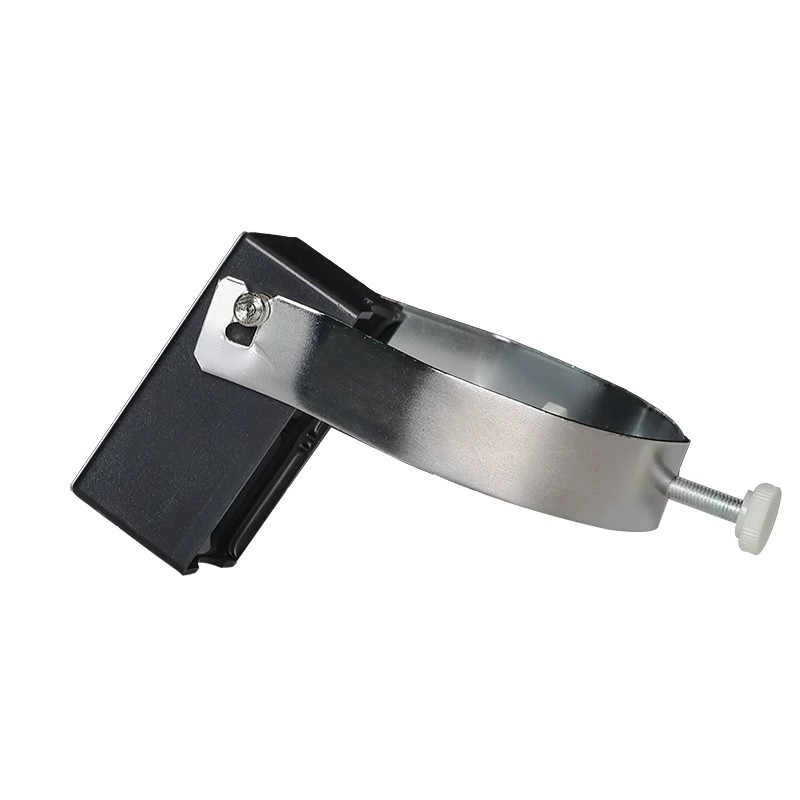

The indicator supports cable installation with a card-line structure, suitable for cable diameters up to 35 mm with outer sheath.
As a China manufacturer and factory, Comewill produces cable fault monitoring devices for power distribution applications. The Flashing line fault indicator EKL2 is available for engineering projects and equipment integration.
Supply capabilities include:
Stable production and wholesale supply
Technical parameter customized options
Quality control during manufacturing and assembly
The Comewill Flashing line fault indicator EKL2 is supplied globally as a China supplier of power distribution monitoring equipment made in China.
| Short circuit action current | ≥800A(error±10%,adjustable according to demand) | |
| Short circuit action response tim | 0.02s≤T≤4se | |
| Working power supply | Built in 2000mAh lithium battery with a lifespan of 8-10 years and a voltage of 3V | |
| Automatic reset time | 12 hours(optional,users can confirm at the time of ordering) | |
| Card line range | Cable diameter(with outer sheath)≤φ35mm | |
| workenvironment | temperature | -40℃~+85℃ |
| humidity | ≤90%RH(without condensation) | |
| altitude | ≤1000m | |
