Article Summary: The Side-mounted Indoor High Voltage Vacuum Circuit Breaker is a critical component in modern electrical distribution systems, ensuring safe, efficient, and stable interruption of high-voltage circuits. This article explores its structure, working principles, technical parameters, applications, and advantages. It also highlights how Comewill delivers reliable and high-performance solutions in the field of vacuum circuit breaker technology, helping industries improve electrical safety and operational efficiency.
The Side-mounted Indoor High Voltage Vacuum Circuit Breaker is a modern electrical protection device widely used in medium and high-voltage indoor power distribution systems. It is designed to interrupt fault currents safely using vacuum arc extinction technology. Compared with traditional air or oil circuit breakers, this type offers higher reliability, longer service life, and lower maintenance requirements.
In recent years, demand for compact, efficient, and intelligent power distribution systems has increased significantly. As a result, products like the Side-mounted Indoor High Voltage Vacuum Circuit Breaker developed by Comewill have become essential for industrial plants, substations, and commercial power infrastructure.

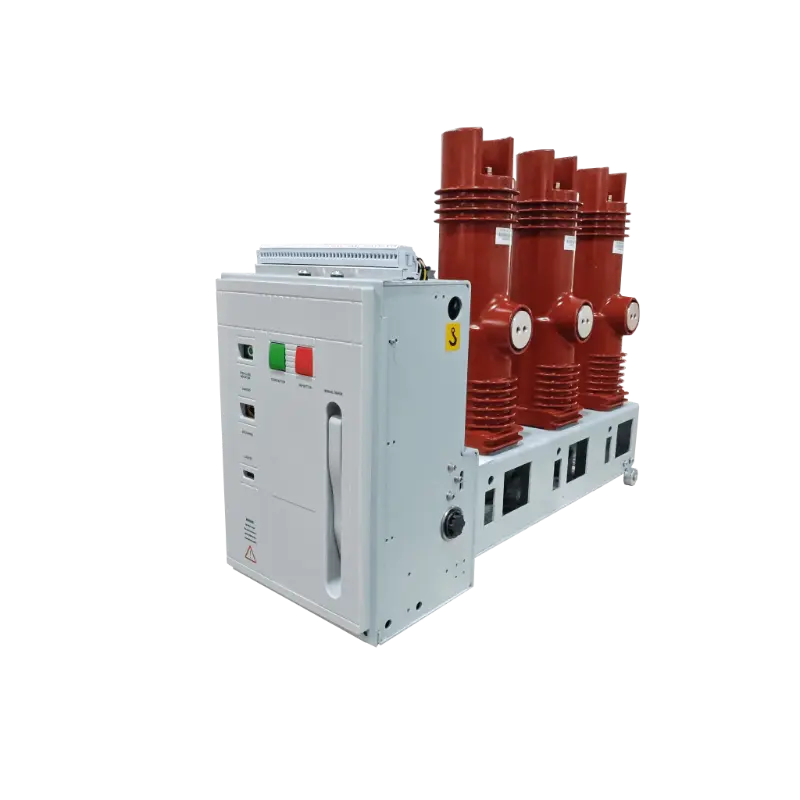

The Side-mounted Indoor High Voltage Vacuum Circuit Breaker is a switching device installed in indoor switchgear systems. It uses vacuum as the arc extinguishing medium. When the circuit is interrupted, the vacuum quickly extinguishes the arc formed between contacts, ensuring safe disconnection of electrical current.
The "side-mounted" design refers to its installation orientation, allowing flexible integration into compact switchgear systems. This design reduces space requirements while improving maintenance accessibility.
Comewill integrates advanced engineering into every Side-mounted Indoor High Voltage Vacuum Circuit Breaker, ensuring optimal performance in demanding environments.
The Side-mounted Indoor High Voltage Vacuum Circuit Breaker offers several advanced features that make it suitable for modern power systems:
These features make the Side-mounted Indoor High Voltage Vacuum Circuit Breaker a preferred choice for industries requiring high reliability and safety.
The following table shows typical technical specifications of a Side-mounted Indoor High Voltage Vacuum Circuit Breaker provided by Comewill:
| Parameter | Specification |
|---|---|
| Rated Voltage | 12kV / 24kV / 36kV |
| Rated Current | 630A – 3150A |
| Breaking Capacity | 20kA – 50kA |
| Insulation Level | 50kV – 70kV |
| Mechanical Life | 10,000 – 30,000 operations |
| Operating Mechanism | Spring / Magnetic actuator |
The Side-mounted Indoor High Voltage Vacuum Circuit Breaker operates based on vacuum arc extinguishing technology. When the contacts inside the vacuum interrupter separate during a fault condition, an arc is generated. However, due to the high dielectric strength of the vacuum, the arc is rapidly extinguished as the current crosses zero.
This process ensures minimal energy loss and prevents damage to connected electrical equipment. The vacuum environment eliminates ionization, making interruption extremely efficient and safe.
Comewill optimizes this mechanism to ensure fast response time and stable arc extinction performance under high load conditions.
The Side-mounted Indoor High Voltage Vacuum Circuit Breaker offers multiple advantages compared to traditional switching devices:
These advantages make it an ideal solution for modern power distribution systems seeking reliability and sustainability.
The Side-mounted Indoor High Voltage Vacuum Circuit Breaker is widely used across multiple industries:
Its adaptability and strong performance make it suitable for any environment requiring stable high-voltage switching protection.
Proper installation and maintenance are essential for ensuring the long-term performance of a Side-mounted Indoor High Voltage Vacuum Circuit Breaker.
| Type | Arc Quenching Medium | Maintenance | Lifespan | Environmental Impact |
|---|---|---|---|---|
| Vacuum Circuit Breaker | Vacuum | Low | Long | Eco-friendly |
| Oil Circuit Breaker | Oil | High | Medium | Risk of leakage |
| SF6 Circuit Breaker | SF6 Gas | Medium | Long | High greenhouse impact |
Choosing the right Side-mounted Indoor High Voltage Vacuum Circuit Breaker requires careful consideration of several factors:
Comewill provides professional guidance to help customers select the most suitable configuration for their specific applications.
Q1: What makes vacuum circuit breakers better than traditional types?
Vacuum circuit breakers offer higher safety, longer lifespan, and lower maintenance due to their sealed vacuum interrupter design.
Q2: Is the Side-mounted Indoor High Voltage Vacuum Circuit Breaker suitable for all industries?
Yes, it is widely used in power systems, industrial plants, and infrastructure projects requiring reliable high-voltage protection.
Q3: How often should maintenance be performed?
Routine inspection is recommended every 6–12 months depending on operating conditions.
Q4: Can Comewill customize circuit breakers?
Yes, Comewill offers customized solutions based on voltage level, installation requirements, and application needs.
Q5: What is the lifespan of a Side-mounted Indoor High Voltage Vacuum Circuit Breaker?
With proper maintenance, it can operate efficiently for over 20 years.
The Side-mounted Indoor High Voltage Vacuum Circuit Breaker plays a vital role in ensuring stable and safe power distribution systems. Its compact structure, superior arc extinguishing performance, and long service life make it a preferred solution in modern electrical engineering.
With continuous innovation, Comewill delivers reliable and efficient vacuum circuit breaker solutions that meet global industrial standards and evolving energy demands.
If you are looking for high-performance electrical protection equipment, Comewill is your trusted partner. For technical consultation, product details, or customized solutions, please feel free to contact us today — contact us and let us support your next project with reliable power solutions.
