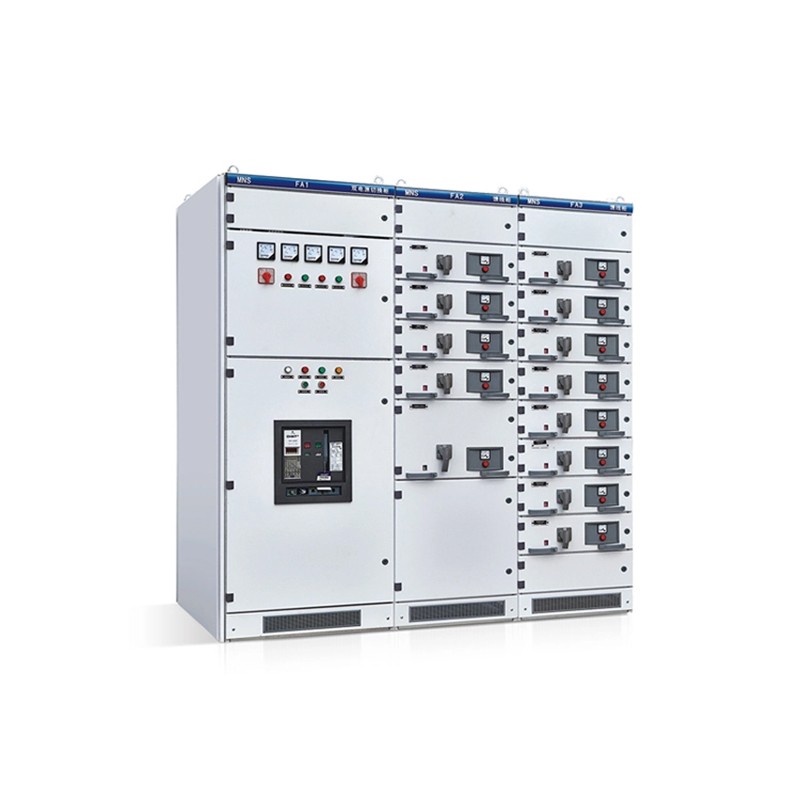

MNS Low Voltage Withdrawable Switchgear

From selection to deployment, the high-quality MNS Low Voltage Withdrawable Switchgear from Welcome (Wenzhou) Electric Co., Ltd., a professional manufacturer in China, demonstrates significant advantages: it supports customizing circuit configurations according to power distribution capacity, is compatible with integrating components from multiple brands, and can be quickly put into operation without complex debugging during installation. Whether for bulk procurement in new projects or upgrade replacement of existing systems, it provides solid support for the stable operation of power systems through efficient power distribution and safety protection, making it an ideal choice that balances performance and economy.

Featuring a fully modular design, each functional unit (such as circuit breakers and busbar systems) can be quickly withdrawn or inserted, significantly reducing maintenance difficulty and ensuring continuous power supply. The MNS Low Voltage Withdrawable Switchgear is made of high-strength cold-rolled steel plates, combined with a precision compartment structure, achieving complete electrical isolation and protection to withstand overload and short-circuit impacts under harsh working conditions.

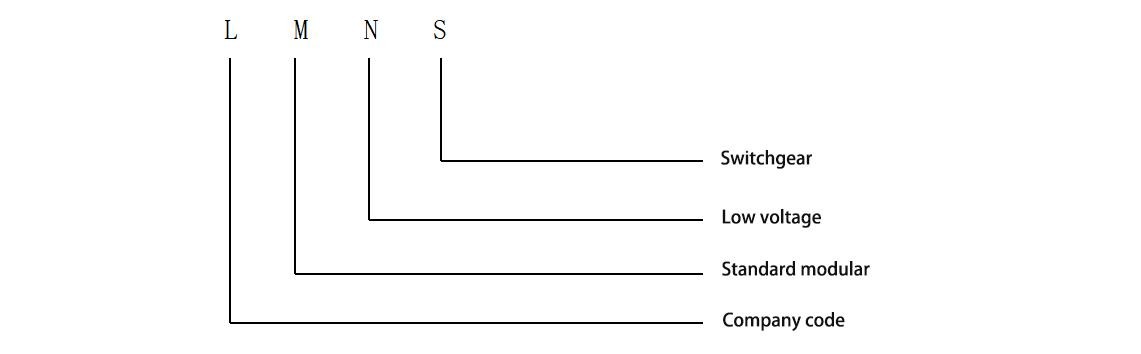

Product Model Meaning

1. Ambient Temperature Specification: Comewill high quality MNS Low Voltage Withdrawable Switchgear operates within a defined ambient air temperature range—upper limit of +40℃, lower limit of -5℃, with the 24-hour mean temperature not exceeding +35℃. In scenarios where the on-site temperature deviates beyond this scope, derated operation of the equipment is mandatory. To guarantee optimal performance matching, the purchasing party is advised to disclose the actual temperature profile of the installation site during pre-procurement discussions with Welcome (Wenzhou) Electric Co., Ltd.
2. Relative Humidity Parameter: At the maximum ambient temperature of +40℃, the relative humidity must be kept below 50%. Lower temperatures permit higher humidity levels, for instance, 90% relative humidity is acceptable at +20℃. Notably, the purchasing party should take into account the potential condensation issue triggered by abrupt temperature fluctuations during both procurement planning and on-site installation, and proactively consult the manufacturer for anti-condensation solutions if necessary.
3. Installation Altitude Limit: The standard altitude for equipment installation is set at no more than 2000m above sea level. For projects situated in high-altitude areas exceeding 2000m, the equipment needs to be operated with corresponding capacity reduction. It is essential for the purchasing party to clearly state the exact installation altitude in the procurement contract, enabling Welcome (Wenzhou) Electric Co., Ltd. to make pre-emptive adjustments to equipment parameters.
4. On-Site Installation Criteria: The switchgear should be installed in an environment devoid of fire threats, explosion risks, excessive dust, chemical erosion, and strong vibration or impact. Prior to equipment delivery, the purchasing party must verify that the installation site meets these criteria; failure to do so could lead to compromised equipment performance and shortened service lifespan.
5. Special Environment Consultation: In the event that the actual project environment fails to align with the above-mentioned conditions, the user (purchasing party) must engage in timely communication and negotiation with Welcome (Wenzhou) Electric Co., Ltd. The goal is to jointly work out tailored remedies, such as structural enhancements or material upgrades, to ensure the equipment functions normally in the target environment.

Main Technical Parameters

Note: For the rear wiring solution, a cabinet depth of 1000mm is recommended.

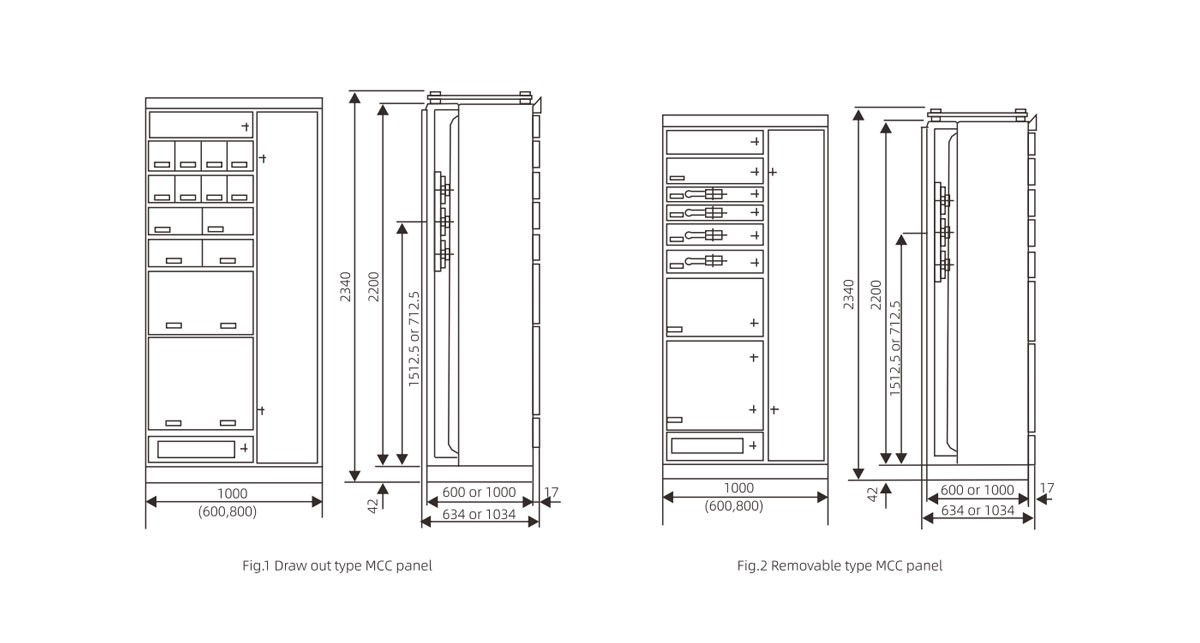

Product Size

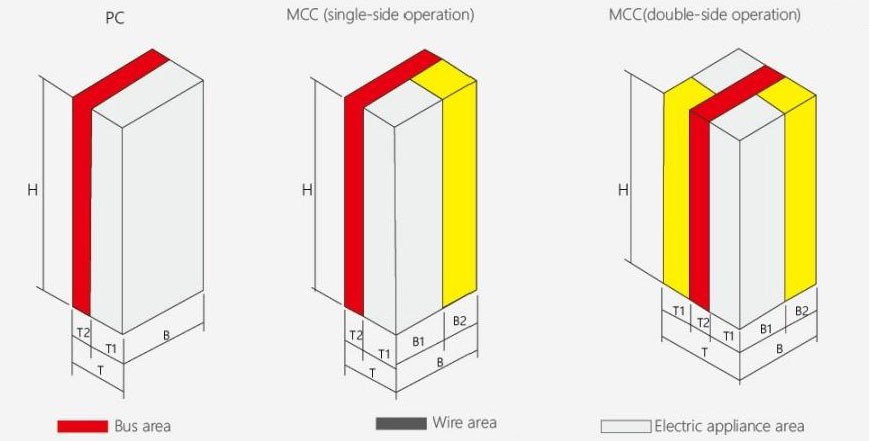

Cabinet body schematic diagram

Key Features of Low-Pressure Withdrawable Switchgear

Adaptability and safety are the main determinants that make the MNS low voltage withdrawable switchgear unique. These key features include the following:
Modular Design: This helps with faster installation and system modifications making it relevant for different industries.
Easy Maintenance: The dowel pins allow for the reachable parts to be within reach, therefore minimizing downtime.
Safety Measures: High internal separation configurations, provide effective fault isolation and reliability for the operators.
Technical Parameters:
Rated Voltage: Has up to 690V operation voltage allowing it to be useful with different power distribution applications.
Short-Time Withstand Current: This rating is robust allowing for up to 100kA, providing excellent performance under fault conditions.

As for the inquiries about the switchgear, we are of the view that the first three links available on the Google site aptly highlighted these issues when we examined the issues related to MNS switchgear’s construction and robust security implementation. They have once again illustrated the flexibility of MNS switchgear more so, its modular design and severally, its safety features because the switchgear is employed in different settings. Its employment in industrial facilities or data centers though brings out the switchgear`s strength to operate in difficult conditions as a major highlight. Therefore, the technical parameters that I have produced here have a bearing on these sources, stressing their practicality and dependability.

Application Places

The MNS low-voltage cabinet supplied by Welcome (Wenzhou) Electric Co., Ltd. is a hot-selling procurement option for low-voltage power distribution systems, widely applied in key scenarios such as distribution power stations, factories, industrial and mining enterprises, nuclear power stations, and building distribution. As a professional low-voltage withdrawable switchgear, its design and procurement matching fully take into account diverse environmental factors and technical requirements, ensuring strong adaptability to project needs.
Firstly, in terms of ambient temperature adaptation—a key factor for procurement performance evaluation—Welcome (Wenzhou) Electric Co., Ltd. has clearly defined the operating range for the MNS low-voltage cabinet: the ambient air temperature shall not exceed +40℃ or be lower than -5℃. This temperature standard ensures the cabinet can operate stably in most regional environments, providing reliable guarantees for procurement projects in different climatic zones.
In addition, air cleanliness and relative humidity are also important considerations in procurement technical specifications. The MNS low-voltage cabinet stipulates that when the maximum temperature reaches +40℃, the relative humidity shall not exceed 50%; while at lower temperatures, higher humidity is permissible, such as 90% relative humidity at +20℃. This flexible humidity adaptation capability allows the cabinet to meet the environmental needs of various procurement projects, whether in dry or moderately humid areas.
Altitude limitation is another critical procurement parameter. The MNS low-voltage cabinet is designed with an altitude limit of no more than 2000 meters above sea level, ensuring normal operation in plateau regions. For procurement projects in high-altitude areas beyond this limit, Welcome (Wenzhou) Electric Co., Ltd. can provide customized derating solutions to meet the special environmental requirements of the project.
