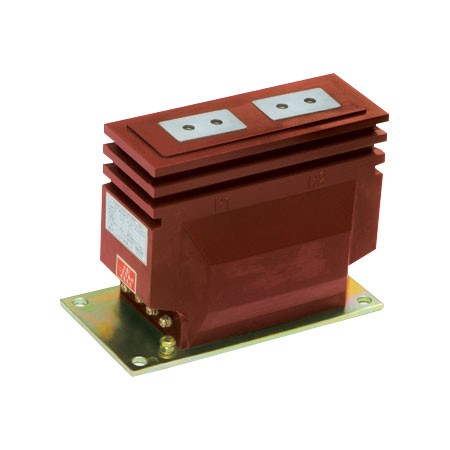

Buy quality LZZ(Q.J)B6-10Q Current Transformer from Comewill, a professional manufacturer in China. We supports customizing various special specifications according to the actual needs of users, flexibly adapting to the technical requirements of different distribution scenarios, and perfectly matching the integrated installation needs of GSFC-10 AC metal armored enclosed high-voltage switchgear and JYN2-10 single busbar handcart switchgear. It is an ideal choice for bulk procurement of complete equipment matching.
From product development to manufacturing, Comewill has always focused on the reliability and adaptability of distribution equipment. This series of current transformers not only has a compact structure and excellent insulation performance, but also meets differentiated procurement needs through customized services. Whether it's centralized procurement for switchgear matching or component replacement for project renovation, choosing our products can provide stable performance guarantee and comprehensive technical support. Welcome to inquire about procurement details and obtain exclusive customized solutions!
The LZZ(Q.J)B6-10Q Current Transformer produced by Welcome (Wenzhou) Electric Co., Ltd. fully guarantees the reliability of the equipment in terms of core structure and process, and is suitable for the strict operating requirements of medium voltage distribution systems:
The transformer uses high-quality magnetic materials to make the iron core, and the primary winding, secondary winding, and iron core are cast together in epoxy resin to form a fully enclosed insulation structure. This integrated casting process not only endows the product with excellent insulation performance and moisture resistance, but also facilitates daily surface cleaning, greatly reducing operation and maintenance costs. It is the preferred choice for power engineering procurement selection that balances performance and practicality.

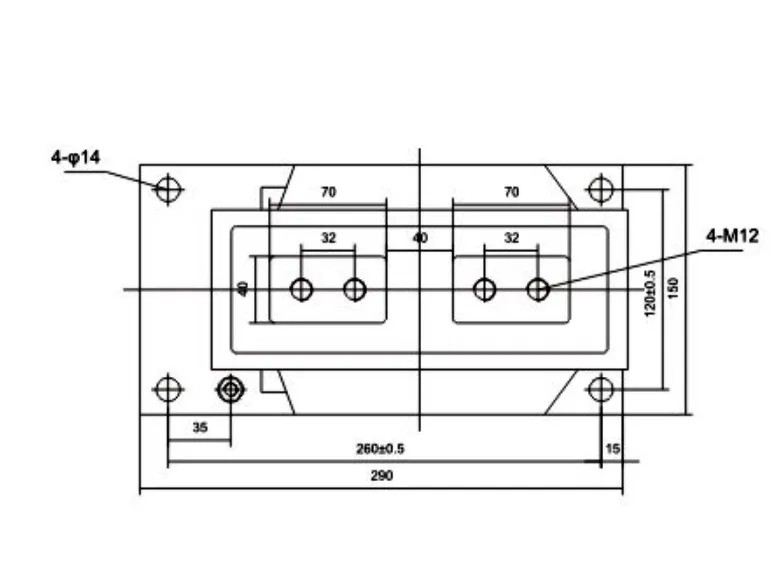

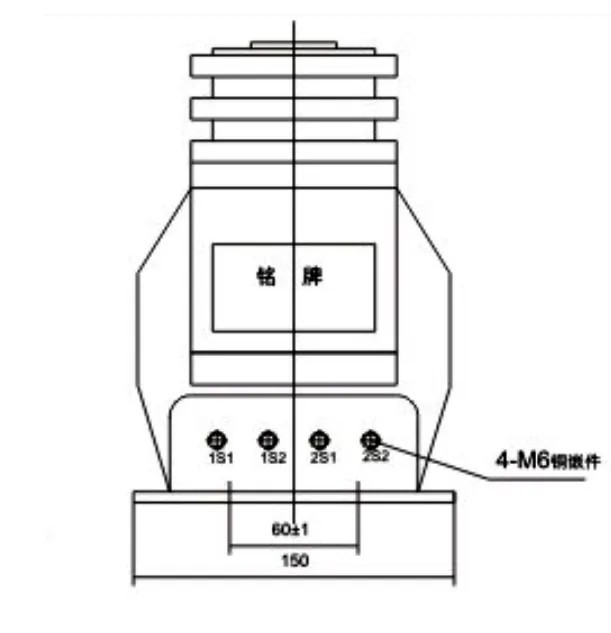

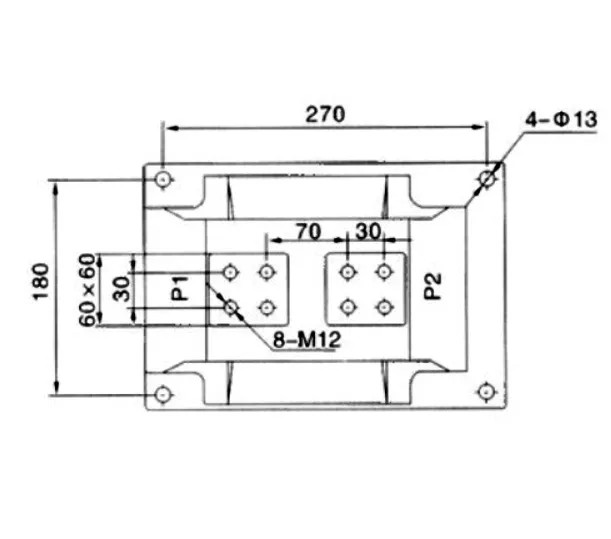

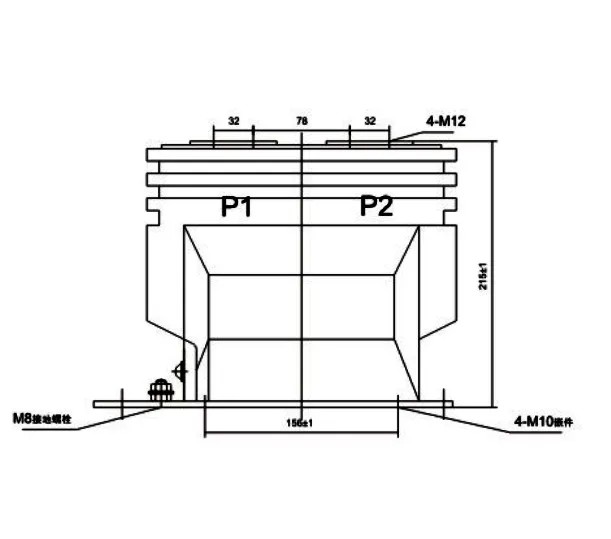

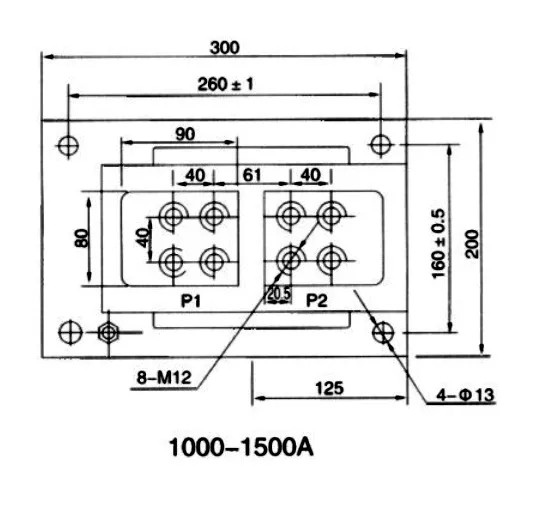

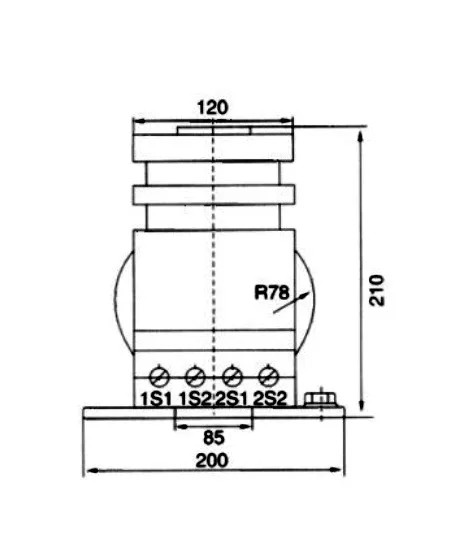

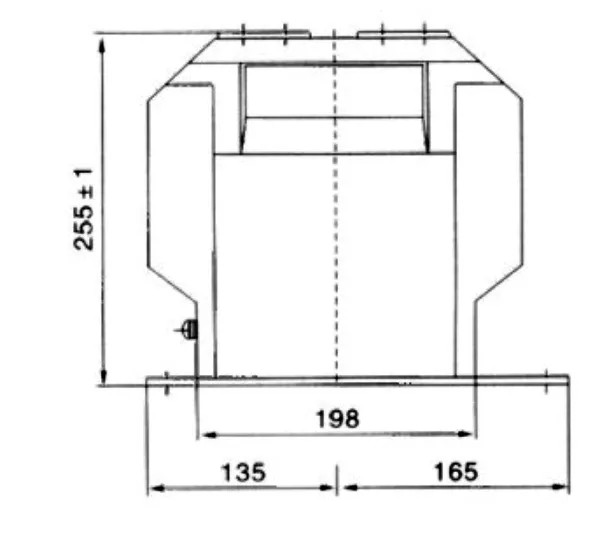

Reserve a qualified identification area at the top of the transformer casting body, and clearly label the P1 and P2 polarities at the outlet end; The secondary winding is divided into metering level (output terminals 1S1, 1S2) and protection level (output terminals 2S1, 2S2), and the accuracy level of the transformer meets the industry's high standards, meeting the dual requirements of metering and protection. The equipment base design has four installation holes, which are suitable for standardized installation inside the switchgear. It can be fixed without additional adjustments, improving the installation efficiency on the project site. It is particularly suitable for bulk procurement scenarios of complete equipment matching.
Choosing epoxy resin cast current transformers from Welcome (Wenzhou) Electric Co., Ltd not only ensures stable product performance, but also provides a highly adaptable installation experience. Whether it is for new power distribution projects or switchgear procurement, it is a cost-effective purchasing choice. If you need to learn more product details or procurement plans, please feel free to consult at any time!
| TRANSDUCER | |
| Rated insulation level | 12/42/75kV |
| Load power factor | 0.8(lag) |
| Surface creepage distance | 230mm/280mm |
| Rated secondary current | 5A/1A |
| Product standard | GB1208 |
| Safety factor | FS<10 |
| Type | Rated primary current | Rated secondary current | Accuracy class | Rated output | 1 second heat current | Dynamic current |
| LZZB6-10 | 5 | 5 or 1 | 0.2/0.2 ,0.2/0.5 ,0.5/0.5 ,0.2/10P10, 0.2S/10P10, 0.5/10P10,10P10/10P10 | 10 /10,10 /10,10 /10,10 /15,10 /15,10 /15 | 0.75 | 1.875 |
| 15 | 1.5 | 3.75 | ||||
| 10 | 2.25 | 5.625 | ||||
| 20 | 3 | 7.5 | ||||
| 30 | 4.5 | 11.25 | ||||
| 40 | 6 | 15 | ||||
| 50 | 7.5 | 18.75 | ||||
| 70 | 11.25 | 28.125 | ||||
| 100 | 15 | 37.5 | ||||
| 150 | 22.5 | 44 | ||||
| 200 | 24.5 | 44 | ||||
| 300 | 24.5 | 44 |
| Type | Rated primary current | Rated secondary current | Accuracy class | Rated output | 1 second heat current | Dynamic current |
| LZZJB6-10 | 50 | 5 or 1 | 0.2/0.2, 0.2/0.5, 0.5/0.25, 0.2/10P15, 0.2S/10P10, 0.5/10P15, 10P15/10P15 | 10 /10,10 /10,10 /10,10 /15,10 /15,10 /15 | 7.5 | 19.1 |
| 75 | 11.3 | 28.7 | ||||
| 100 | 15 | 38 | ||||
| 150 | 22.5 | 44 | ||||
| 200 | 24.5 | 44 | ||||
| 300 | 24.5 | 44 | ||||
| 400,500,600 | 33 | 59 | ||||
| 800 ,1000 ,1200,1500 | 41 | 74 |
| Type | Rated primary current | Rated secondary current | Accuracy class | Rated output | 1 second heat current | Dynamic current |
| LZZQB6-10 /LZZQB6-10Q | 30 | 5 or 1 | 0.2/0.2, 0.2/0.5, 0.5/0.25, 0.2/10P15, 0.2S/10P10, 0.5/10P15, 10P15/10P15 | 10 /10,10 /15,15 /15, 10 /20,15 /20,10 /10 | 8 | 20 |
| 40 | 12 | 30 | ||||
| 50 | 16 | 40 | ||||
| 75 | 20 | 50 | ||||
| 100-300 | 31.5 | 80 | ||||
| 400 | ||||||
| 500 | 20/20,20/20,20/20,20/30,20/30,15/15 | 44.5 | 80 | |||
| 600-800 | 30/30,30/30,30/30,30/40,30/40,20/20 | |||||
| 1000-1500 | 63 | 110 | ||||
