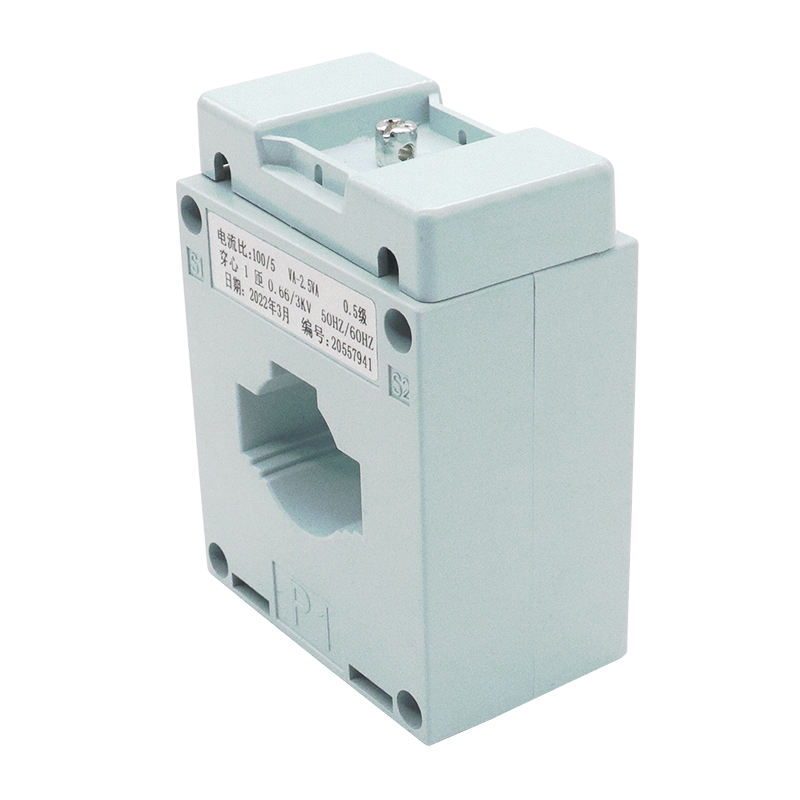

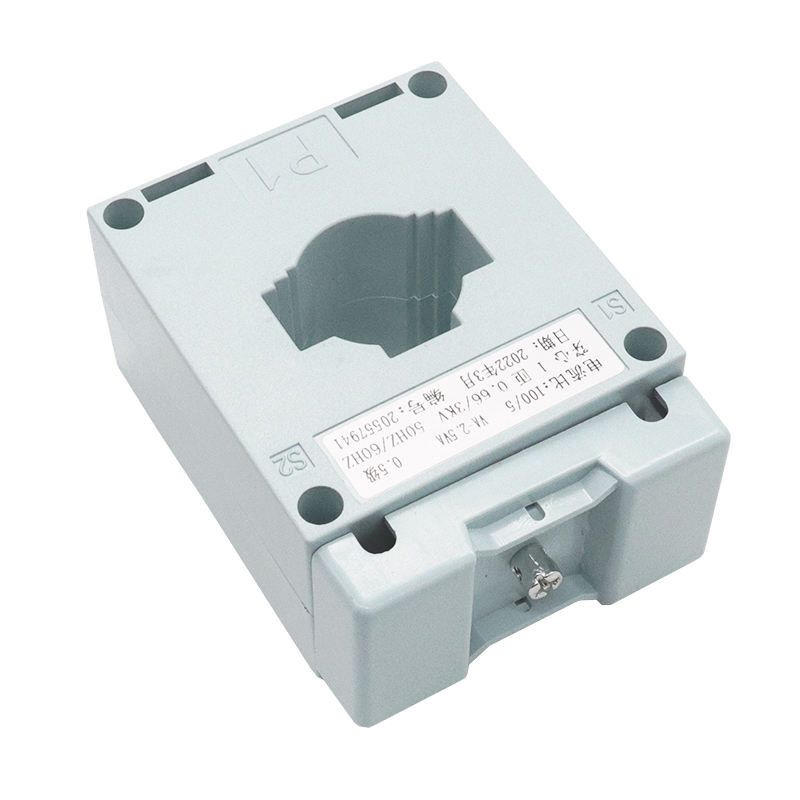

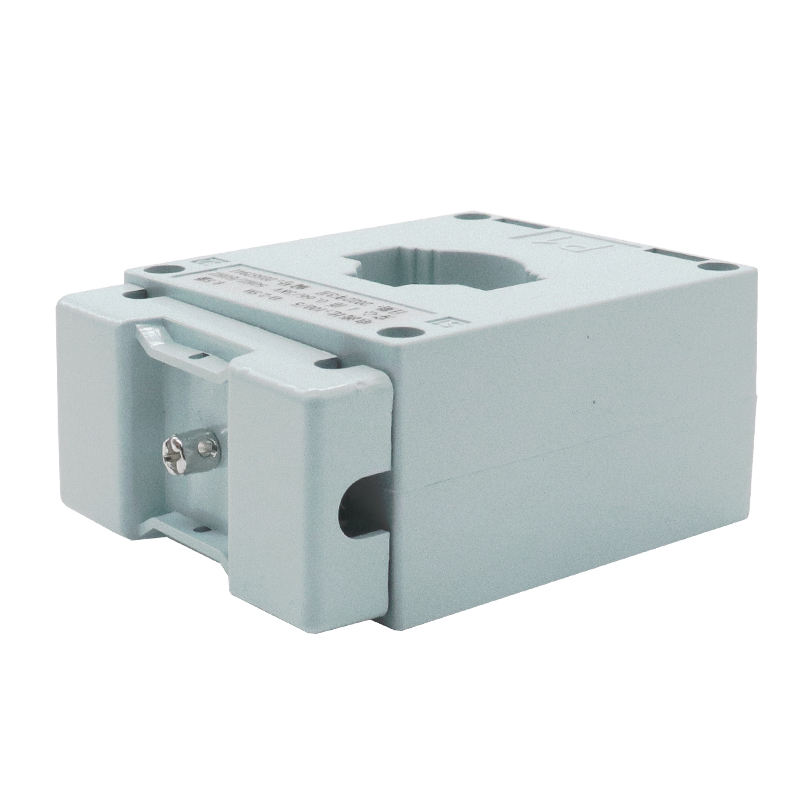

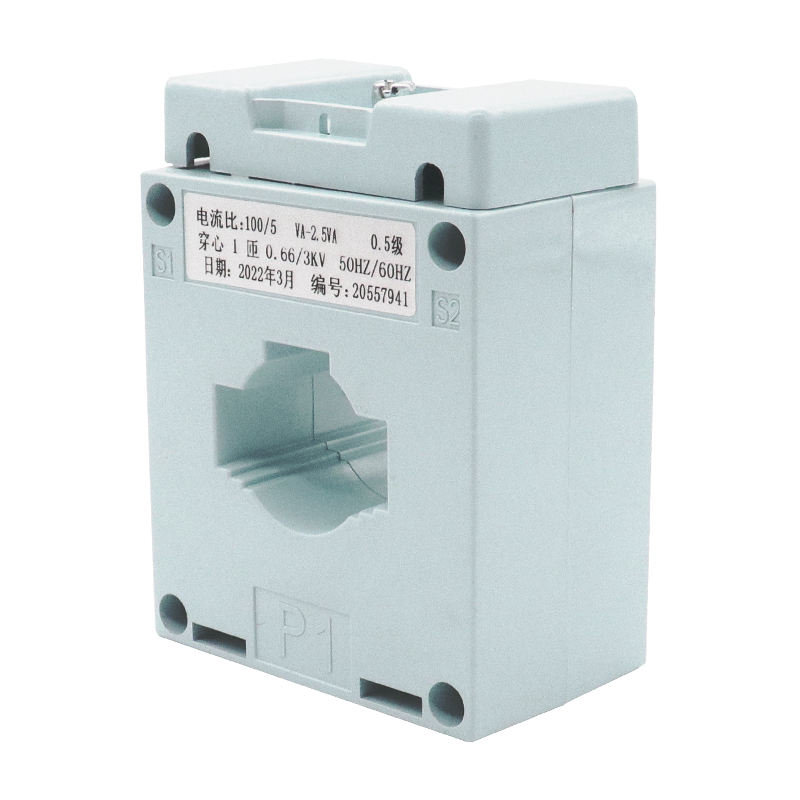

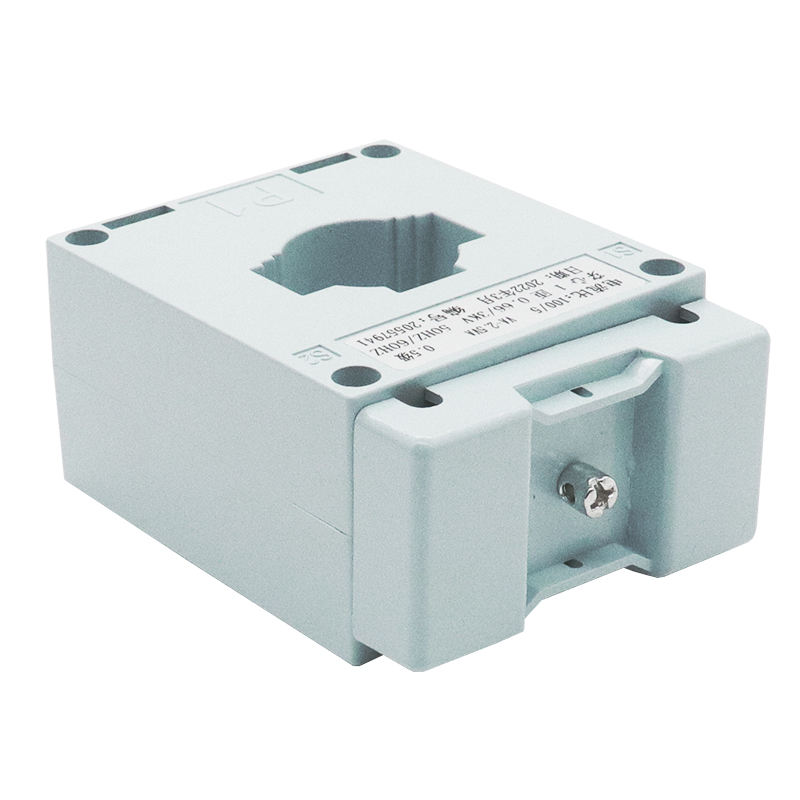

BH-0.66 I Metering Current Transformer

As the professional manufacturer, Comewill would like to provide you high quality BH-0.66 I metering current transformer. The letter B signifies Enclosed Type, the letter H signifies Current Transformer, the 0.66 signifies the Voltage Class (kV), and I signifies Classification Type. The middle window hole of the Type I is for the cable or the primary busbar to pass through, and it typically used for monitoring applications.

Structure Introduction

This type of BH-0.66 I metering current transformer is bus-type plastic shell insulation. The iron core is loop style. The secondary windings are evenly arranged around the iron core. There is a hole capable for the busbar passing through.

Technical Specifications:

Rated Voltage: 0.66kV;
Rated Frequency: 50Hz/60Hz;
Accuracy Grades: Class 0.5, 0.2S, or 0.2 etc.;
Standard bore diameter 30mm,
Ratios including 30/5, 50/5, 75/5, 100/5, 150/5, 200/5, 250/5, 300/5, 400/5, etc.

Price Solutions

Welcome (Wenzhou) Electric Co., Ltd.'s BH-0.66 I metering current transformers deliver high quality while offering customized current transformer quotations to meet diverse budget and procurement needs, including different accuracy classes, current ratios, and transformer quantities. This makes them the top choice for buyers who seeking cheap BH-0.66 I metering current transformers.
