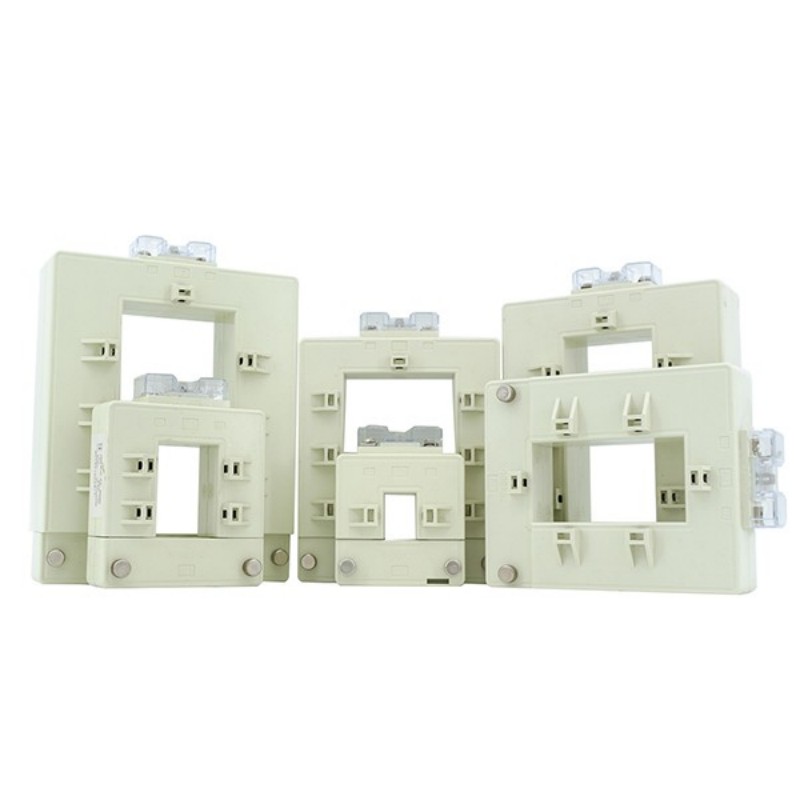

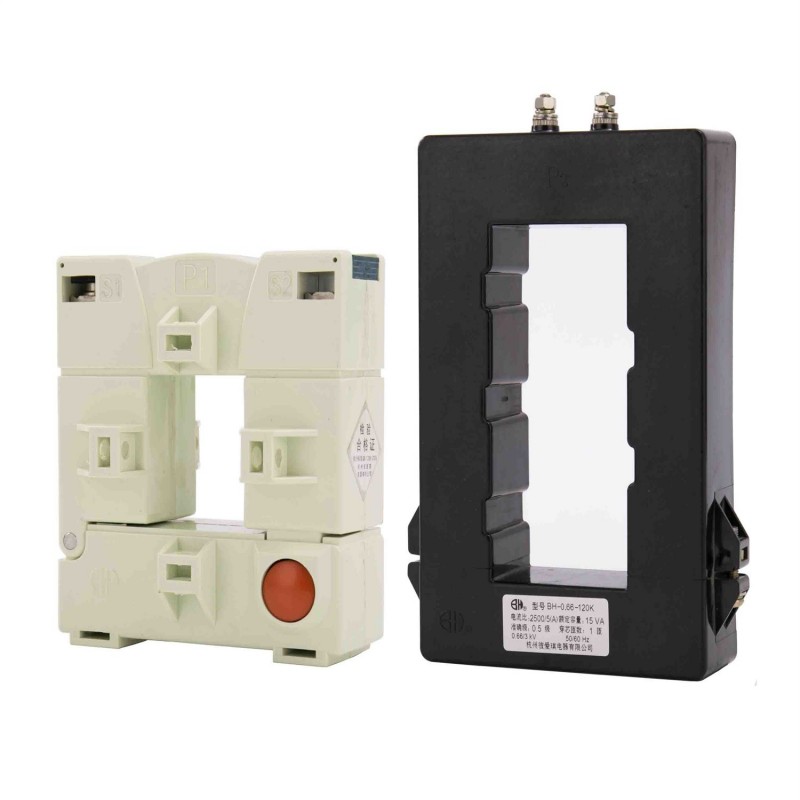

Comewill factory's high quality BH-K Series Split-core Current Transformer is suitable for procurement in AC circuits with a rated frequency of 50Hz and rated working voltage of 0.66kV and below, this product excels at accurate current and electric energy measurement, fully meeting the technical demands of procurement projects.
| Section(m㎡)Number ofcore wires | 16 | 25 | 35 | 50 | 70 | 95 | 120 | 150 | 185 | 240 | |
| 1core | VV | 10.7 | 125 | 14.0 | 153 | 17.1 | 19.4 | 21.1 | 25.0 | 25.4 | 28.3 |
| YJV | 97 | 11.4 | 125 | 141 | 16.2 | 18.3 | 20.2 | 223 | 24.8 | 27.9 | |
| 2cores | VV | 18.5 | 220 | 191 | 219 | 24.5 | 28.1 | 30.5 | 33.9 | 37.3 |
|
| YJV | 17.9 | 21.3 | 23.6 | 26.7 | 310 | 35.1 | 39.0 | 433 | 48.2 | 54.3 | |
| 3cores | VV | 19.6 | 233 | 222 | 25.6 | 28.9 | 33.9 | 36.1 | 41.6 |
|
50.7 |
| YJV | 18.9 | 226 | 25.1 | 28.5 | 33.2 | 37.6 | 41.8 | 46.4 | 517 | 58.3 | |
| 4cores(3+1) | VV | 21.5 | 25.6 | 25.6 | 30.0 | 33.6 | 38.6 | 42.4 | 48.5 | 428 | 55.4 |
| YJV | 20.6 | 24.8 | 27.6 | 316 | 36.8 | 41.8 | 46.5 | 516 | 57.6 | 64.8 | |
| 4cores | VV | 21.0 | 24.6 | 24.9 | 281 | 32.6 | 37.9 | 40.4 | 44.6 | 49.3 | 55.6 |
| YJV | 22.4 | 272 | 30.5 | 35.0 | 40.8 | 46.4 | 51.7 | 57.4 | 64.1 | 723 | |
Installation Location: Indoor setting.
Ambient Temperature: Ranges from -5℃ to +40℃; the daily average temperature shall not exceed +30℃.
Elevation: No more than 1,000 meters above sea level.
Humidity Conditions: At the maximum ambient temperature of +40℃, the relative air humidity shall not exceed 50%. At lower temperatures, the allowable relative air humidity shall not exceed 80%.
Air Quality: The surrounding air shall be free from heavy contamination. It shall not contain gases, vapors or conductive dust in concentrations sufficient to cause metal corrosion or insulation deterioration.
Vibration and Shock: The installation site of BH-K Series Split-core Current Transformer shall be free from intense vibration and impact.
Environmental Exposure: The installation location shall be protected from direct sunlight, rain, snow erosion and excessive mold growth.
