High quality LCWD1-35 Current Transformer is offered by Comewill, a professional manufacturer and supplier in China. It’s designed for energy metering, current measurement, and relay protection – with a compact design, lightweight build, and reliable performance that matters for global high-voltage equipment procurement. We’ve built it tough: vacuum-dried and oil-filled, so it delivers solid insulation and holds up well even in harsh outdoor conditions.
Perfect for medium-voltage power systems that need consistent performance in tough environments, this LCWD1-35 Current Transformer meets international quality standards to fit right into your electrical setup. If you need detailed technical specs, customized quotes, or help with bulk procurement, our team at Welcome (Wenzhou) Electric Co., Ltd is here to assist. With decades in high-voltage electrical engineering, we provide dependable products and responsive support to make your procurement process smoother. Reach out today to learn how this transformer can boost your power system’s efficiency and safety.
Key specs for the LCWD1-35 (LABN1-35W2) Current Transformer:
- Rated Insulation Level: 40.5/95/185kV
- Rated Secondary Current: 5A
- Rated Primary Current & Accuracy Classes: Check the specs table for details
- Creepage Distance: ≥735mm (General), ≥1100mm (W2)
- Parameter Selection: See the technical table
Looking for procurement help or a quote? Reach out to Welcome (Wenzhou) Electric Co., Ltd – your reliable source for high-voltage equipment worldwide.
Custom adjustments available upon request.
| Rated PrimaryCurrent (A) | Accuracy ClassedCombination | Related Output (VA) | Short-timeThermal Current(KA/S) | Rated DynamicCurrent (I dyn) (KA) | ||
| 0.2S | 0.5 | 10P20 |
|
|
||
| 5 | 0.5/10P150.5/10P150.2/0.50.2/0.2 | 30 | 50 | 50 | 0.375 | 0.95 |
| 10 | 0.75 | 1.9 | ||||
| 15 | 1.12 | 2.9 | ||||
| 20 | 1.5 | 3.8 | ||||
| 30 | 2.25 | 5.7 | ||||
| 40 | 3 | 7.6 | ||||
| 50 | 3.75 | 9.6 | ||||
| 75 | 5.62 | 14.5 | ||||
| 100 | 7.5 | 19.2 | ||||
| 200 | 11.25 | 28.7 | ||||
| 300 | 15 | 38.3 | ||||
| 400 | 22.5 | 57.5 | ||||
| 600 | 30 | 76.5 | ||||
| 800 | 45 | 115 | ||||
| 1000 | 45 | 115 | ||||
| 1200 | 45 | 115 | ||||
| 1500 | 45 | 115 | ||||

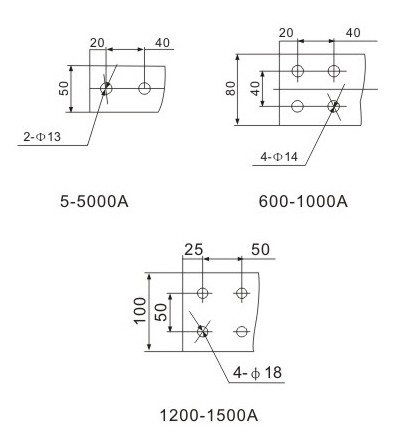

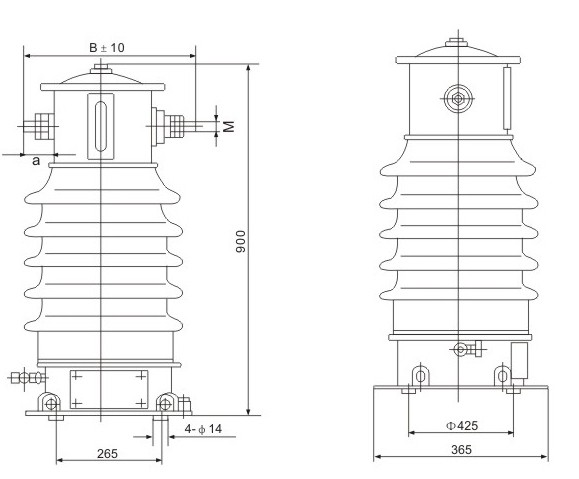

| Rated PrimaryCurrent (A) | M |
| 5-500 | M22 × 1.5 |
| 600-1000 | M27 × 1.5 |
| 1200-1500 | M30 × 1.5 |
| Rated Primary Current (A) > | B |
| 5-500 | 410 |
| 600-1000 | 440 |
| 1200-1500 | 440 |
When placing your order, please provide: -
Transformer type and the primary current rating you need
Required accuracy class and secondary output details
Insulation level and pollution class for your application
Any customization needs: custom dimensions, materials, design adjustments, or tailored oil tanks/casings
