Proven Accuracy:
Manufactured in strict accordance with IEC and ANSI standards, the LMZW1-0.66 Current Transformer delivers precision data essential for energy monitoring and billing. Available in accuracy classes including 0.5, 1.0, or custom options, this transformer is the ideal choice for bulk procurement in energy and industrial projects where reliable measurement is non-negotiable.
Tough & Long-Lasting:Using flame-retardant, high-insulation materials—such as epoxy resin and durable plastic casings—this product is engineered to withstand harsh operating conditions. This robust construction significantly reduces the need for frequent replacements, offering long-term value for procurement teams.

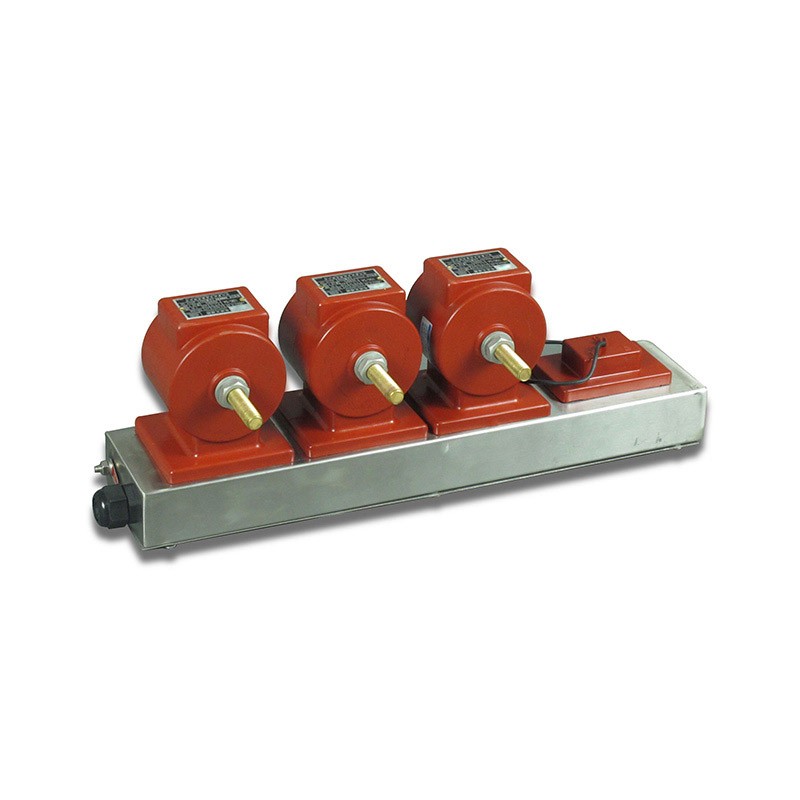

The LMZW1-0.66 Current Transformer features a compact design with flexible bolt-on or clamp-on mounting options, enabling quick and easy setup. This user-friendly design is a key reason why professionals sourcing components for switchboards, distribution panels, and control cabinets continue to choose this model.
The LMZW1-0.66 Current Transformer is a critical component in residential, commercial, and industrial power systems. Its applications range from building electrical distribution and renewable energy projects to industrial machinery and smart grid management.
Rated Voltage: 0.66KV
Rated Fequency: 50Hz
Ambient Temperature:-5ºC~+55ºC

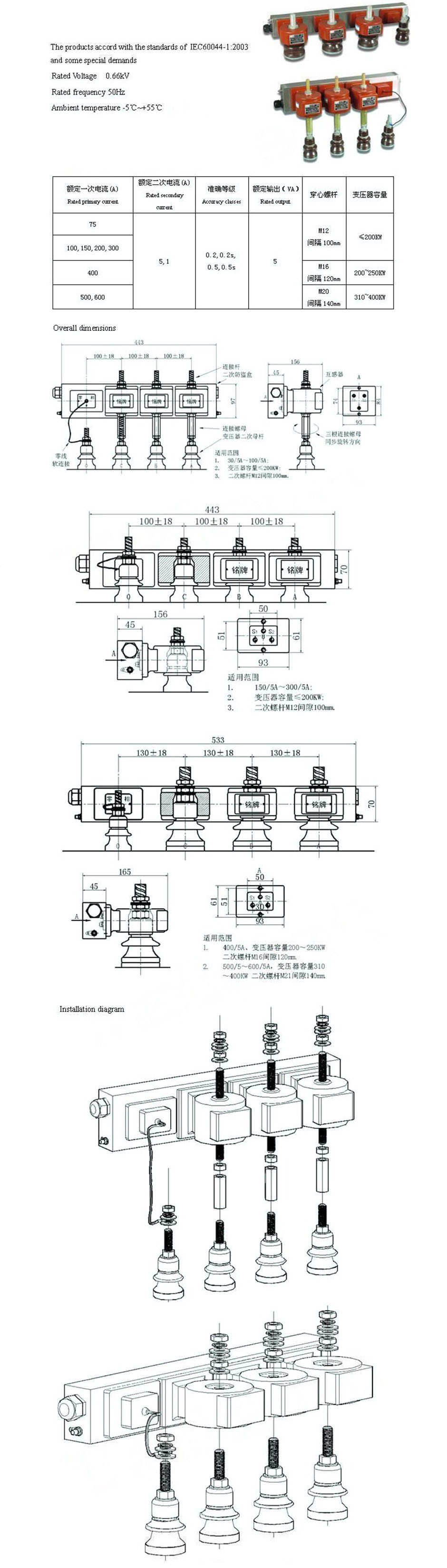

| Rated primary current(A) | Rated secondary current(A) | Accuracy classes | Rated output(VA) | Bolt | Transformer Capacity |
| 75 | 5,1 | 0.2,0.2s0.5,0.5s | 5 | M12100 mm | ≤200KW |
| 100,150,200,300 | |||||
| 400 | M16120 mm | 200-250KW | |||
| 500,600 | M20140 mm | 310-400KW |
Note: If user's data go beyond the above mentioned scopes, they maybe subject to an agreement between manufacturer and purchaser.
