15KV 600A Specific Load Break Junction

Buy 15KV 600A Specific Load Break Junctions from China. Manufactured with high-insulation materials, these junctions offer excellent electrical performance and environmental adaptability. They support 2-way, 3-way, and 4-way 200A load break interface combinations and are equipped with a 600A deadbreak interface for flexible cable branching connections. Their fully sealed insulation design ensures long-term stable operation.

What is a 15KV 600A Specific Load Break Junction?

A 15KV 600A Specific Load Break Junction is an important component for cable branching connections in medium-voltage power systems. It is primarily used for branching high-voltage cables, rapid disconnection, and system expansion. It is suitable for use in ring main units, power distribution systems, underground cable networks, and industrial power systems, making cable connections more flexible, safe, and easy to maintain.

Welcome (Wenzhou) Electric Co., Ltd., as a professional manufacturer of high-voltage electrical equipment, has many years of experience in power engineering. Our 15KV 600A Specific Load Break Junction achieves stable electrical connection performance and durability through high-quality materials and advanced manufacturing processes.

The 15KV 600A Specific Load Break Junction adopts an integrated busbar connection design to ensure stable current transmission, while complying with the ANSI/IEEE 386 – Separable Insulated Connector Systems international standard, meeting the procurement needs of global power engineering projects.

Model Example

YMP4-15/600:600A capacity, supports multi branch configuration (such as 600/200A combination). ‌
YMP3-15/600:600A capacity, suitable for different branch requirements. ‌

Core Product Features

1. Fully Insulated and Fully Shielded Design

The 15KV 600A Specific Load Break Junction adopts a fully insulated and sealed structure, suitable for 15kV medium-voltage systems. It effectively prevents the influence of the external environment, improves system operational safety, and also prevents the risk of arcing or leakage.

2. Flexible Multi-Branch Connection Capability

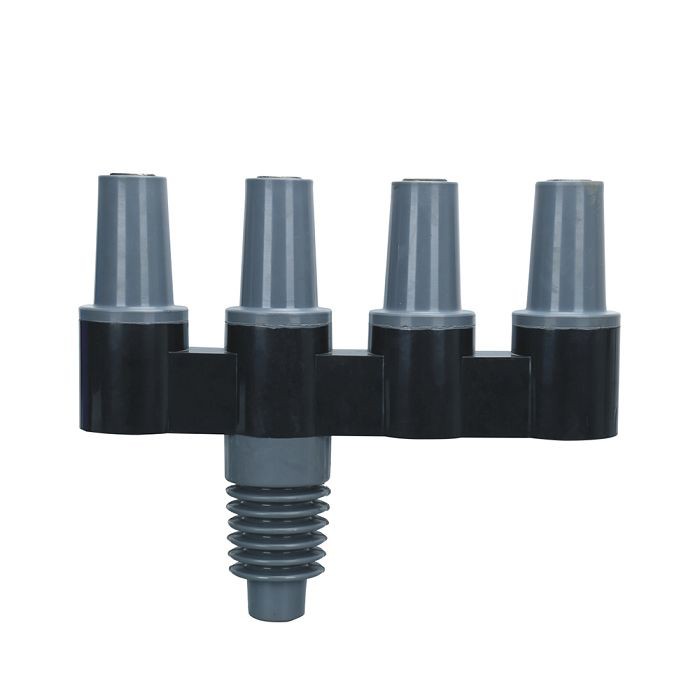

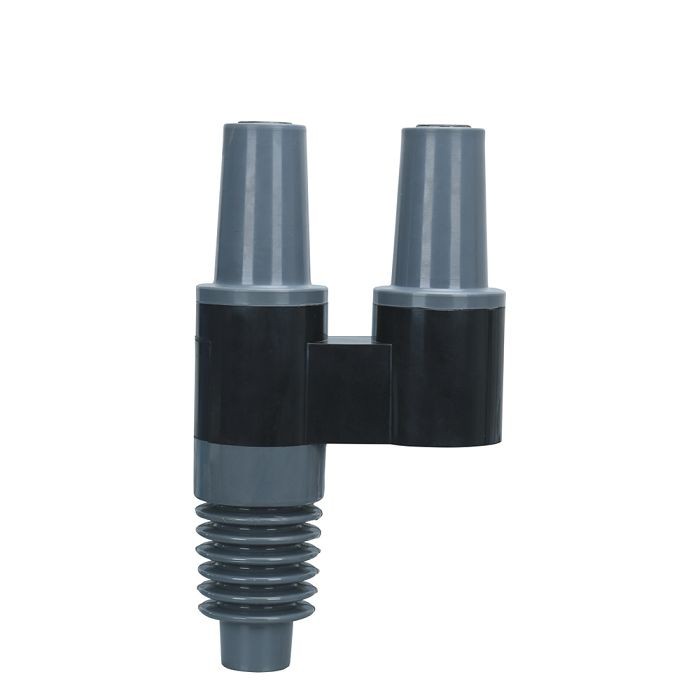

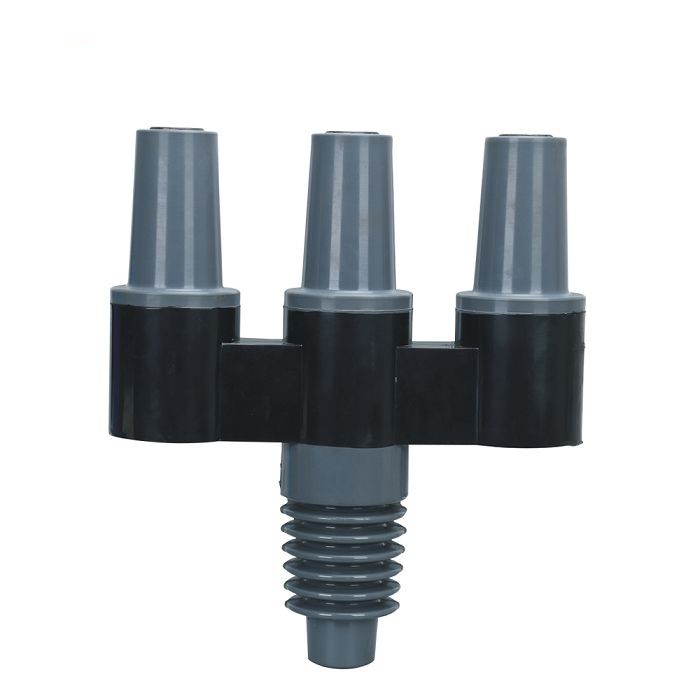

This Load Break Junction supports multiple interface combinations: 2-way branch interface, 3-way branch interface, and 4-way branch interface.

It can be used with the following components: T-type cable connectors (T-I, T-II), insulating caps, extension sleeves, and cable connection accessories.

3. 200A/600A Hybrid Connection Structure

One side of the product provides 2/3/4 200A Loadbreak interfaces and 1 600A Deadbreak interface. This 200A + 600A hybrid interface structure can meet the connection requirements of cables with different capacities and is suitable for complex power distribution network designs.

4. Compliant with International Electrical Standards

The Comewill Load Break Junction fully complies with ANSI/IEEE 386 standards, ISO9001, ISO14001, OHSAS18001, etc.

5. Flexible Installation Design

The 15KV 600A Specific Load Break Junction is equipped with an adjustable mounting bracket, allowing for installation at different angles.
