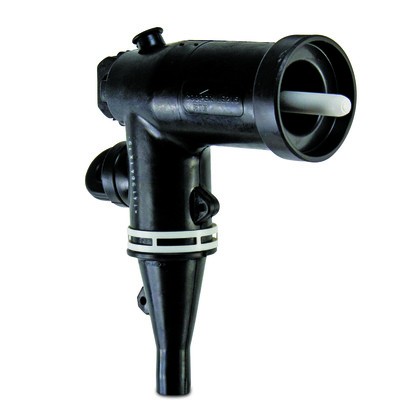

As the professional manufacturer, Comewill would like to provide you high quality 15KV 200A loadbreak elbow connector, which has a reliable structure and strong adaptability, which can meet the efficient connection requirements of the distribution system. It is a high-quality choice in power engineering procurement that combines safety and practicality.
Molded external shielding: The shell is 1/8 inch thick and the peroxide-cured EPDM conductive sheath is wear-resistant and is an integral part of the no-load design.
EPDM insulation: Peroxide curing process, with good stress relaxation characteristics, conducive to ensuring a long service life at high ambient temperatures. This material is compatible with all solid dielectric cable insulation and shielding.
Molded conductive inserts: Used to control electrical stress and provide shielding for compression connectors.
Operating eye: Designed to permit on-off operation of a suitable hot stick tool when energized (under load). It is constructed to withstand 500-lb static tension and 10 ft-lb torsional moment
Compression Lug: It meets all requirements of ANSI C119.4 for Type A connectors.
Test point: Support installation of fault circuit indicators. This point doubles as a voltage presence indicator when used with high impedance equipment.
Cable entry: Semi-conductive rubber layer, used to extend the cable insulation shielding layer and control internal voltage stress; its interference fit with the cable insulation surface ensures sufficient creepage distance and dielectric strength.
Ground tab: Provides a means of connecting drain wires to ensure interference free structures.
White-black-white ID band: Identification elbow with three-phase switching operation and fault closure rating of 3 Ø.
Operator Interface: Used to match any component manufactured to IEEE standards.
Locking ring: Secures the elbow to the mating product. When the applied tension exceeds its initial value of disengagement from the bushing insert mating groove, the load break switch is triggered to achieve a quick disconnect.
Loadbreak probe: Made of tinned copper to ensure smooth current path and support stable load on/off switching operation.
| ⚫ Voltage class: | 15KV |
| ⚫ Max.Rating Phase to Phase: | 14.4 kV |
| ⚫ Max.Rating Phase to Ground | 8.3kV |
| ⚫ AC 1 Minute Withstand: | 34 kV |
| ⚫ DC 15 Minute Withstand: | 53 kV, ≤10 pC |
| ⚫ BIL and Full Wave Crest: | 95 kV |
| ⚫ Minimum Corona Voltage Level: | 11kV |
| ⚫ Continuous: | 200 amps rms |
| ⚫ Switching: | 10 Operations at 200amps rms at 14.4kV |
Core strengths
Safe load disconnection and switching of 15KV 200A loadbreak elbow connector can be achieved without the need for external tools, with convenient and efficient operation;
Adopting a fully shielded and submersible design to ensure the safety of operators in all aspects;
15KV 200A loadbreak elbow connector can be interchangeable with other connectors that comply with the IEEE 386 standard, with strong compatibility;
Provide optional accessories, including load disconnect inserts, insulated plugs, and grounding sleeves, to meet diverse usage needs.
Box type transformers and switchgear
Underground cable trench system
Riser pole for distribution cables (vertical pole for distribution cables)
Wind energy, solar energy, and industrial distribution systems
This quality 15KV 200A loadbreak elbow connector provides a safe and efficient solution for modern medium voltage distribution systems with its sturdy and durable structural design and stable and reliable performance.
