15/24 KV 600A Load Break Junction

Comewill factory’s 15/24 KV 600A Load Break Junction provides safe and stable power connections for medium-voltage networks. The product supports multi-branch configurations and can be combined with T-type cable connectors, insulating caps, and extension tubes to form a reliable separable connection system.

What is a 15/24 KV 600A Load Break Junction?

The 15/24 KV 600A Load Break Junction is a key component used in medium-voltage cable distribution systems. It is designed to provide reliable multi-branch cable connections while maintaining a fully shielded and insulated structure.

When used together with equipment of the same rated value, the junction forms a fully insulated separable connector system, ensuring safe operation during both load break switching operations and fixed disconnect applications.

Product Features

1. Fully Shielded and Fully Insulated Structure

The 15/24 KV 600A Load Break Junction adopts a fully insulated and shielded design, which protects the internal conductor and prevents external environmental interference.

Advantages include:

Improved electrical safety

Prevention of accidental contact

Reliable insulation performance

Long service life in harsh environments

2. Flexible Multi-Branch Cable Connection

The junction typically uses a three-column design, enabling multiple cable branches to be connected easily.

It can be combined with:

T-type cable connectors (T-I and T-II)

Insulating protective caps

Extension connectors

Other medium-voltage accessories

3. Support for Load Break and Dead Break Operations

The product is designed to support two important operating scenarios:

Load Break Operation

Allows safe switching operations under load conditions.

Dead Break Operation

Provides reliable disconnection when the circuit is not energized.

4. Adjustable Mounting Design

The junction is equipped with adjustable mounting brackets.

Installation advantages include:

Flexible installation angles

Support for flat surfaces

Compatibility with curved equipment structures

Easy integration with switchgear cabinets and RMU systems

Description

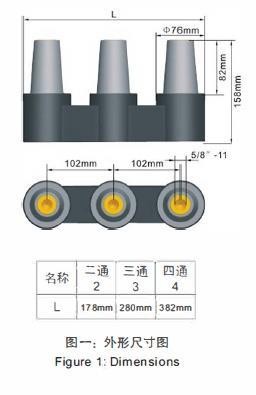

Dimensions

Product details and application scope

Key specifications
Voltage level: 15kV or 24kV, designed specifically for medium voltage distribution networks.
Rated current: 600A, capable of reliably supporting high load operation.

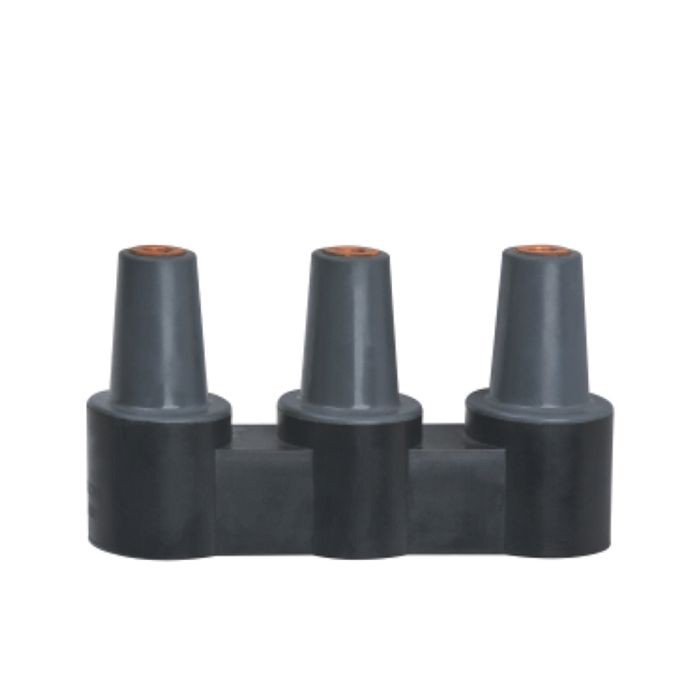

Connection structure: Usually adopts a three column design, allowing for simple and convenient multi branch connections.
Operation type: Standard manual operation; Some models have vertical rotation or horizontal switching functions.
