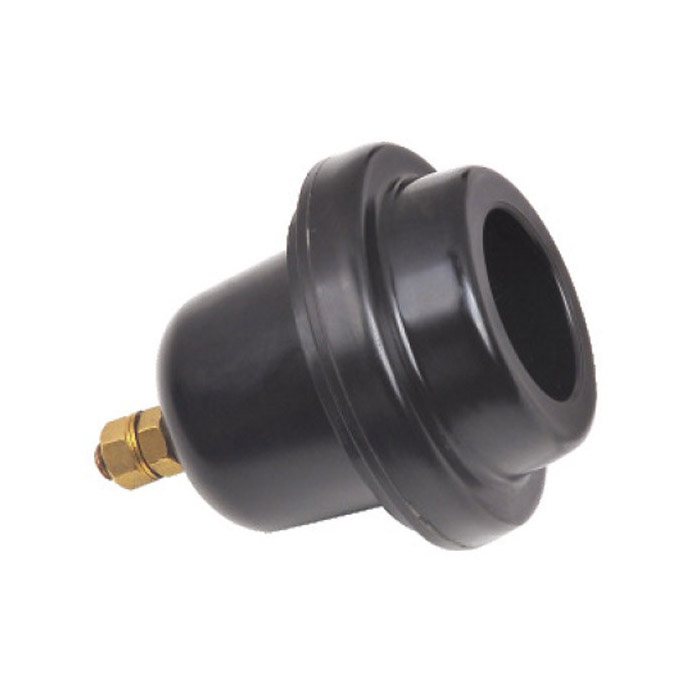

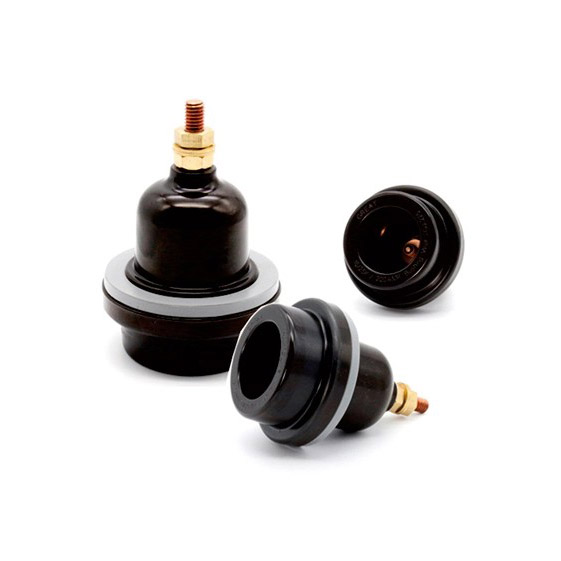

On the gas side of the transformer, Comewill factory's high quality 15KV 200A High Voltage Bushing Well is perfectly compatible with various bushing inserts. All supporting inserts strictly comply with the relevant requirements of ANSI/IEEE 386 standard - as an authoritative specification in the field of insulation sleeves for electrical equipment (especially transformers), this standard provides clear and strict regulations on product design, testing procedures, and performance indicators. Based on this standard, the casing well and inserts can not only calmly cope with the test of complex working conditions, ensuring the long-term stable operation of transformers, but also guarantee the uniform quality of inserts, allowing users to choose reliable components that have undergone rigorous testing and meet high industry standards with confidence.
At present, this 15KV 200A High Voltage Bushing Well made in China has been widely used in high-voltage circuits of box type transformers, substations, and switchgear. The load disconnect casing insert can be directly screwed into the casing well, with the same usage effect as the integrated load disconnect casing. At the same time, the product supports the use of various cable accessories such as sleeve inserts and rotatable through inserts, making it highly adaptable to different scenarios.
Our 15KV 200A High Voltage Bushing Well is made of high-quality insulation materials, and when combined with products of the same rated value, it can form a fully shielded insulation connection with outstanding insulation performance and solid protection effect. Whether it is safety, compatibility, or durability, it can meet the core requirements of high-voltage electrical equipment procurement and is the preferred component to ensure the stable operation of the power system.
| Item | Bushing Well |
| Rated Voltage | 8.3/14.4kV |
| Rated Current | 200A |
| AC Withstand Voltage | 42kV for 1 min |
| Partial Discharge | ≤10pC |
| Impulse Withstand Voltage(10 times for each polarity) | 95kV |
As a key supporting component of high-voltage electrical equipment, Welcome (Wenzhou) Electric Co., Ltd. has launched a 15KV 200A High Voltage Bushing Well, which has become an ideal choice for the procurement of transformers, substations, and switchgear due to its multiple core advantages, fully meeting the high reliability and safety requirements of the power system.
1. Authoritative standard adaptation, strong compatibility
Specially designed to match load disconnect bushings that comply with IEEE 386 standards, accurately matching mainstream equipment specifications in the industry, without the need for additional adaptation adjustments, it can be directly integrated into existing high-voltage circuit systems, significantly reducing installation and debugging costs, and possessing both adaptability and universality.
2. Compact structure design, high space utilization
Adopting an optimized compact structure layout, while ensuring that core performance is not affected, the product volume and occupied space are minimized to the greatest extent possible. Whether used in enclosed spaces for box type transformers or dense wiring scenarios in substations, it can be flexibly installed and deployed, effectively improving the overall integration efficiency of the equipment.
3. High quality epoxy material with outstanding durability
Made with high-quality epoxy resin raw materials, this material has high insulation performance, anti-aging ability and mechanical strength, and can calmly resist electric field impact, humidity erosion and temperature fluctuation under high voltage environment. It is not easy to deform and crack after long-term use. Its service life is far longer than that of ordinary materials, reducing the frequency of maintenance and replacement in the later period.
4. Strict standard testing ensures guaranteed performance
Each 15KV 200A High Voltage Bushing Well is strictly tested in accordance with the IEEE Std 386-2006 standard, covering key indicators such as insulation strength, voltage resistance, and mechanical stability. All test data meets or exceeds the standard requirements, ensuring the continuous and stable operation of the product under complex working conditions and laying a solid defense for the safe and reliable power supply of the power system.
5. Support customized services to meet personalized needs
In addition to standard products, we fully consider the special application scenarios of different customers and can provide customized solutions based on your personalized needs such as product appearance size, installation method, performance parameters, etc. If you need to learn more about customization details or obtain exclusive quotes, please feel free to contact us at any time. We will provide you with professional technical support and attentive service.
