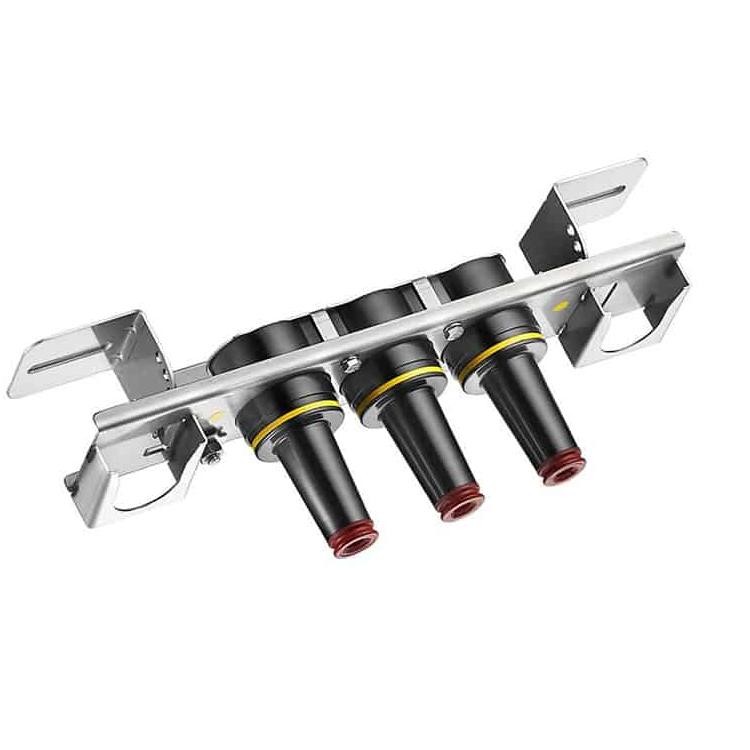

15KV 200A Loadbreak Junctio

Comewill factory’s 15KV 200A Loadbreak Junction features an all-copper current-carrying path, ensuring reliable, consistent performance no matter the conditions.
It fully meets IEEE Standard 386 requirements, and is completely interchangeable with competitors’ products and other mating components that also comply with IEEE Standard 386. When installed with matching parts, this loadbreak junction delivers a fully shielded connection, ideal for loadbreak applications.

What is a 15KV 200A Loadbreak Junction?

A 15KV 200A Loadbreak Junction is a medium-voltage cable connection device used in power distribution systems to safely connect, branch, and sectionalize 15kV underground cables while allowing loadbreak (live switching) operation. It typically includes multiple 200A interfaces (such as 2, 3, or 4 ways) that are internally bused together, enabling flexible loop, tap, or splice configurations. Built to IEEE Standard 386, it ensures fully shielded, safe, and reliable operation in pad-mounted transformers, switchgear, and underground vault applications.

PRODUCTION TESTS

Tests conducted in accordance with IEEE/ANSI Standard 386.
Minimum Corona Voltage Level – 11 kV
AC 1 Minute Withstand – 34 kV

Tests conducted in accordance with Chardon manufacturing process requirements:
Physical Inspection
Periodic Dissection
Periodic X-ray Analysis

VOLTAGE RATINGS
Voltage Class 15 kV
Max. Rating Phase to Phase 14.4 kV
Max. Rating Phase to Ground 8.3 kV
AC 1 Minute Withstand 34 kV
DC 15 Minute Withstand 53 kV
BIL and Full Wave Crest 95 kV
Minimum Corona Voltage Level 11 kV
CURRENT RATINGS
Continuous：200 amps rms
Switching：10 operations at 200 amps rms at 14.4 kV
Fault Close：10,000 amps rms symmetrical at 14.4 kV for 0.17 s after 10 consecutive successful switching operations
Short Time：
• 10,000 amps rms symmetrical for 0.17 s
• 3,500 amps rms symmetrical for 3.0 s

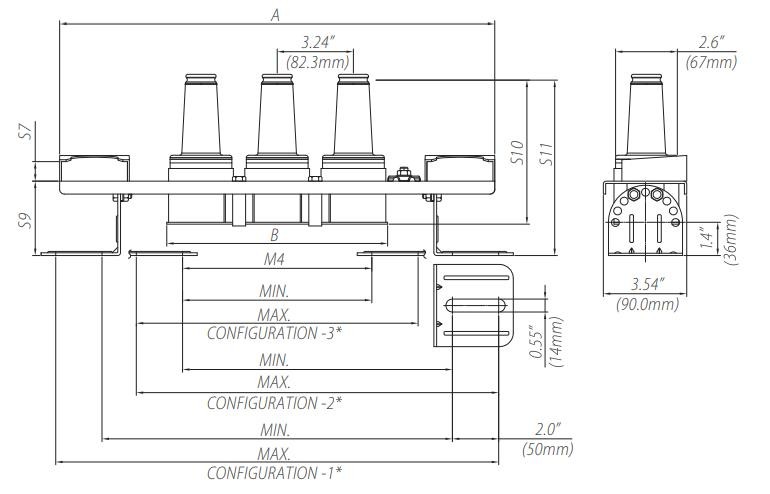

Junction with Bracket Dimensional Information

Loadbreak Operation Steps

1. Fasten the clampstick securely to the pulling eye.
2. Don’t apply any pulling force — just give the connector a slight clockwise twist to break the surface friction between the elbow and bushing.
3. Pull the connector straight out of the bushing with a quick, firm motion. Make sure to keep the connector away from any ground plane.
4. Place the connector on the proper accessory device, following that accessory’s operating instructions.
5. Use a clampstick to put an insulated protective cap (with drain wire connected to system ground) on any exposed energized bushing.

FAQ

What is the main function of a 15KV 200A Loadbreak Junction?
It is used to sectionalize, loop, tap, or splice medium-voltage cables while allowing safe loadbreak switching in energized distribution systems.
Is it compatible with other brands?
Yes, it fully complies with IEEE Standard 386™, ensuring complete interchangeability with other compatible separable insulated connector systems.
Can it be used in underground installations?
Absolutely. It is specifically designed for pad-mounted equipment and underground vault applications where moisture, dust, and space constraints are common.
What safety features does the 15KV 200A Loadbreak Junction provide?
It offers fully shielded EPDM insulation, controlled loadbreak operation, high impulse withstand capability, and stable arc interruption performance for safe switching.
