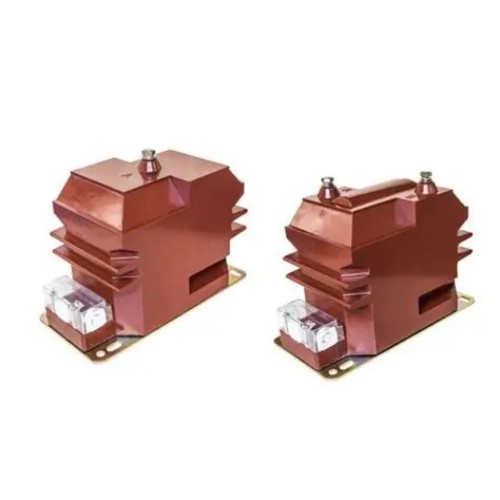

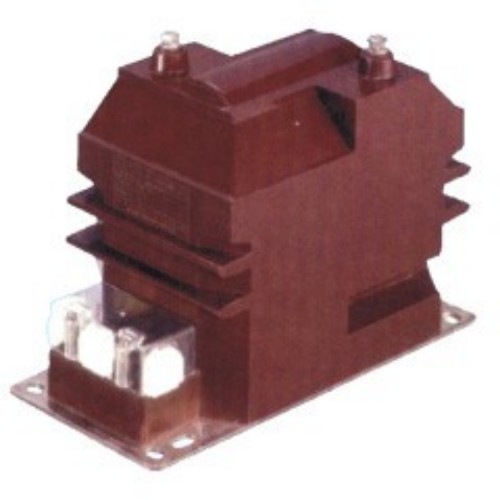

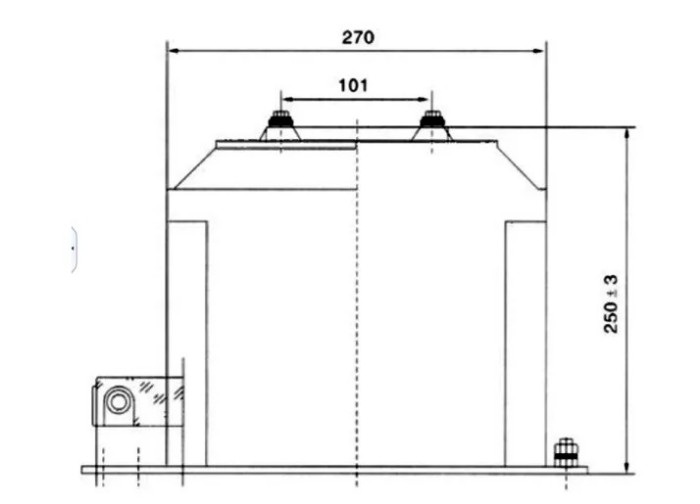

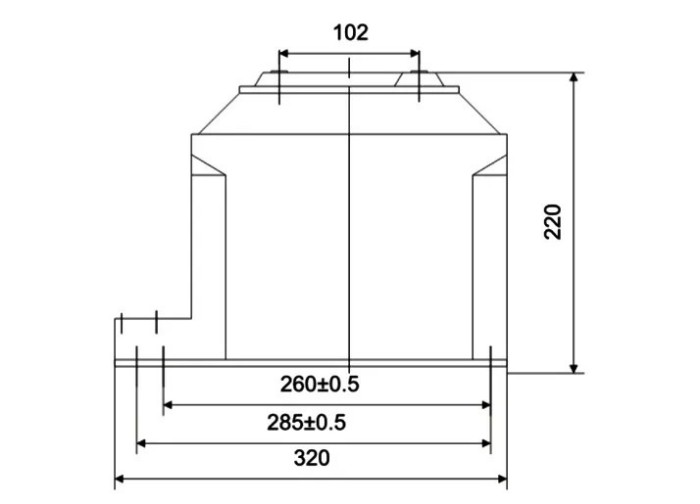

High quality JDZ10-3/6/10A Voltage Transformer is offered by China manufacturer Comewill. It is engineered for critical applications, they deliver reliable performance for voltage measurement, energy metering, real-time monitoring, and relay protection in medium-voltage power systems.
The JDZ10 series is designed to accommodate voltage levels of 3kV, 6kV, and 10kV, with compatibility for both 50Hz and 60Hz frequencies, making them adaptable to diverse medium-voltage operating conditions. Manufactured in strict accordance with IEC 186 and GB1207-2006 standards, these transformers provide a stable and dependable foundation for system measurement and protection. As a trusted China-based factory, Comewill ensures that every unit meets rigorous quality benchmarks.

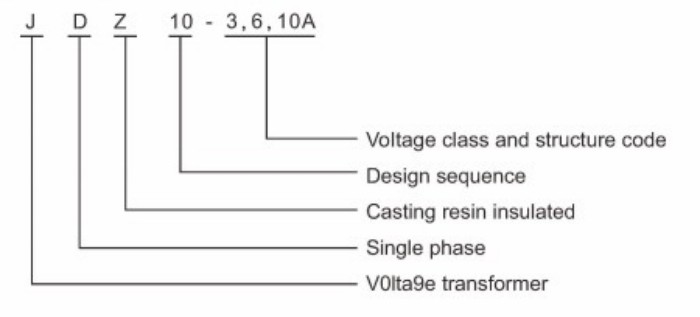

The model designation of Comewill’s RZL-10 and JDZ10-3/6/10 voltage transformers clearly defines the device’s core attributes:
J: Voltage Transformer – specifies the equipment category.
D: Single Phase – suitable for single-phase power system applications.
Z: Epoxy Resin Cast Insulation – enhances insulation performance and durability.
3, 6, 10: Voltage Levels – identifies compatibility with 3kV, 6kV, and 10kV systems.
The transformers support both single-phase and three-phase wiring configurations, providing flexibility for various installation requirements.

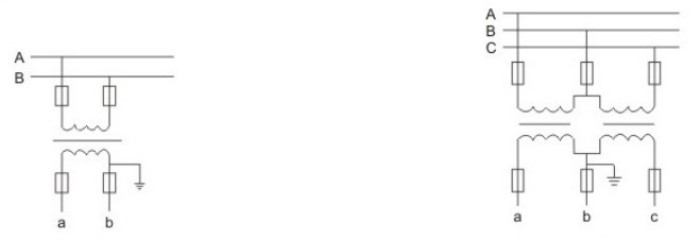

Single-phase line wiring diagram
Three-phase line wiring diagram
Wriring diagram of single phase line Wriring diagram of three phase line
To ensure optimal performance and extended service life, the following operating conditions are recommended for Comewill JDZ10-3/6/10A Voltage Transformer:
Altitude: Suitable for installation up to 3,000 meters above sea level, with stable operation in high-altitude areas without special modifications.
Ambient Temperature: Operating temperature range of -5°C to +40°C to prevent insulation degradation and accuracy deviation.
Relative Humidity: Maximum 65% at 20°C to avoid moisture-induced aging of internal components.
Pollution Level: Designed for Class II pollution environments, capable of handling minor indoor or outdoor contamination.
Installation Environment: Should be free from corrosive gases to protect the casing and internal windings.
If the installation environment on your end is special (such as high humidity and corrosive gases), you can communicate in advance to customize an adaptation plan!
The JDZ10-3/6/10A Voltage Transformer is manufactured in accordance with GB20840.3-2013 and GB20840.1-2010 standards, ensuring full compliance with national requirements. Key specifications include:
Load Power Factor: cos Φ = 0.8 (lag), aligned with conventional secondary circuit characteristics.
Creepage Distance: Designed for Pollution Level II, minimizing insulation flashover risks.
Performance: Stable metering and protection response under standard operating conditions.
| Type | Rated VoltageRatio (V) | Frequency(Hz) | Accuracy Class andRated Output (VA) | LimitOutput(VA) | RatedInsulationLevel (kV) | Remark | |||
| 0.2 | 0.5 | 1 | 6P | ||||||
| JDZ10-3A | 3000/100 | 50.6 | 150 | 30 | 60 |
|
150 | 3.6/25/40 | Same as RZL10 |
| JDZ10-6A | 6000/100 | 15 | 30 | 60 |
|
150 | 7.2/32/60 | ||
| JDZ10-10A | 10000/100 | 15 | 30 | 60 |
|
150 | 12/42/75 | ||
| JDZ10-3B | 3000/100 | 25 | 50 | 90 |
|
300 | 3.6/25/40 | ||
| JDZ10-6B | 6000/100 | 25 | 50 | 90 |
|
300 | 7.2/32/60 | ||
| JDZ10-10B | 10000/100 | 25 | 50 | 90 |
|
300 | 12/42/75 |
|
|
| JDZx10-3AG | 3000/√3/100/√3/100/3 |
|
40 | 60 | 50 | 150 | 3.6/25/40 | ||
| JDZx10-6AG | 6000/√3/100/√3/100/3 |
|
40 | 60 | 50 | 150 | 7.2/32/60 | ||
| JDZx10-10AG | 10000/√3/100/√3/100/3 |
|
40 | 60 | 50 | 150 | 12/42/75 | ||
| JDZx10-3BG | 3000/√3/100/√3/100/3 |
|
40 | 90 | 50 | 400 | 3.6/25/40 | ||
| JDZx10-6BG | 6000/√3/100/√3/100/3 |
|
50 | 90 | 50 | 400 | 7.2/32/60 | ||
| JDZx10-10BG | 10000/√3/100/√3/100/3 |
|
50 | 90 | 50 | 400 | 12/42/75 | ||
1. What are the key features of this JDZ10-3/6/10A Voltage Transformer?
Epoxy resin cast insulation, fully sealed, single-phase design, compact size, and high durability.
2. What voltage levels and frequencies are supported?
3kV, 6kV, and 10kV, compatible with 50Hz or 60Hz systems.
3. What standards does it comply with?
IEC 186 and GB1207-2006 (GB20840.3-2013 / GB20840.1-2010).
4. What are the required operating conditions?
Altitude ≤3000m, temperature -5°C to +40°C, humidity ≤65% at 20°C, Class II pollution level, no corrosive gases.
5. Can it be customized for special environments?
Yes, Comewill offers customization for high humidity or corrosive conditions.
6. What do the model letters mean?
J = Voltage Transformer, D = Single Phase, Z = Epoxy Resin Cast Insulation, 3/6/10 = Voltage Level.
7. What accuracy classes are available?
0.2, 0.5, 1, and 6P, with rated outputs from 15VA to 90VA.
