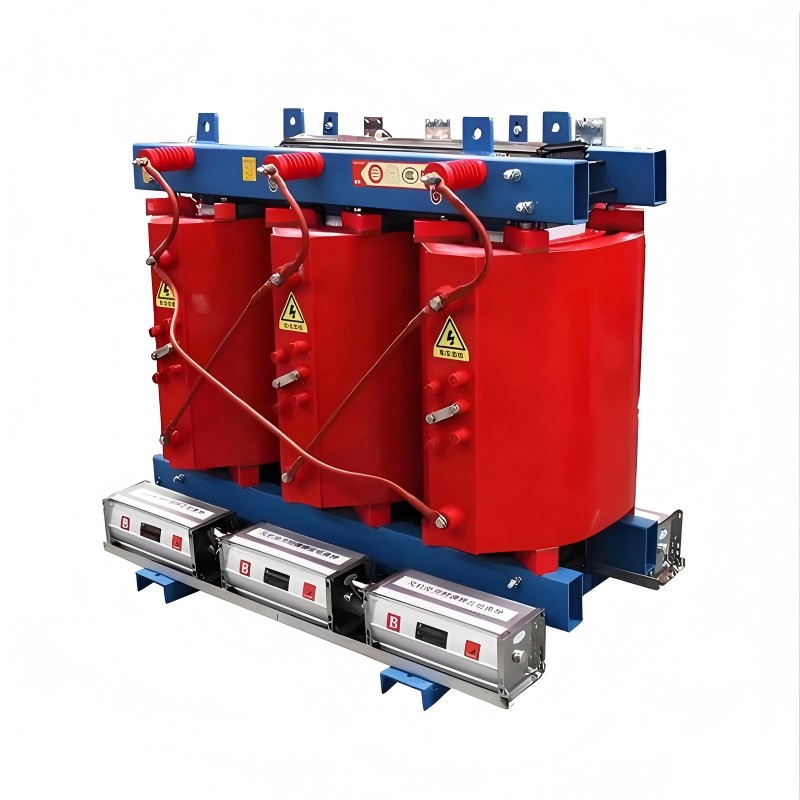

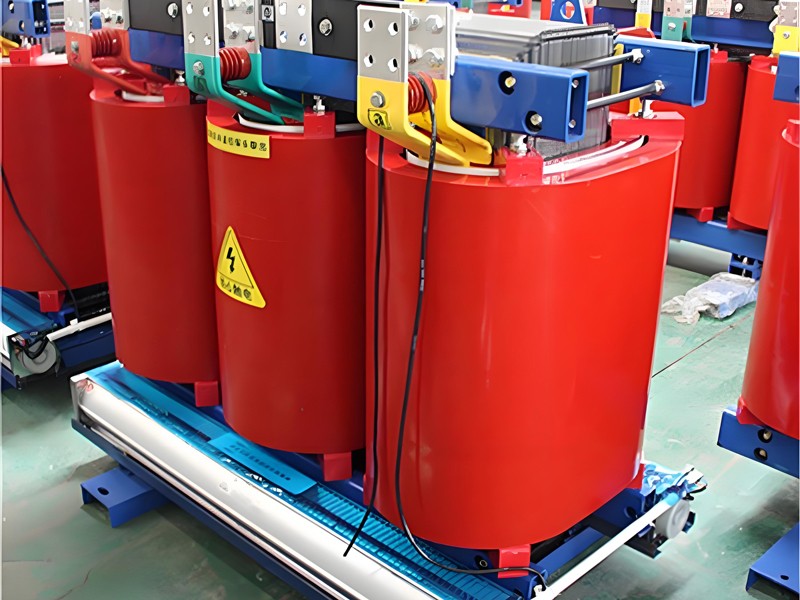

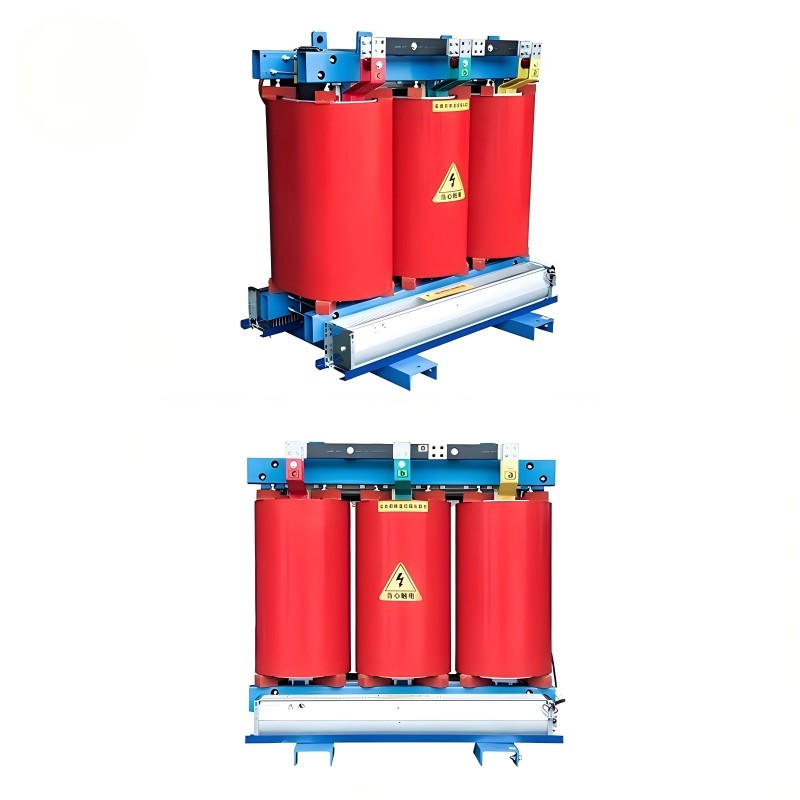

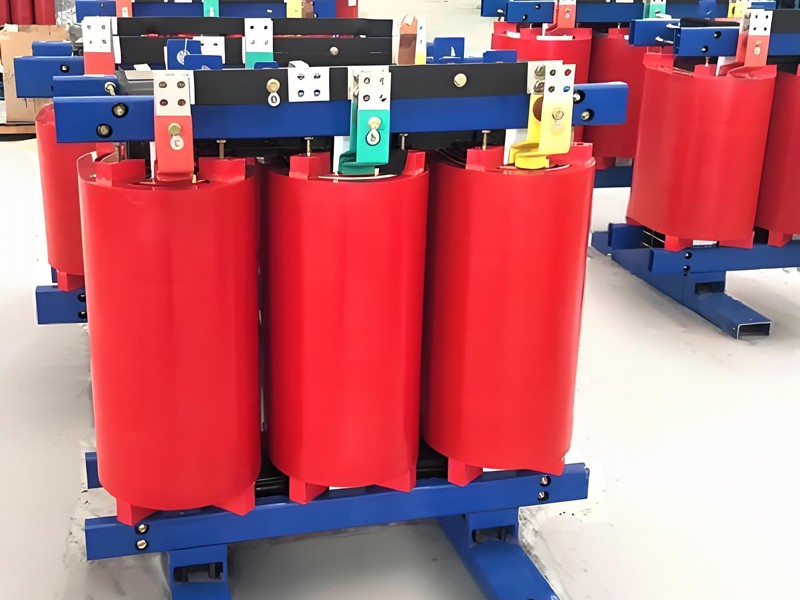

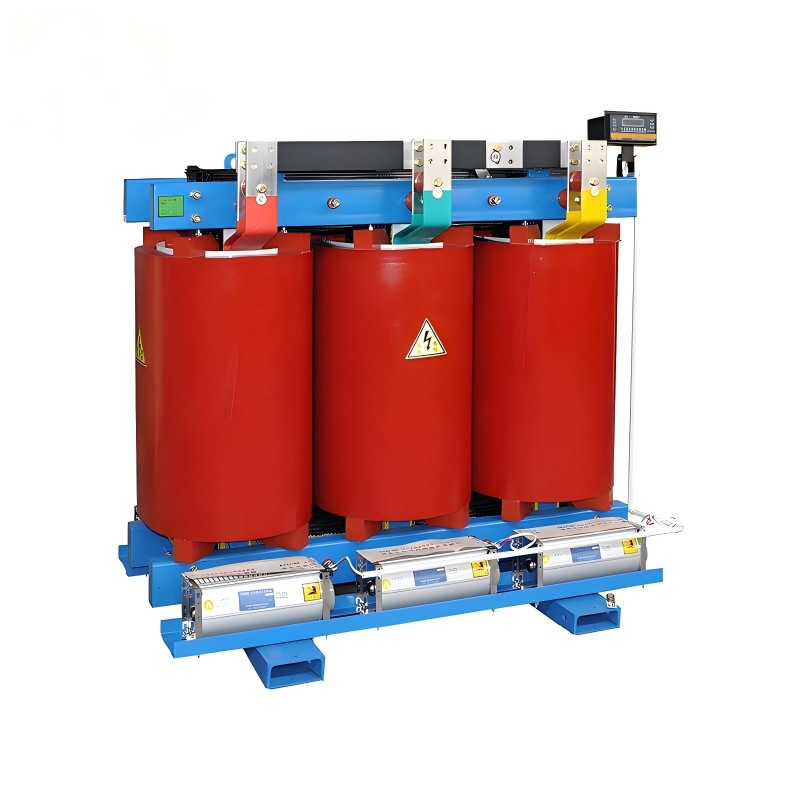

SCBH Series 10kV Three Phase Dry-type Amorphous Transformer

High-quality SCBH Series 10kV Three Phase Dry-type Amorphous Transformers from China are available from Comewill, covering a voltage range of 10-35/0.4kV and a capacity of 30-5000kVA. They can withstand high temperatures and operate stably. Advanced materials and optimized design ensure high efficiency and long lifespan. They support natural or forced air cooling and feature a built-in temperature control system for real-time monitoring, ensuring equipment safety. Compared to traditional silicon steel transformers, they offer lower losses and are safer to use.

What is an SCBH Series 10kV Three-Phase Dry-type Amorphous Transformer?

The SCBH Series 10kV Three Phase Dry-type Amorphous Transformer is a dry-type transformer with a core made of amorphous alloy materials. Compared to traditional silicon steel sheets, amorphous alloys offer lower iron losses and superior magnetic properties, significantly reducing energy consumption and making the entire power distribution system more efficient. It is suitable for heavy-duty industrial power distribution systems, residential power distribution (residential areas, hospitals, office buildings), energy-efficient renovation projects, and power supply scenarios in noise-sensitive areas.

Advantages Compared to Competitors:

1. Energy Consumption and Operating Costs: Compared to traditional silicon steel sheet transformers, the SCBH Series 10kV Three Phase Dry-type Amorphous Transformer reduces no-load losses by approximately 70%, and load losses are also significantly reduced, resulting in lower long-term operating costs.

2. Safety and Environmental Protection: No oil immersion is required, eliminating the risk of oil leakage and concerns about fire or pollution.

3. Noise Control: Utilizing advanced heat dissipation and structural design, noise levels are below 55dB, allowing for long-term use in noise-sensitive environments.

4. Easy Maintenance: The dry-type design reduces maintenance frequency, and the built-in temperature control system provides real-time monitoring, preventing overheating and malfunctions in advance.

Key Features:

1. Ultra-Low Losses, High Energy Efficiency: The amorphous alloy core significantly reduces no-load and load losses, improving energy utilization. The SCBH Series 10kV Three Phase Dry-type Amorphous Transformer saves approximately 30% more energy than traditional silicon steel sheet transformers, fully complying with national energy conservation and emission reduction standards and reducing long-term operating costs.

2. Wide Voltage and Large Capacity Coverage: Its voltage range is 10-35/0.4KV, and its capacity is 30-5000KVA, meeting various industrial and residential needs. It can operate stably in both large factory power distribution and small residential building power supply.

3. Dry-type Design, Environmentally Friendly and Safe: Dry-type transformers do not require insulating oil, avoiding environmental pollution and safety hazards caused by oil leaks. Low noise control allows for use in noise-sensitive areas such as residential areas, hospitals, and schools without concerns about disturbing residents.

4. High Temperature Resistance and Mechanical Strength

Made with high-quality materials, it boasts high temperature resistance and mechanical strength, enabling stable operation in complex industrial environments and ensuring long-term reliability.

5. Heat Dissipation and Temperature Control Design

It can be equipped with either natural cooling or forced air cooling depending on the operating environment, ensuring efficient heat dissipation even under overload conditions. A built-in temperature control system monitors in real time; if the temperature exceeds the limit, it automatically activates the fan for cooling, triggers an alarm, or even automatically shuts down the machine, ensuring the safety of equipment and personnel.

Technical Specifications

Note: The above data is subject to change due to technical improvement.
