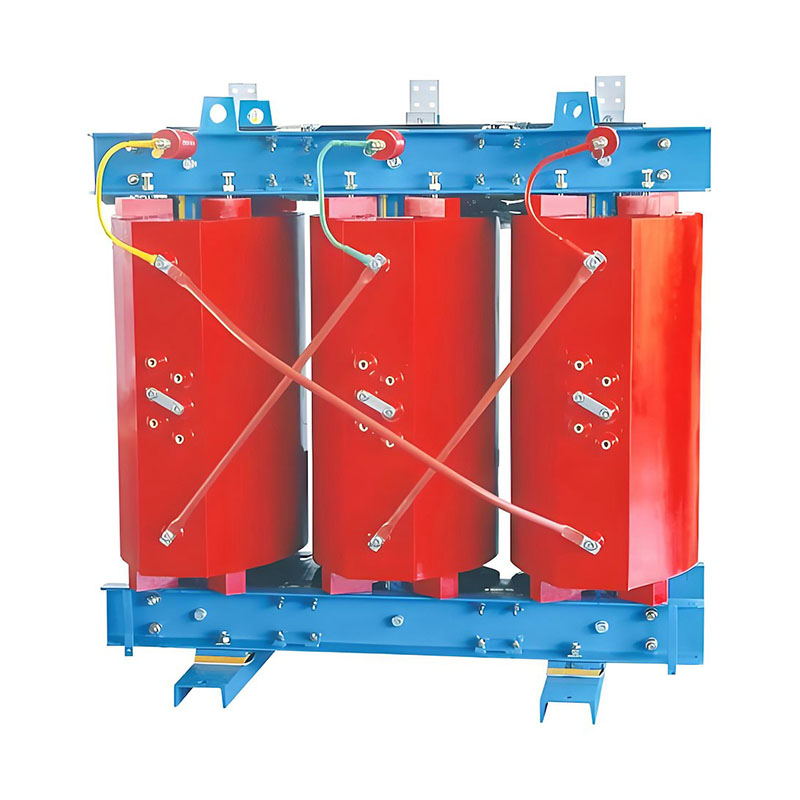

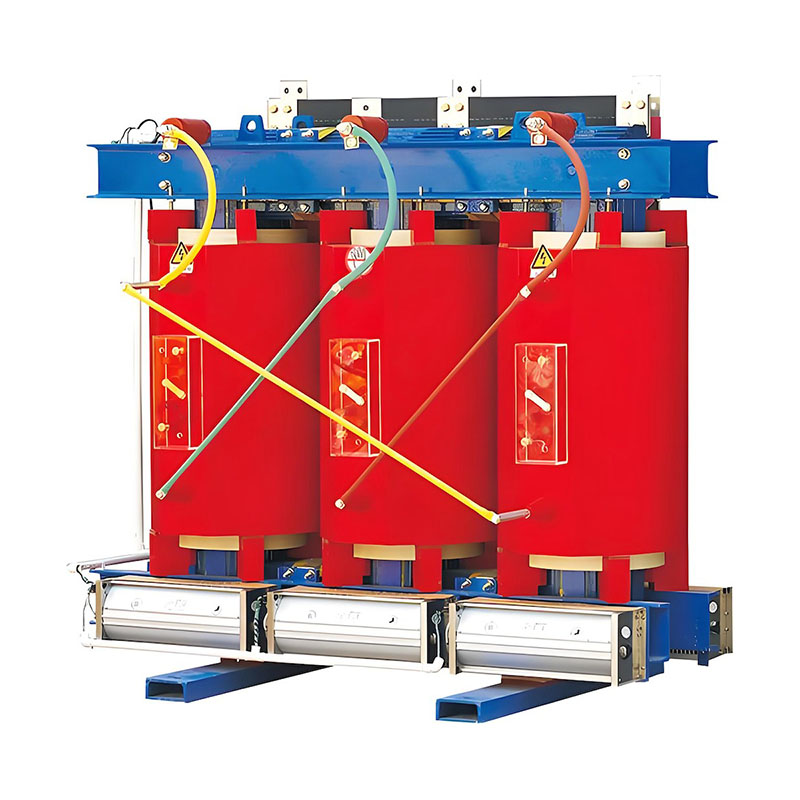

SCB11 Series Epoxy Resin Cast Dry-Type Transformers

Source high-quality SCB11 Series Epoxy Resin Cast Dry-Type Transformers from Comewill, a professional manufacturer in China. Our SCB11 series utilizes advanced vacuum pressure epoxy resin casting technology to form a fully sealed insulation system, providing excellent moisture resistance, dust resistance, and environmental resistance. The products cover voltages from 10–35/0.4kV and capacities from 30–3150kVA, offering safe and stable operation, low noise, and low maintenance costs. They are suitable for industrial, commercial, and public utility power distribution systems.

What are SCB11 Series Epoxy Resin Cast Dry-Type Transformers?

Comewill SCB11 Series Epoxy Resin Cast Dry-Type Transformers employ vacuum pressure epoxy resin casting technology to form a completely sealed insulation system for the windings, effectively preventing damage from moisture, dust, and other environmental factors. Even in humid or complex industrial environments, they maintain excellent insulation performance, significantly extending equipment lifespan.

Component Advantages

The core utilizes high-permeability grain-oriented silicon steel sheets combined with a step-lap process to optimize the magnetic circuit structure, thereby minimizing hysteresis and eddy current losses. This not only improves operating efficiency but also reduces energy waste.

Applications

With its high stability and flexible configuration, the SCB11 Series Epoxy Resin Cast Dry-Type Transformers can be applied to various scenarios such as industrial production, commercial buildings, power facilities, and public infrastructure, providing users with safe, efficient, and durable power supply.

Core Product Features

1. Wide Voltage and Capacity Range

The SCB11 Series Epoxy Resin Cast Dry-Type Transformers cover voltage levels of 10–35/0.4kV and a capacity range of 30–3150kVA.

Whether for residential power distribution systems, commercial building power supply, or the power needs of large industrial equipment, this series of transformers can operate stably and meet different load requirements.

2. High-Efficiency and Energy-Saving Design

Utilizing a high-quality, high-permeability silicon steel core and optimized winding structure design, no-load and load losses are significantly reduced.

Through advanced manufacturing processes and precision assembly technology, the transformer maintains high efficiency under various load conditions, meeting national energy-saving standards and effectively reducing long-term electricity costs.

3. Environmental Protection and Safety Performance

The SCB11 Series Epoxy Resin Cast Dry-Type Transformers use epoxy resin insulation casting technology, eliminating the need for transformer oil and completely avoiding oil leakage and environmental pollution problems.

This material also possesses flame-retardant, explosion-proof, and excellent fire-resistant properties, allowing direct installation at the load center.

4. Ultra-Low Noise Operation

Through optimized core and winding structure, operating vibration and noise are significantly reduced.

The no-load noise of the SCB11 Series Epoxy Resin Cast Dry-Type Transformers is ≤ 55dB, making them ideal for locations with strict environmental noise requirements, such as schools, hospitals, and residential areas.

5. Maintenance-Free Design

The SCB11 series is designed for maintenance-free operation, requiring no oil tank or storage system and eliminating the risk of oil leakage.

Routine maintenance only requires simple temperature rise and visual inspection, significantly reducing operating and maintenance costs and providing greater peace of mind for users.

6. Strong Environmental Adaptability

It has excellent moisture resistance, operating stably even in 100% humidity environments.

After shutdown, the equipment can be put back into operation without pre-drying, making it ideal for use in humid or complex environments.

Different protection levels of enclosures can be configured to adapt to various industrial environments.

7. Compact Structural Design

The SCB11 series features a compact structure and small footprint, making it ideal for installation in space-constrained locations such as: high-rise building substations, subway traction substations, and commercial building power centers.

Technical Specifications

Note: The above data is subject to change due to technical improvement.
