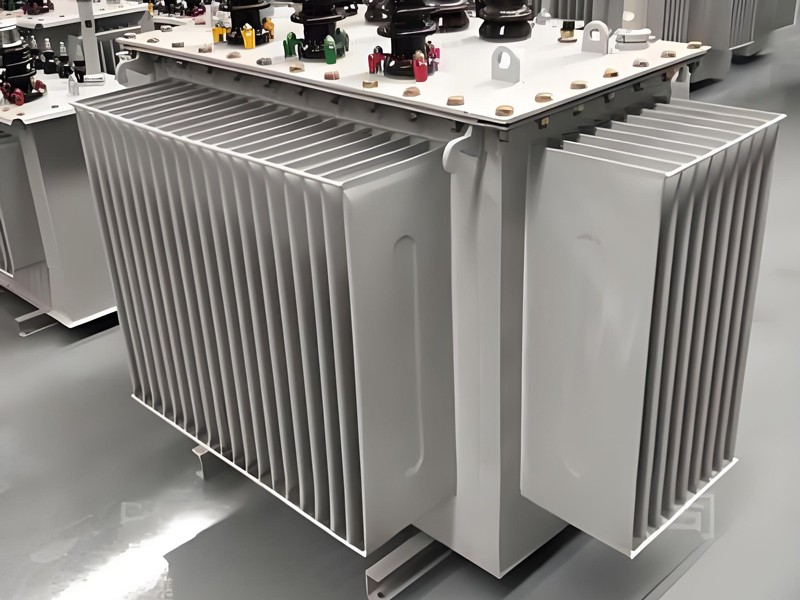

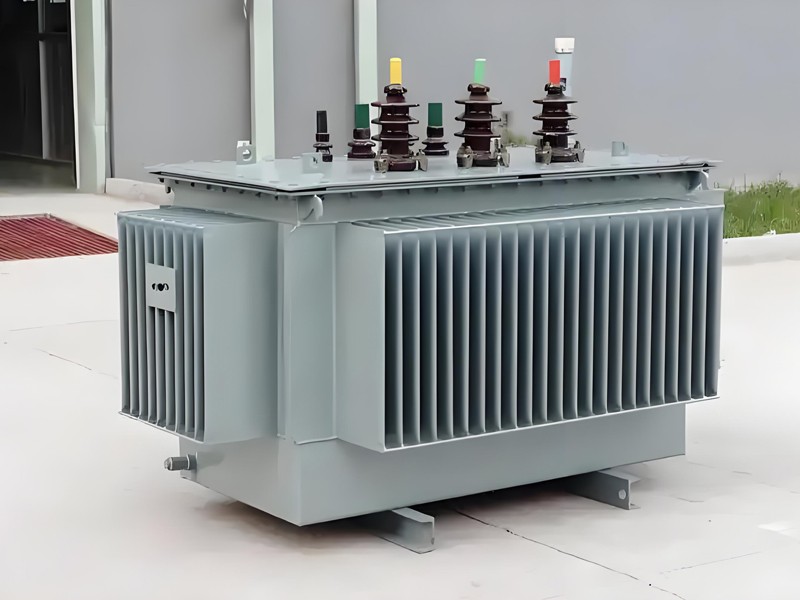

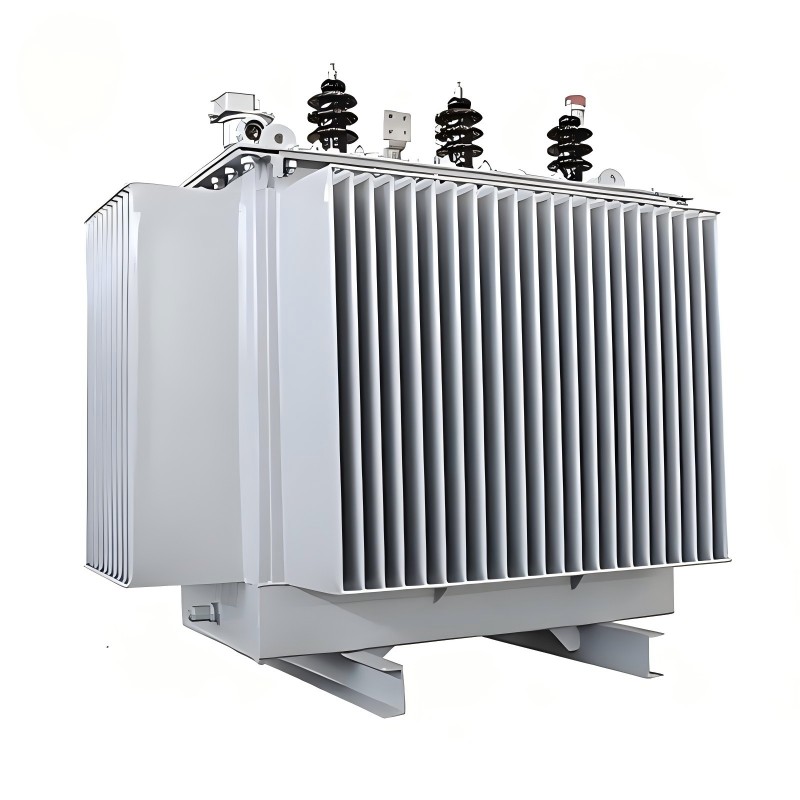

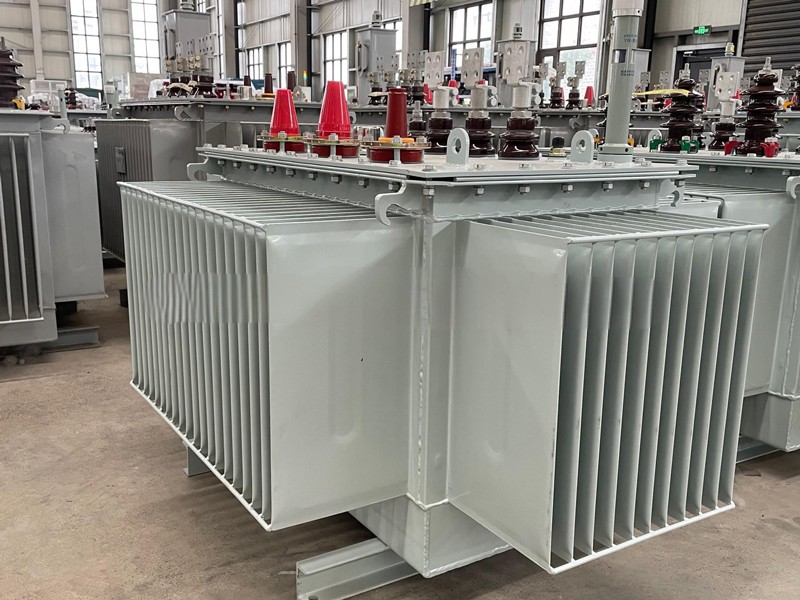

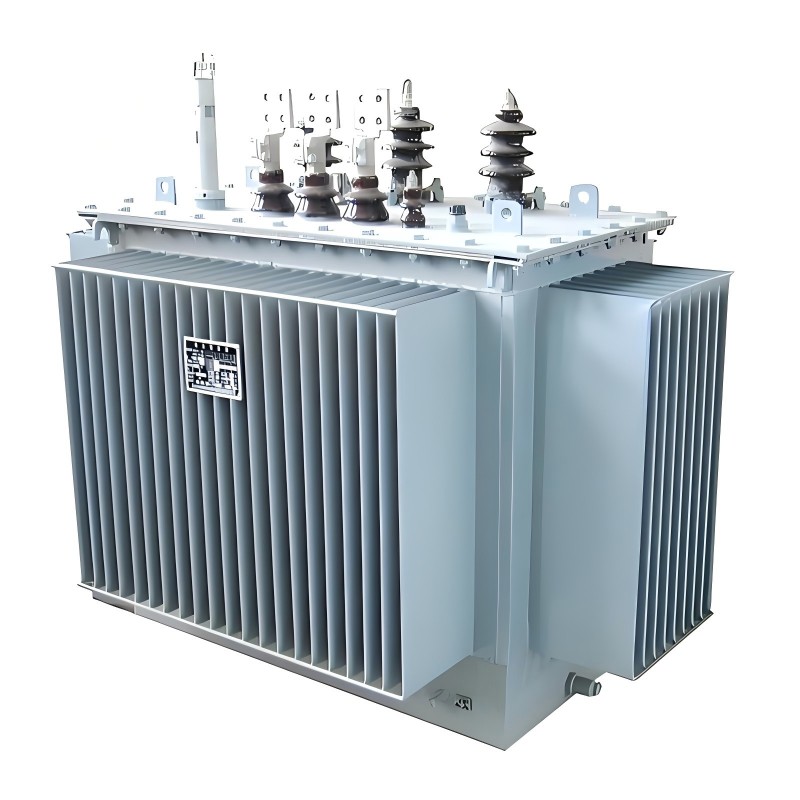

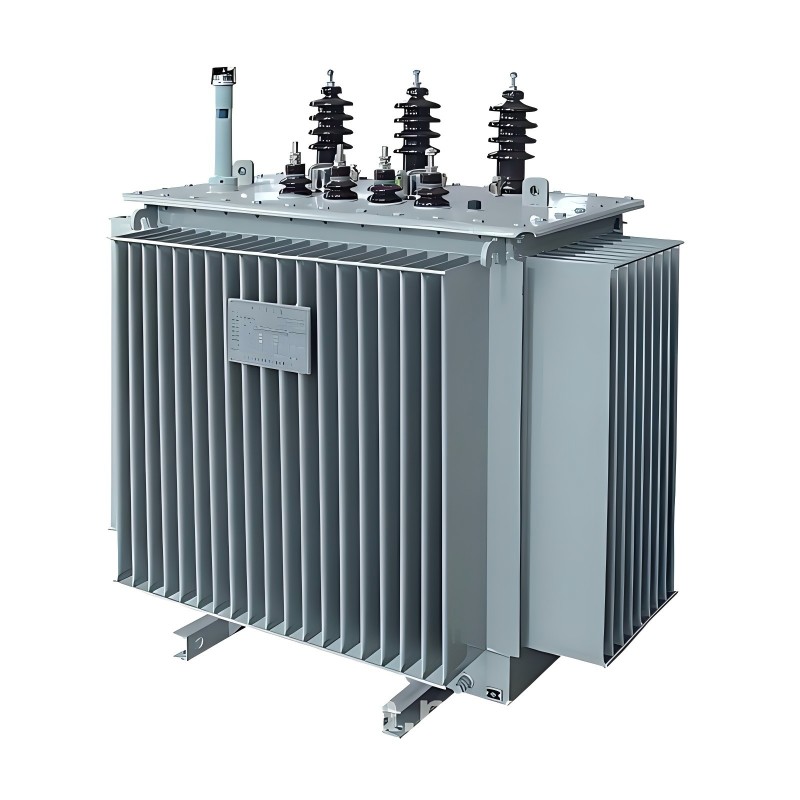

S22 Series 10kV Energy Efficiency Oil-Immersed Transformer

As the professional manufacture, Comewill would like to provide you customized S22 Series 10kV Energy Efficiency Oil-Immersed Transformer. And we will offer you after-sale service and timely delivery. It adopts a fully sealed structure design, which fully complies with China's first level energy efficiency standards. The iron core is made of high-quality cold-rolled silicon steel sheets, combined with stepped overlapping laminated technology, and also integrates enhanced insulation system and intelligent temperature control function to ensure stable and reliable operation of the equipment.

This S22 Series 10kV Energy Efficiency Oil-Immersed Transformer made in China not only has strong overload capacity and low-noise operation characteristics, but is also designed to be maintenance free, making it very worry free to use. Its high protection level enables it to work stably in harsh environments such as humidity and dust, providing a safe, reliable, and environmentally friendly power conversion solution for distribution systems.

Features

Voltage and Capacity: The voltage level can cover 10 to 35/0.4kV, and the capacity can range from 30 to 3150kVA. Whether it is for distributing electricity to households or supplying power to factories, it can basically hold up. First level energy efficiency, significant energy saving: fully compliant with China's highest energy efficiency standards, compared to the S20 series, the no-load loss is reduced by ≥ 10%, and the load loss optimization exceeds 5%, which can bring considerable energy-saving effects throughout the entire service life.

Fully sealed moisture-proof structure: The sealing design of the corrugated oil tank effectively prevents the deterioration of oil quality due to oxidation. The protection level of IP55 enables S22 Series 10kV Energy Efficiency Oil-Immersed Transformer to resist the erosion of moisture, salt spray, and dust, achieving maintenance free operation.

Wide temperature range stable operation: equipped with enhanced insulation system and intelligent temperature control function, it can ensure stable and reliable operation of equipment even in extreme environments ranging from -25 ℃ to+45 ℃. Environmentally friendly and low-noise design: adopting stepped overlapping iron core technology, combined with vibration reduction and noise reduction measures, maximizes the reduction of operating noise and eliminates the risk of oil leakage. High reliability structure: Adopting high-quality cold-rolled silicon steel core and possessing strong short-circuit resistance, it is an ideal choice for impact load scenarios such as new energy power stations.

Technical Specifications

Note:
1. The load loss with two values in the table, the value on the left is applicable to the Dyn11 vector group, and the value on the right is applicable to the Yyn0 vector group.
2. The above data is subject to change due to technical improvement.
