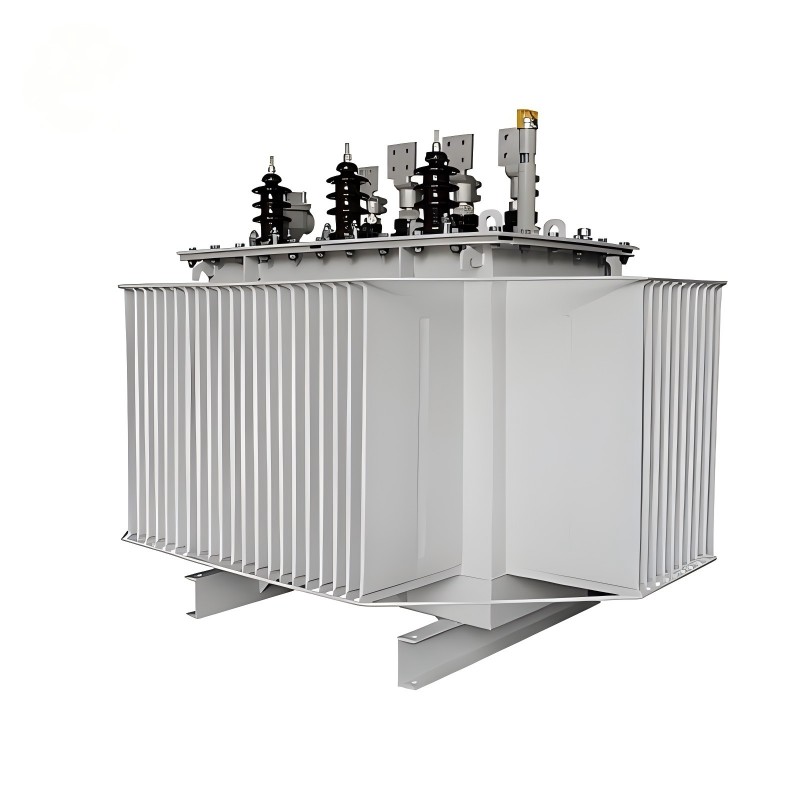

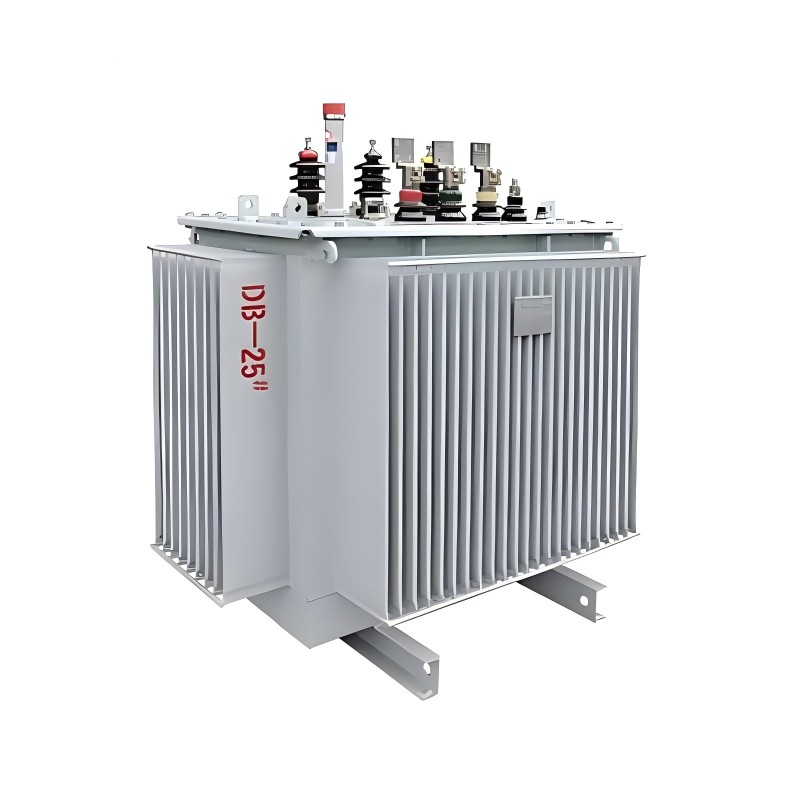

S20 Series High-Efficiency Oil Immersed Power Transformer 10kV

As a professional high quality S20 Series High-Efficiency Oil Immersed Power Transformer 10kV manufacturer, you can rest assured to buy Oil Immersed Transformer from our factory and we will offer you after-sale service and timely delivery. Comewill customized S20 Series High-Efficiency Oil Immersed Power Transformer 10kV adopts high magnetic conductivity oriented silicon steel sheet iron core, and the joint of the iron core adopts step overlap technology, effectively reducing hysteresis loss and eddy current loss, resulting in a 40% reduction in no-load current.

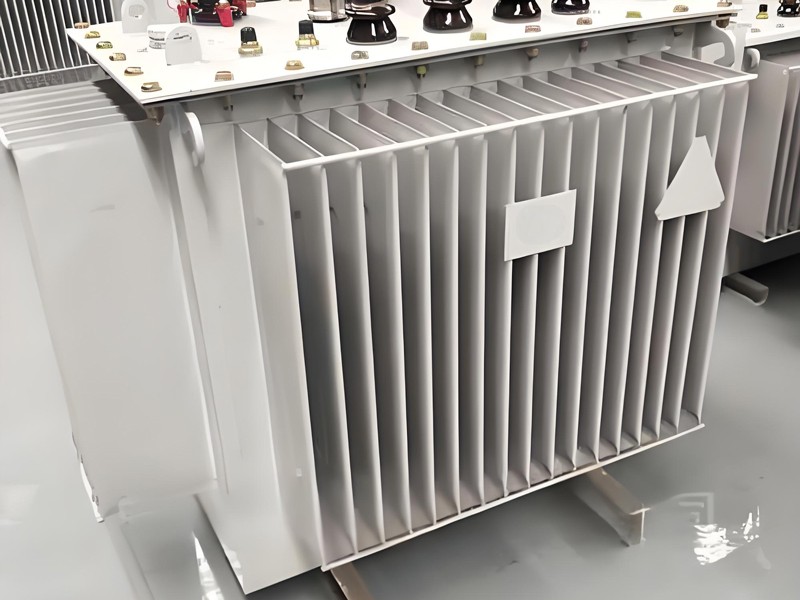

The fully sealed corrugated oil tank design can automatically compensate for oil volume fluctuations caused by temperature changes through the elastic deformation of the corrugated plate. This sealed structure eliminates the need for oil storage tanks, achieving maintenance free operation and extending the service life to over 35 years.

Features

Welcome (Wenzhou) Electric Co., Ltd's S20 Series High-Efficiency Oil Immersed Power Transformer 10kV is designed and manufactured with full consideration for safety, reliability, and economy, providing stable power guarantee for various complex working conditions
1. Voltage and Capacity: The voltage level covers 10-35/0.4kV, and the capacity range is 30-3150kVA. Whether it is for distributing electricity to ordinary people's homes or supplying power to factories, it can basically hold up.
2. Efficient and energy-saving: Adopting a new generation of energy-saving technology, compared with traditional models, the no-load loss and load loss have been significantly reduced, and the energy efficiency has reached the leading level in the industry. This not only helps you save a lot of electricity bills, but is particularly suitable for high load power applications that require high energy consumption control.
3. Low magnetic loss core technology: High magnetic conductivity oriented silicon steel sheets are used, and the joints of the core are overlapped with a stepped process, which can effectively reduce hysteresis loss and no-load current, reduce heat generation of the core, and save energy on excitation.
4. Fully sealed maintenance free design: The fuel tank is corrugated in shape and can automatically compensate for changes in oil volume through elastic deformation, completely preventing oil from coming into contact with air. In this way, there is no need to install oil storage tanks or change oil regularly, which is particularly worry free.br>
5. Low noise and environmentally friendly operation: Adopting noise reduction laminated technology and low-noise fans, the noise during operation is very low, fully meeting the requirements of noise sensitive areas such as urban residential areas and hospitals.br>
6. Compact and space saving structure: The entire cabinet has a small volume and footprint, making S20 Series High-Efficiency Oil Immersed Power Transformer 10kV particularly suitable for places with limited space such as high-rise building distribution rooms and subway traction substations. Full process sealing guarantee: The fuel tank undergoes strict leakage testing before leaving the factory to ensure that there will be no oil leakage throughout the entire service life, making it more reassuring to use.

Technical Specifications

Note:

1. The load loss table contains two values: the left value applies to the Dyn11 connection group, and the right value applies to the Yyn0 connection group.

2. The above data is subject to change without notice due to technical improvements.
