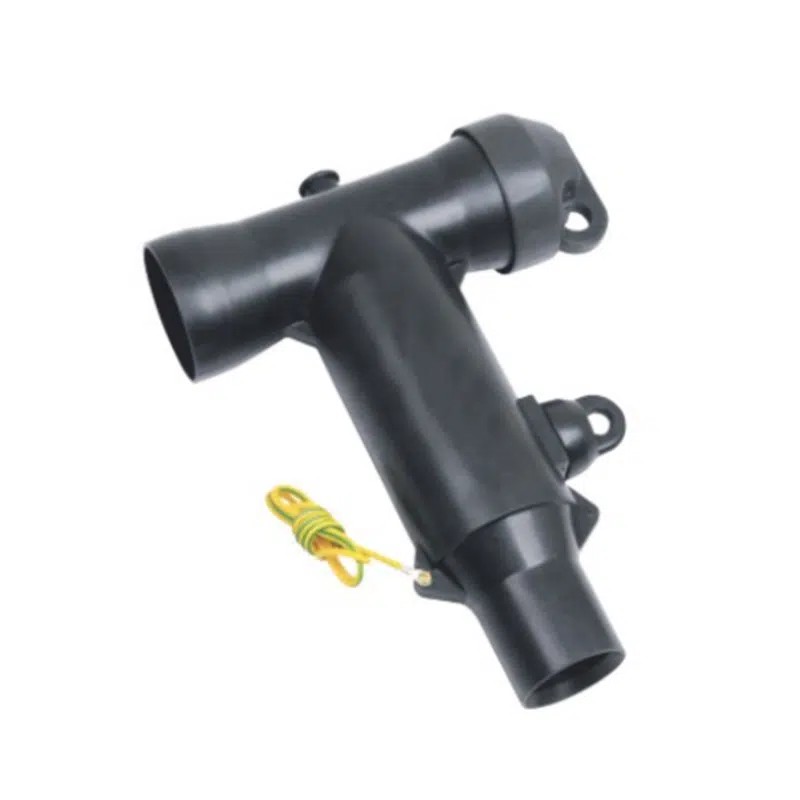

Comewill, a trusted factory and supplier in China, proudly offers the 15KV/24KV 600A Deadbreak T Connector, engineered for high-voltage cable systems in substations, distribution networks, and industrial power setups. This connector ensures a fully shielded, water-resistant, and fault-ready connection, providing professionals with peace of mind and enhanced operational efficiency. The 15KV/24KV 600A Deadbreak T Connector is crafted for durability, adaptability, and ease of installation, making it a preferred choice for engineers and electricians who require both safety and performance in high-voltage applications.
· Fully Shielded & Waterproof: The 15KV/24KV 600A Deadbreak T Connector is completely sealed, allowing direct immersion in water or operation in high humidity, coastal environments, or construction sites without compromising safety or performance.
· Fault Detection Ready: Built-in test points allow installation of a fault indicator, providing immediate alert in case of short circuit or grounding issues. This enables quick maintenance and reduces downtime.
· Versatile T-Shape Design: Combines a T-type cable branch connector with a conduit extender. Supports direct installation of lightning arresters or grounding connectors, simplifying site wiring and minimizing errors.
· Wide Specification Range: Supports conductors from 25mm² to 500mm² for 24kV applications, adaptable to both small distribution rooms and large substations, ensuring the right fit for various projects.
· Robust Construction: Manufactured with high-quality insulation and conductive materials, the 15KV/24KV 600A Deadbreak T Connector ensures long-term reliability and resistance to environmental stress.
| Reference No. | Conductor crosssection (mm²) | Stretch range over insulation(mm) | Cable Type | Size of stress cone |
| TT 15/600-24 | 24 | 16.6 | 8.7/15 | A |
| TT 15/600-35 | 35 | 17.6 | 8.7/15 | A |
| TT 15/600-50 | 50 | 19 | 8.7/15 | A |
| TT 15/600-70 | 70 | 20.6 | 8.7/15 | B |
| TT 15/600-95 | 95 | 22.2 | 8.7/15 | B |
| TT 15/600-120 | 120 | 23.6 | 8.7/15 | C |
| TT 15/600-150 | 150 | 25.2 | 8.7/15 | C |
| TT 15/600-185 | 185 | 26.7 | 8.7/15 | C |
| TT 15/600-240 | 240 | 29 | 8.7/15 | D |
| TT 15/600-300 | 300 | 31.2 | 8.7/15 | D |
| TT 15/600-400 | 400 | 34.4 | 8.7/15 | E |
| TT 15/600-500 | 500 | 37.2 | 8.7/15 | F |
| ReferenceNo. | Conductor crosssection (mm²) | Stretch range over insulation (mm) | Cable Type | Size ofstresscone |
| TT 24/600-35 | 35 | 18.6 | 12/20 | B |
| TT 24/600-50 | 50 | 20 | 12/20 | B |
| TT 24/600-70 | 70 | 21.6 | 12/20 | B |
| TT 24/600-95 | 95 | 23.2 | 12/20 | C |
| TT 24/600-120 | 120 | 24.6 | 12/20 | C |
| TT 24/600-150 | 150 | 26.2 | 12/20 | C |
| TT 24/600-185 | 185 | 27.7 | 12/20 | D |
| TT 24/600-240 | 240 | 30 | 12/20 | D |
| TT 24/600-300 | 300 | 32.2 | 12/20 | E |
| TT 24/600-400 | 400 | 35.4 | 12/20 | E |
| ReferenceNo. | Conductor crosssection(mm²) | Stretchrange overinsulation(mm) | CableType | Size ofstresscone |
| TT 24/600-50 | 50 | 25 | 18/20 | D |
| TT 24/600-70 | 70 | 26.6 | 18/20 | D |
| TT 24/600-95 | 95 | 28.2 | 18/20 | D |
| TT 24/600-120 | 120 | 29.6 | 18/20 | E |
| TT 24/600-150 | 150 | 31.2 | 18/20 | E |
| TT 24/600-185 | 185 | 33.7 | 18/20 | E |
| TT 24/600-240 | 240 | 35 | 18/20 | F |
| TT 24/600-300 | 300 | 36.2 | 18/20 | F |
NOTE: The cable range is the primary factor in selecting the product type, while the conductor size serves only as a reference.
The 15KV/24KV 600A Deadbreak T Connector is ideal for:
Medium-voltage distribution networks
Industrial and commercial substations
Power transmission and transformer connections
Construction sites requiring temporary or permanent high-voltage connections
Q: Can the 15KV/24KV 600A Deadbreak T Connector be used underwater?
A: Yes, it is fully sealed and waterproof, suitable for direct immersion and high-moisture environments.
Q: How does the fault indicator work?
A: A test point is provided on the connector to install a fault indicator, which signals any short circuit or grounding issue for immediate maintenance.
Q: What conductor sizes are supported?
A: For 24kV applications, conductors from 25mm² to 500mm² are supported, ensuring compatibility with a wide range of installations.
Q: Is installation difficult?
A: No, the T-shape design allows easy branching, conduit extension, and integration with lightning arresters or grounding connectors, reducing installation errors.
Q: Where is the 15KV/24KV 600A Deadbreak T Connector commonly used?
A: It is widely used in substations, industrial power distribution, and transformer connections, suitable for both small and large-scale projects.
The 15KV/24KV 600A Deadbreak T Connector by Comewill ensures your high-voltage connections are safe, reliable, and efficient, offering peace of mind for engineers and installers across diverse environments.
