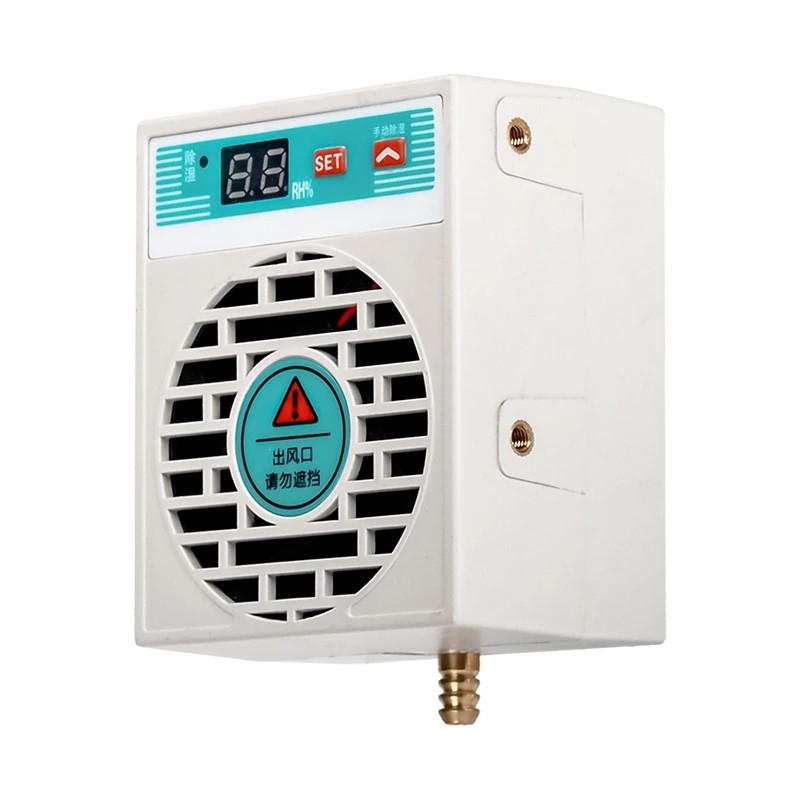

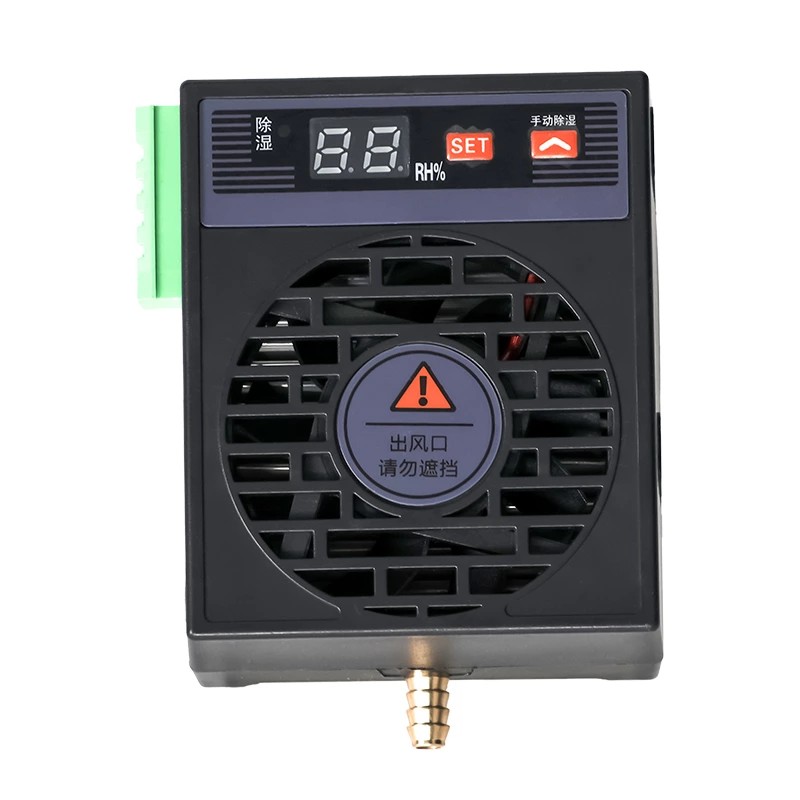

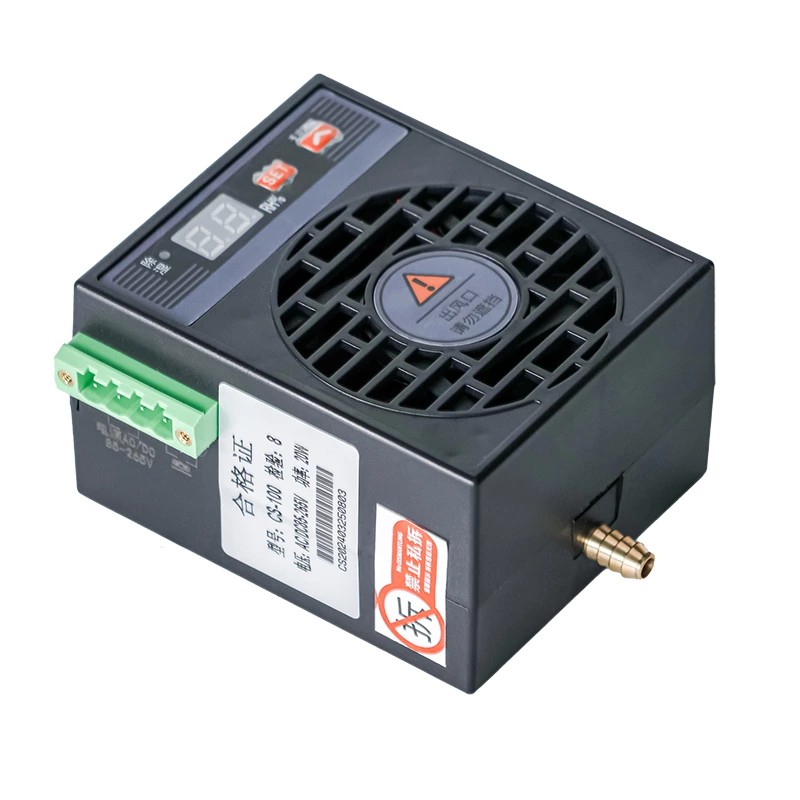

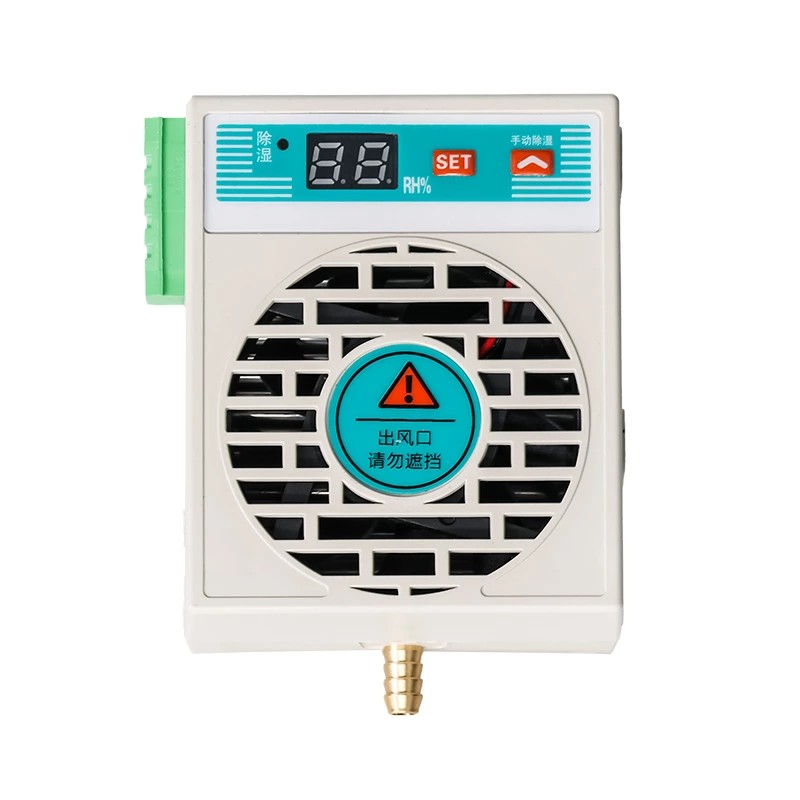

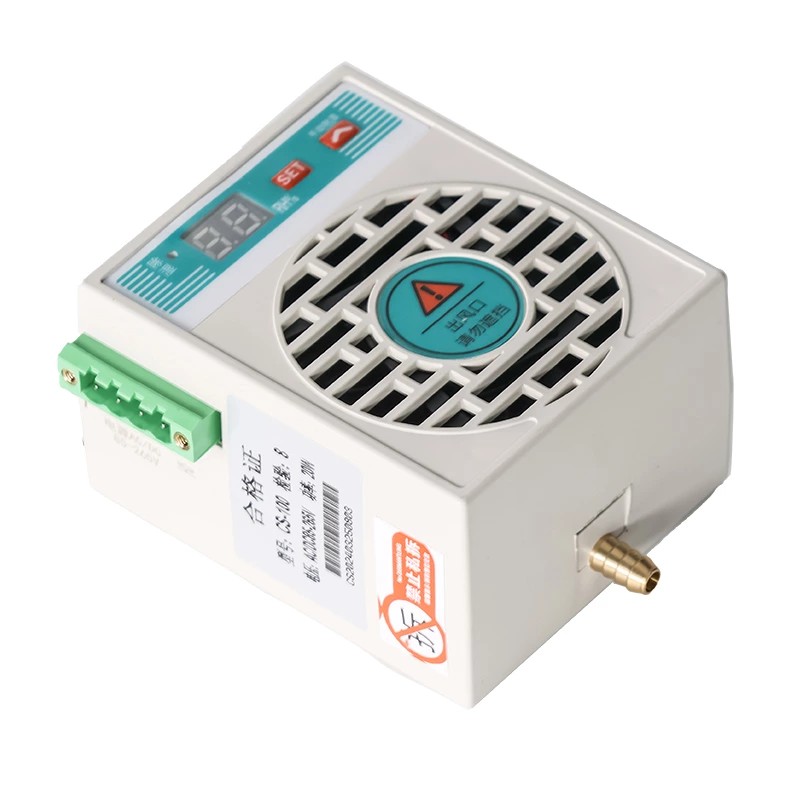

As the professional manufacture, Comewill would like to provide you high quality Mechanism Room Dehumidifier 15W. And we will offer you after-sale service and timely delivery.
High quality Mechanism Room Dehumidifier 15W cuts down on both relative and absolute humidity by reducing air moisture content — with barely any temperature increase. This avoids the problems caused by internal temperature differences, and fundamentally lowers the risk of equipment failures. Unlike heat-based alternatives, it won’t speed up the aging of cabinet components or the cabinet itself due to high temperatures.
We’ve swapped the old passive dew-prevention method for an active dew-guidance design. This stops common cabinet issues in their tracks: equipment aging, reduced insulation strength, secondary terminal breakdown, mold on internal materials, and steel structure rust. For your power grid, that means safer, more stable long-term operation.
Compact, lightweight — installs in minutes, no fuss.
· Auto/manual dehumidification switch. Custom temp & humidity trigger points available.
· Active condensation in duct + heated exhaust air. Full moisture control for sealed electrical cabinets.
· 24/7 temp & humidity monitoring. Condensation starts automatically once thresholds are hit.
· Setting memory function. Saved values stay intact through power cycles — no reconfiguration needed.
· Fault display included. Spot issues fast, keep operations running.
· Moisture-resistant components built-in. Reliable performance even in high-humidity environments.
· Shielding isolation tech applied. Meets GB/T17626-2008 Level 3 — works great in strong electromagnetic fields.
· Dual drainage options. Use the tube to drain water outside the cabinet, or a storage bag for external collection.
| PARAMETER INFORMATION | |
| Power input | AC/DC85-265V,50Hz |
| Working power supply | 220VAC,50/60Hz,power 20W |
| Display method | Two digit digital tube display |
| Input specifications | 1 humidity input module |
| Measuring Range | Humidity:20%RH~99%RH |
| Basic error | Humidity:±5%RH(20%RH~99%RH) |
| Resolution | Humidity 1%RH |
| Rated power | 20W |
| Humidity start value | 85%RH |
| Humidity stop value | 75%RH |
| Sensor type | Built-in |
| External temperature load | nothing |
| Communication RS485 | Optional configuration |
| Recommended dehumidification space | 0.2-0.5m³ |
| Drainage method | Silicone hose drainage |
| work environment | Non corrosive environments with a temperature of-10~80℃and a humidity of s85%RH |
| Shell material | Engineering plastic |

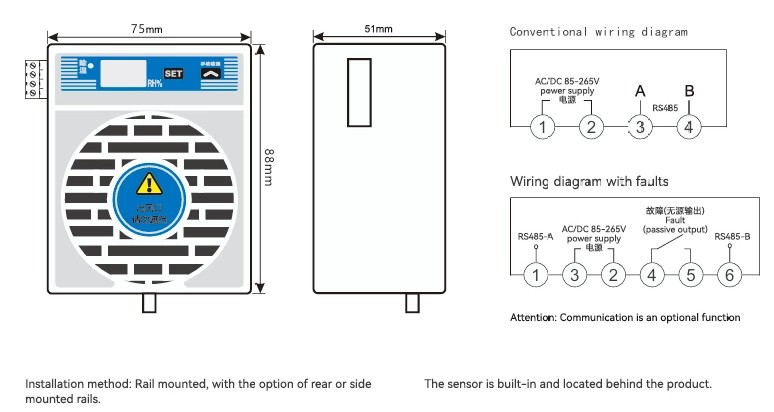

| External dimensions(mm) | Length 88*Width 75*Thickness 51 |

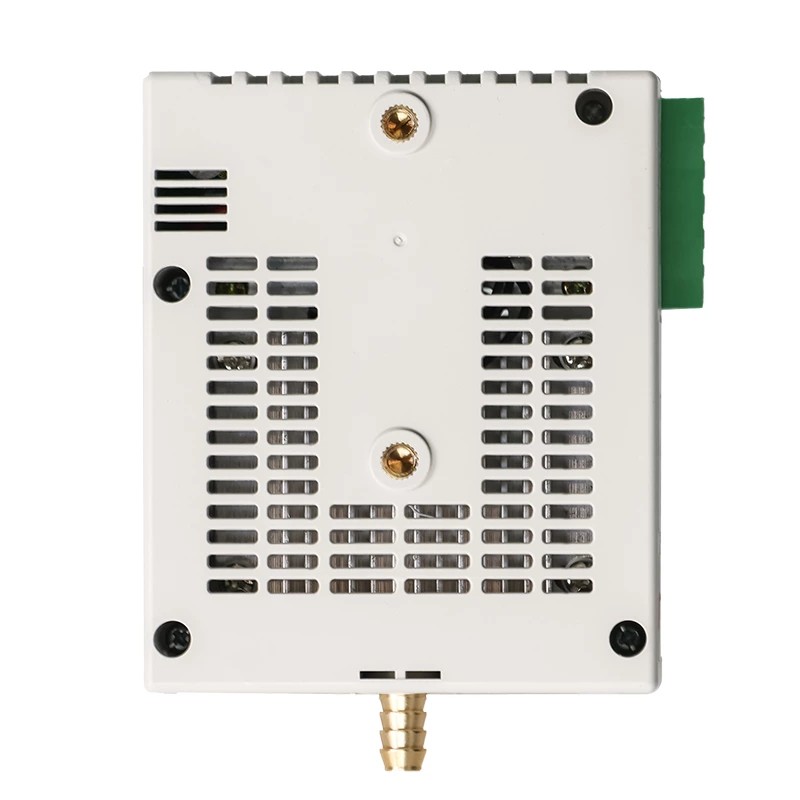

| Installation method | DIN-Rail Mounting |
