Looking for a reliable wholesale LZZJ-10Q Current Transformer? Comewill factory delivers high-performance measurement solutions compliant with GB1208 standards. Our resin-insulated transformers support a wide primary current range (5-1000A) with FS<10 safety factors, ensuring long-term stability in demanding switchgear environments. Partner with Comewill for professional-grade electrical components that meet strict global engineering benchmarks.

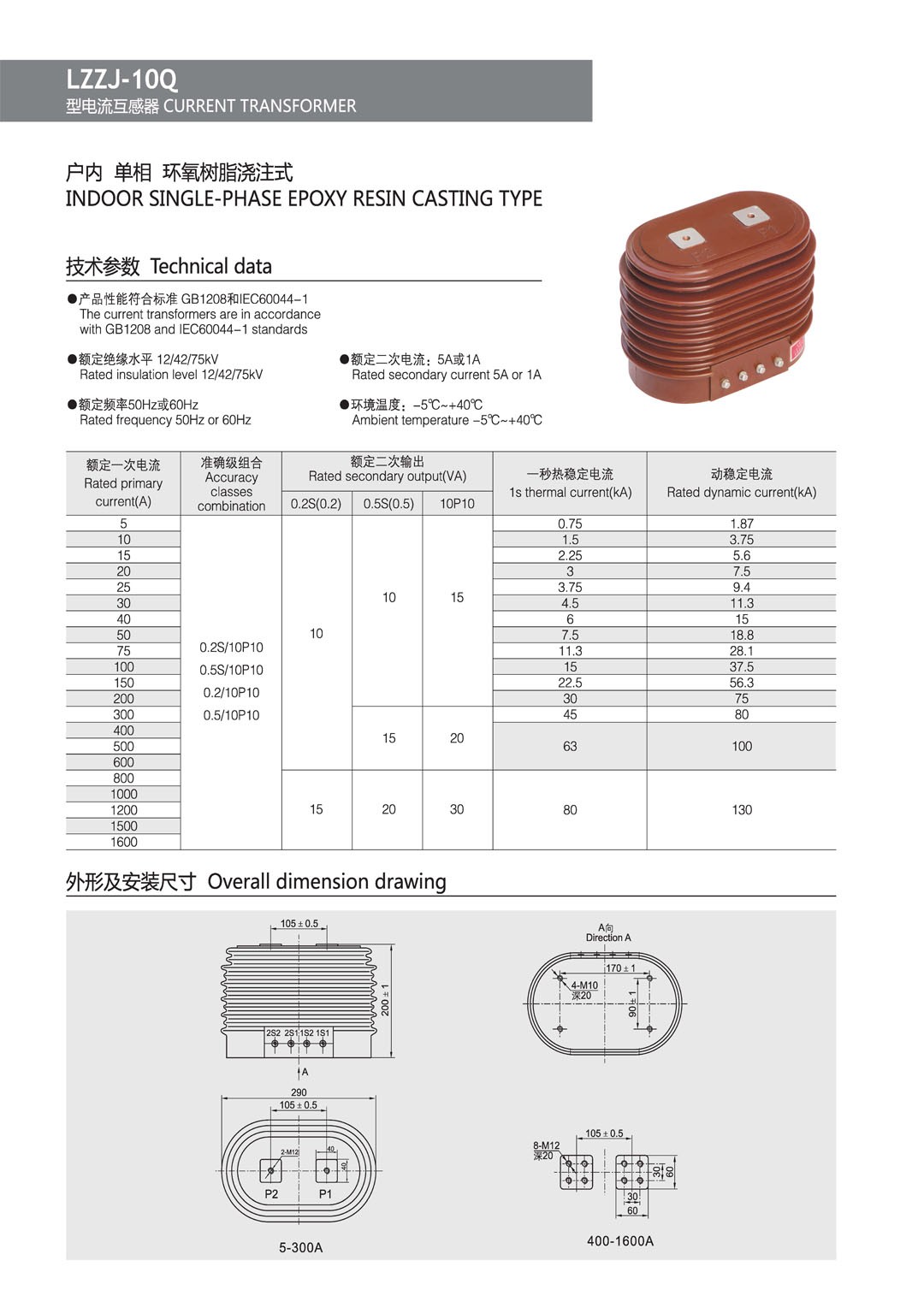

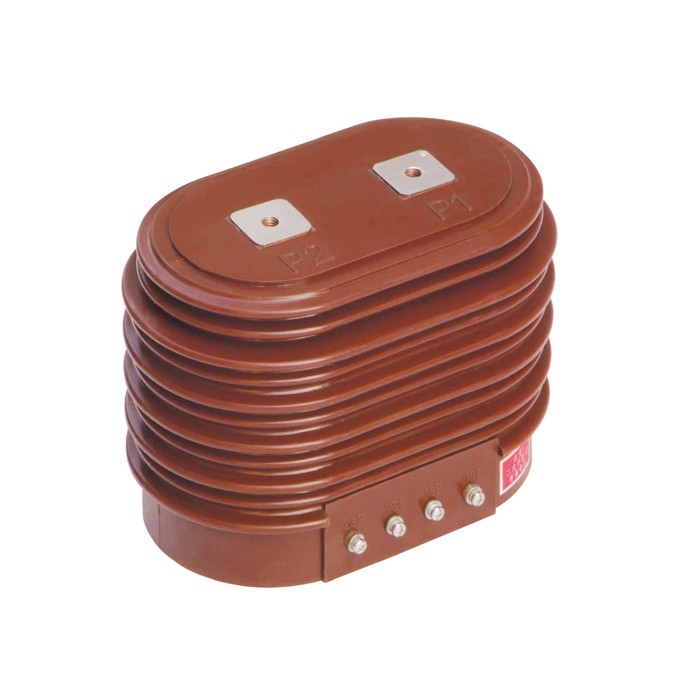

The LZZJ-10Q Current Transformer is an indoor, reinforced-type current transformer. It utilizes a fully enclosed epoxy resin structure, integrating the primary and secondary windings with a high-permeability annular core.
Rated Insulation Level: 12/42/75kV (Ensuring safety against surges)
Accuracy Classes: 0.2S, 0.2, 0.5, 10P15 (Versatile for billing and protection)
Rated Current Ratio: 5A to 1000A / 5A (or 1A)
Standard Compliance: GB1208 & International IEC equivalents.
Insulation Integrity: The vacuum-cast epoxy housing provides an airtight seal against moisture, dust, and chemical contaminants, significantly extending the service life compared to traditional open-core models.
Dual-Frequency Compatibility: Optimized for both 50Hz and 60Hz systems, making it a versatile asset for international infrastructure projects.
High Short-Circuit Strength: With dynamic stability ratings reaching up to 90kA (for 1000/5A models), the LZZJ-10Q maintains structural integrity during fault conditions.
Low Phase Displacement: Designed with a 0.8 lagging power factor to ensure high-precision metering for energy billing.
The Comewill LZZJ-10Q is the "heart" of monitoring in several critical environments:
Industrial Switchgears: Integral for 10kV-12kV indoor vacuum circuit breaker units.
Energy Management: High-accuracy (0.2S class) metering for commercial building power consumption.
Relay Protection: Reliable signal output for overcurrent and short-circuit protection relays.
| LZZJ-10Q Current Transformer | |
| Rated insulation level | 12/42/75kV |
| Load power factor | 0.8(lag) |
| Rated primary current | 5-1000A |
| Rated secondary current | 5A/1A |
| Product standard | GB1208 |
| Safety factor | FS<10 |
| Product Model | Rated current ratio (A) | Level combination | Accuracy class and rated output (VA) COSФ=0.8 | 1-second thermally stable current | Dynamic stability current | |||
| 0.2S | 0.2 | 0.5 | 10P15 | |||||
| LZJC-10Q | 5/5 | 0.2S/10P150.2/10P150.5/10P15 | 10 | 10 | 10 | 15 | 0.4 | 0.8 |
| 10/5 | 10 | 10 | 10 | 15 | 0.8 | 1.5 | ||
| 15/5 | 10 | 10 | 10 | 15 | 1.1 | 2.3 | ||
| 20/5 | 10 | 10 | 10 | 15 | 1.5 | 3 | ||
| 30/5 | 10 | 10 | 10 | 15 | 2.3 | 4.5 | ||
| 40/5 | 10 | 10 | 10 | 15 | 3.8 | 7.5 | ||
| 50/5 | 10 | 10 | 10 | 15 | 5.6 | 11.3 | ||
| 75/5 | 10 | 10 | 10 | 15 | 7.5 | 15 | ||
| 150/5 | 10 | 10 | 10 | 15 | 11.3 | 23 | ||
| 200/5 | 10 | 10 | 10 | 15 | 15 | 30 | ||
| 300/5 | 10 | 10 | 10 | 15 | 22.5 | 45 | ||
| 400/5 | 10 | 10 | 10 | 15 | 30 | 60 | ||
| 600/5 | 10 | 10 | 10 | 15 | 30 | 60 | ||
| 800/5 | 10 | 10 | 10 | 15 | 40 | 80 | ||
| 1000/5 | 10 | 10 | 10 | 15 | 45 | 90 | ||
| 1500/5 | 10 | 10 | 10 | 15 | 45 | 90 | ||
Q1: What is the difference between 0.2S and 0.5 accuracy classes?
A1:0.2S is a "special" high-precision class used for wide-load billing (accurate even at 1% of rated current), while 0.5 is the standard for general industrial measurement.
Q2: What makes epoxy resin casting better than traditional insulation?
A2: Epoxy casting seals the windings and core completely, offering superior moisture resistance, anti-pollution properties, and mechanical durability.
