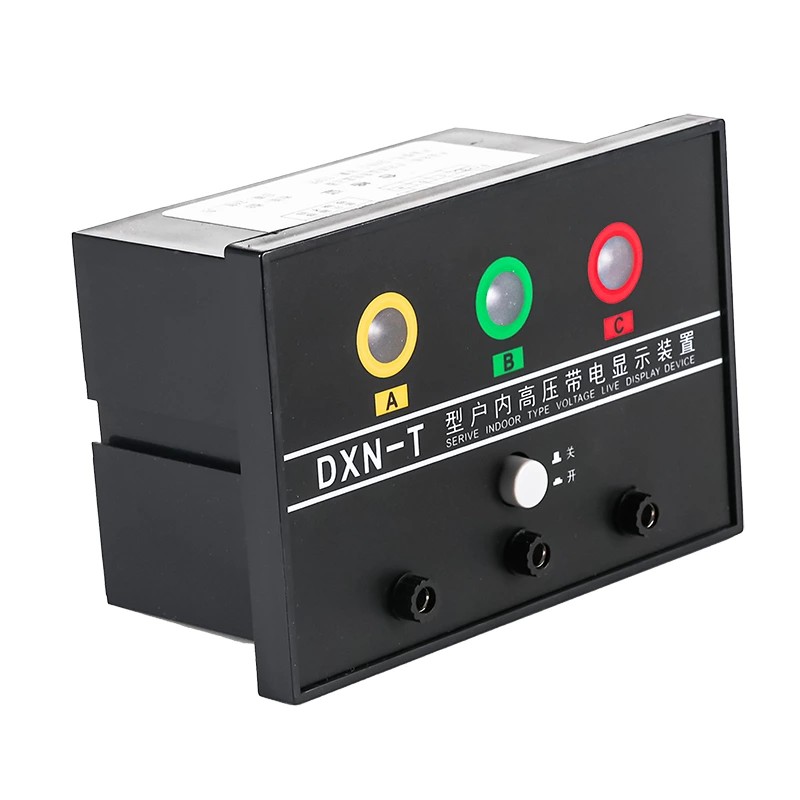

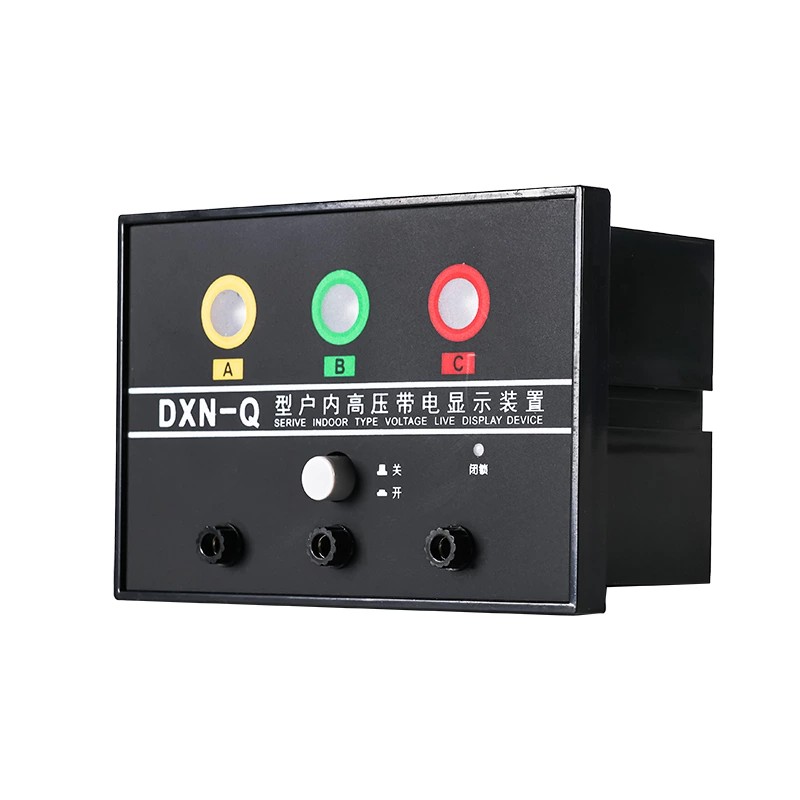

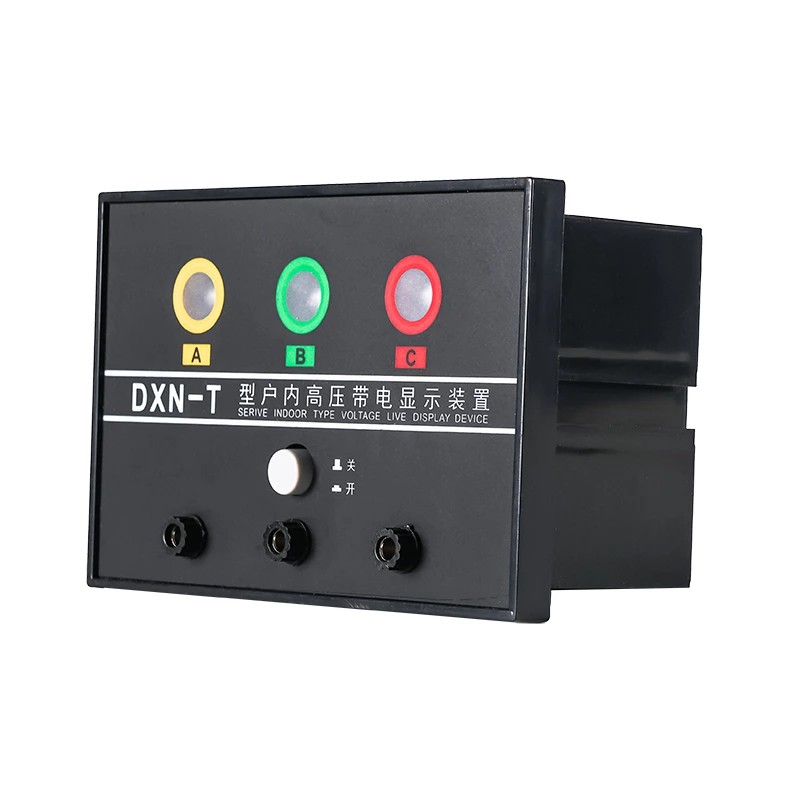

As a professional high quality High Voltage Live Display Device manufacturer, you can rest assured to buy Indoor High-Voltage Live Display Indicator DXN-Q/T from our factory and we will offer you after-sale service and timely delivery.
Super intuitive warning: When the equipment’s got high voltage, the display window flashes really bright — that’s like a big, obvious sign saying "high-voltage live, stay away!". If there’s no voltage, the display’s totally dark. No wishy-washy signals, so you can tell it’s safe instantly, even from a few steps away.
Tough as nails and reliable: The shell’s made of industrial-grade flame-retardant ABS plastic. This stuff can handle being moved around and installed lots of times — it doesn’t scratch easily and can take a little bump. Most importantly, it’s a top-notch insulator, so it keeps electric fields locked in and prevents accidental shocks. Even in electrical rooms that are dusty, a bit humid, or have temperature swings, it works steady as a rock.

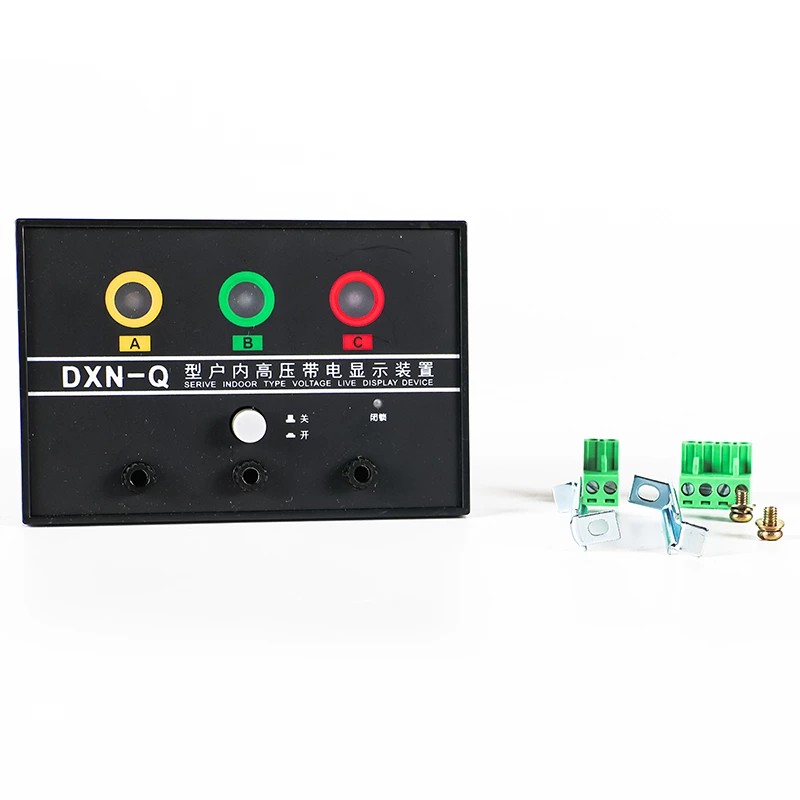

Installs in a jiffy: The Indoor High-Voltage Live Display Indicator DXN-Q/T comes with pre-drilled standard holes, so you don’t have to measure and drill on site. We also throw in a full set of mounting bits — screws, gaskets, everything you need. On-site teams don’t need any special tools or to mess with complicated debugging. They can get it fixed up in just a couple of minutes, which saves heaps of time and labor.
This high-voltage live display indicator’s mostly put in key spots of indoor electrical systems where you need to clearly see if something’s energized. It fits most core gear in high-voltage distribution setups, like:
Incoming busbars (the starting point of power distribution, needs to keep an eye on energization status 24/7)
Circuit breakers (core control parts — before you start maintenance, you gotta be 100% sure it’s safe, and this indicator tells you that)
Main transformers (key power conversion equipment, needs constant energization indication so you know it’s working right)
Switch cabinets (areas where people work a lot — having clear safety prompts here keeps everyone out of trouble)
Other indoor high-voltage electrical equipment (such as high-voltage junction boxes, high-voltage reactors, etc.)
The device runs on the electric field coupling principle — that’s the fancy way of saying it uses the high-voltage electric field and the built-in sensor to work. It takes inductive (non-contact) samples, so it can detect if something’s energized and show the status from a safe distance. Unlike old contact-style detectors, this one never touches the high-voltage live parts directly. That makes it super safe for both the device itself and the people working on site.

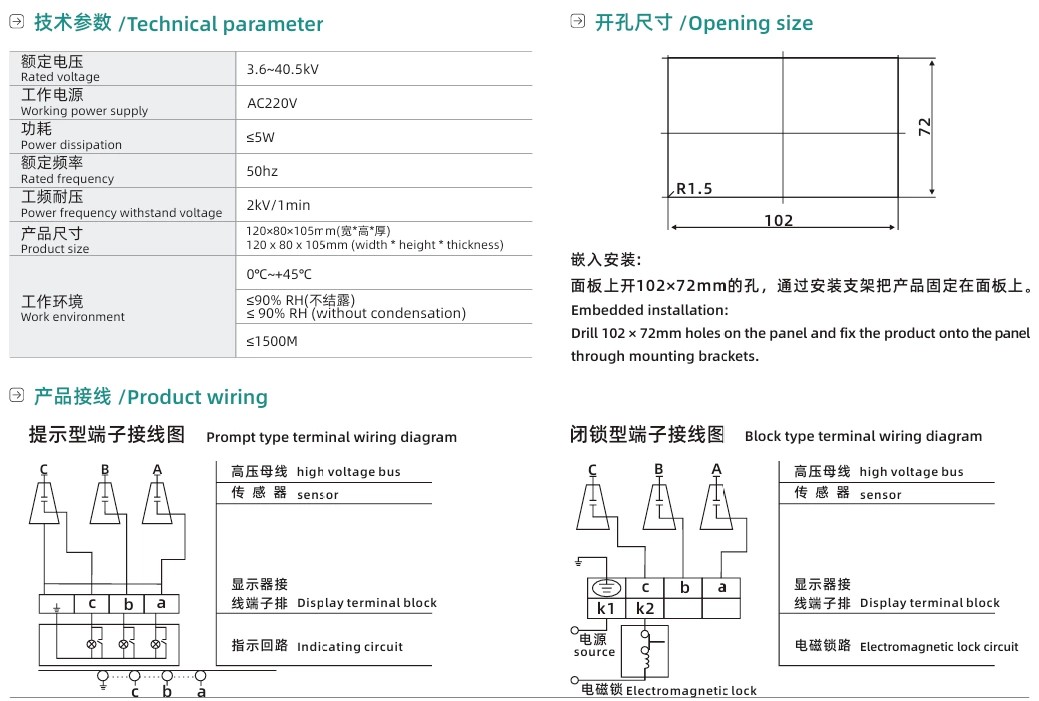

Inside the Indoor High-Voltage Live Display Indicator DXN-Q/T, there are three separate sensor units. Each one connects to the A, B, C three-phase busbars of the high-voltage system. This way, we can check the energization status of all three phases, no misses.
When you install it, the three sensors are set up strictly following national electrical safety rules. They don’t touch the high-voltage live parts at all, and they keep a proper safety distance. That means no risk of electric leakage or short circuits — totally safe.
When the high-voltage equipment is live, the sensors pick up the electric field signal from those live parts. Inside the sensor, the signal gets turned into a stable electrical signal, and then sent to the display’s power module.
Once the power module gets that valid signal, it makes the indicator light flash to warn people. If there’s no electric field signal (meaning no voltage), the indicator light stays off — clear safe signal.
Besides just showing if something’s energized, this device also helps with fault finding — super handy for on-site maintenance teams:
If there’s a single-phase grounding fault in the high-voltage system, the electric field of the phase that’s grounded will disappear. Right away, the indicator light for that grounded phase on the display goes out, while the other two normal phases stay lit. That clear difference lets maintenance guys find the faulty phase in no time — no need to haul out extra detection tools. This speeds up fault fixing a lot and cuts down how long the power distribution system is out of action.
1. Way safer on site: The super clear visual warning pretty much gets rid of the risk of electric shocks from misjudging if equipment’s live. It’s a solid safety net for all the operation and maintenance staff.
2. Cheap to use long-term: There are no fancy, complicated electronic parts in this device, so it hardly ever breaks down. The flame-retardant ABS shell and good-quality LED indicator lights mean it can last 8-10 years under normal use. And the best part? You don’t need to do any maintenance on it while it’s running — saves a ton of money and hassle on later upkeep.
3. Super compatible: It works with most indoor high-voltage systems that are 6KV to 35KV. It can match up with high-voltage equipment from all kinds of brands, so it’s really versatile — you don’t need to buy different indicators for different gear.
