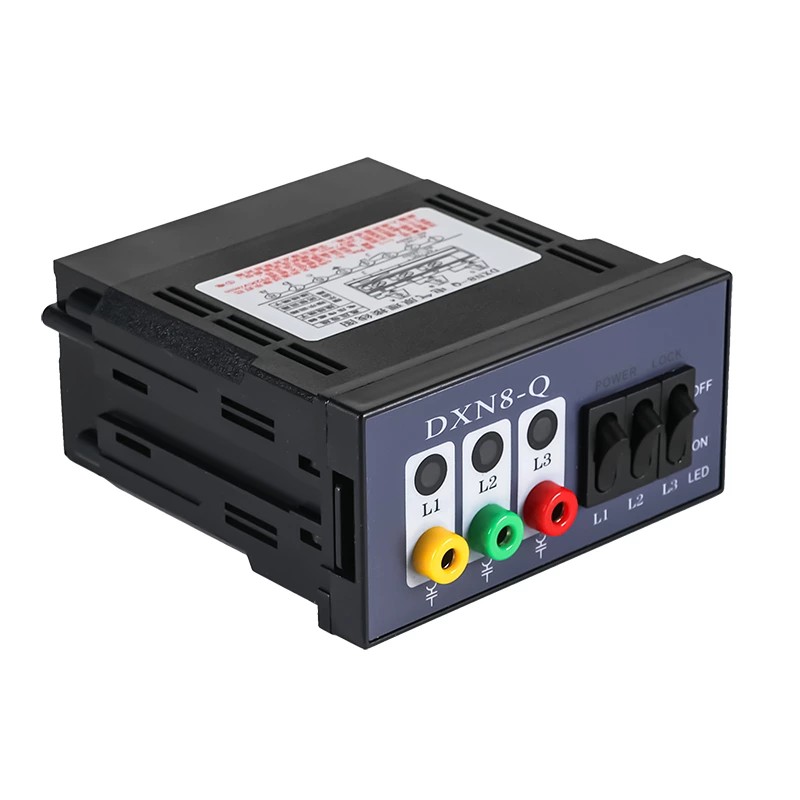

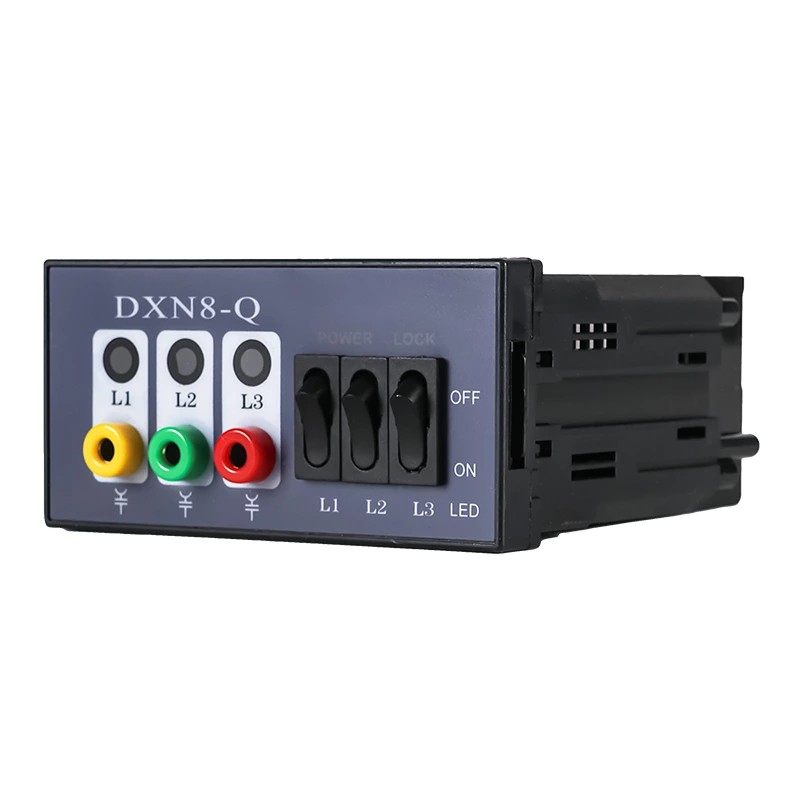

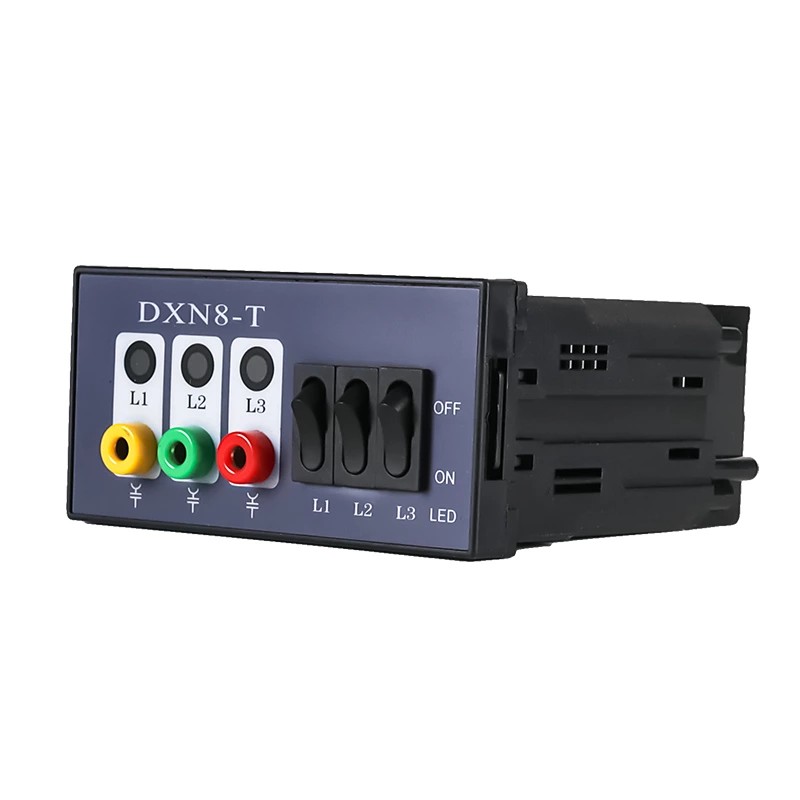

As a professional manufacturer in China, Comewill would like to provide you quality Indoor High-Voltage Live Display Device DXN8-T/Q Interlock Type, which is designed to mount directly on indoor high-voltage equipment, and its only job is to let you tell at a glance if the gear’s got electricity running through it. For on-site electricians and maintenance crew, this thing saves so much trouble — no more messing with those tedious, time-consuming detection steps. It gives super clear safety prompts right off the bat, which really cuts down on the risk of electric shocks from misjudging whether a device is live.

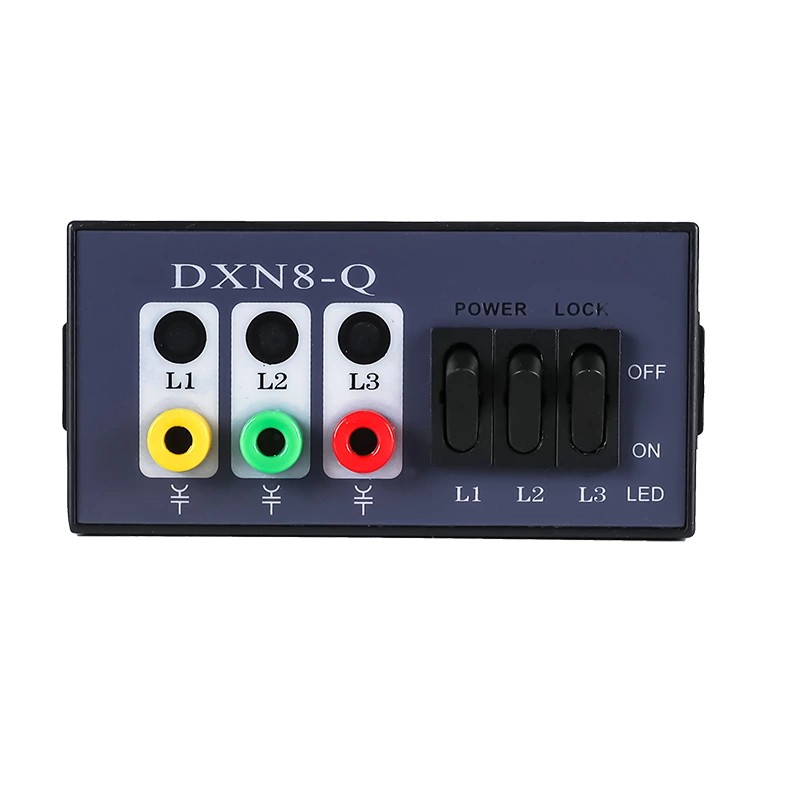

Super intuitive warning effect: When the equipment’s carrying high voltage, the LED lights in the display window flash real bright — it’s like a big, eye-catching reminder that says "high voltage live, don’t get close!". If there’s no voltage, the display goes totally dark, no light at all. No confusing signals, so you can tell it’s safe in a split second, even from a few steps away. We use high-brightness LEDs specifically, so they’re easy to spot even in those bright, well-lit electrical rooms.
Tough and reliable enough for on-site use: The shell’s made of industrial-grade flame-retardant ABS plastic. This stuff can handle being moved around and installed multiple times — it doesn’t scratch easily and can take a little bump here and there. Most importantly, it’s a top-notch insulator, so it keeps electric fields in check and prevents accidental shocks. Even in electrical rooms that are dusty, a bit humid, or have big temperature swings, it works steady as a rock, no glitches.

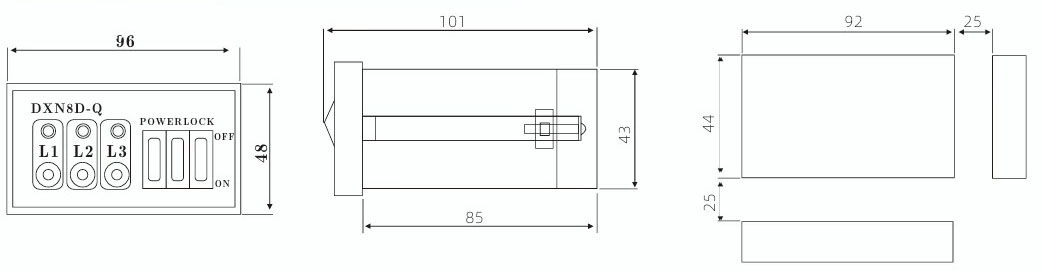

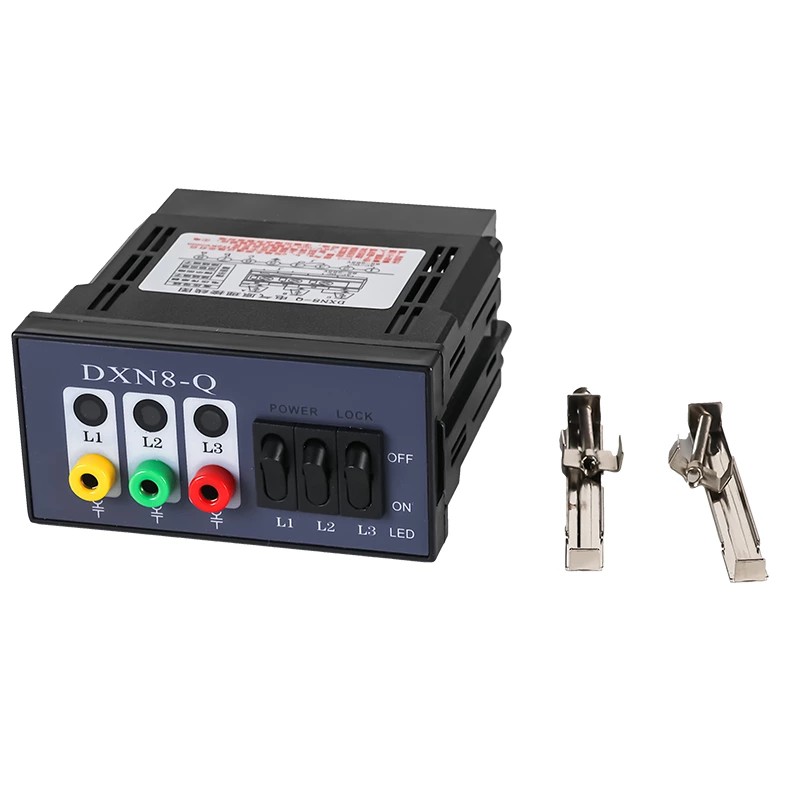

Installation is a breeze: The indicator comes with pre-drilled standard holes, so you don’t have to measure and drill on site — saves a ton of time. We also throw in a full set of mounting parts in the package: screws, gaskets, everything you need. On-site teams don’t need any special tools or to do complicated debugging work. They can get it fixed up and ready to use in just a couple of minutes, which cuts down on labor costs too.
This Indoor High-Voltage Live Display Device DXN8-T/Q Interlock Type is mainly installed in key positions of indoor electrical systems where you need to clearly see if something’s energized. It fits most core equipment in high-voltage distribution setups, specifically:
Incoming busbars (the starting point of power distribution, needs 24/7 monitoring of energization status to ensure stable power supply)
Circuit breakers (core control components — before doing any maintenance work, you absolutely need to confirm it’s safe, and this indicator tells you that right away)
Main transformers (key power conversion equipment, needs constant energization indication to keep track of its working status)
Switch cabinets (areas with frequent operation and maintenance — having clear safety prompts here is crucial to keep staff out of danger)
Other indoor high-voltage electrical equipment (such as high-voltage junction boxes, high-voltage reactors, etc.)
The Indoor High-Voltage Live Display Device DXN8-T/Q Interlock Type runs on the principle of electric field coupling — to put it in simple terms, it uses the high-voltage electric field and the built-in sensor to work. It adopts inductive non-contact sampling, so it can detect energization status and show it from a safe distance. Unlike those old-fashioned contact-type detectors, this one never touches the high-voltage live parts directly. That’s not just good for prolonging the device’s lifespan, but also makes it super safe for the people working on site.
Let’s break down the working process step by step, nice and easy to understand:

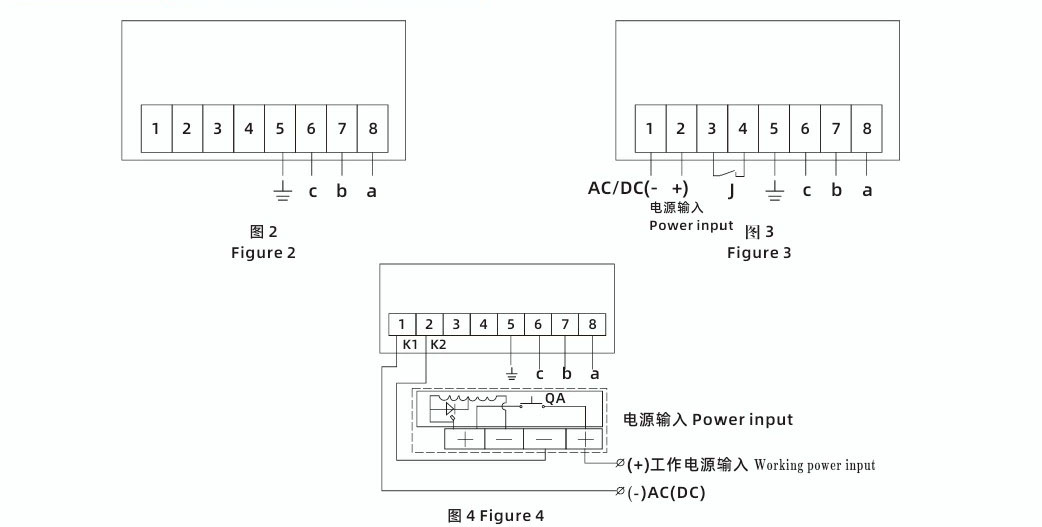

Inside the device, there are three independent sensor units. Each unit is connected to the A, B, C three-phase busbars of the high-voltage system respectively. This way, we can detect the energization status of all three phases without missing any — no blind spots in protection.
When installing, the three sensors must be set up strictly in accordance with national electrical safety standards. They don’t touch the high-voltage live parts at all, and maintain a sufficient safety distance. This completely eliminates the risk of electric leakage or short circuits, making the installation and use process totally safe.
When the high-voltage equipment is live, the sensors will capture the electric field signal emitted by the live parts. Inside the sensor, this signal is converted into a stable electrical signal, which is then transmitted to the display’s power module.
Once the power module receives this valid signal, it will drive the three-phase indicator lights on the display to flash, clearly indicating that the high-voltage equipment is energized. If no electric field signal is detected (that is, there’s no voltage), the indicator lights will stay off, giving a clear safe signal.
Besides the basic function of showing energization status, this Indoor High-Voltage Live Display Device DXN8-T/Q Interlock Type also helps with fault diagnosis — it’s super useful for on-site maintenance teams:
Detects single-phase grounding faults
Fault phase to indicator OFF
Normal phases to indicators still flashing
Enables quick fault location without extra tools
Reduces downtime and maintenance effort
1. Improved safety
Instant visual warning
Prevents misjudgment of live equipment
2. Low maintenance cost
Simple structure, low failure rate
8–10 years service life
Maintenance-free operation
3. Strong compatibility
Suitable for most indoor HV systems
Compatible with different equipment brands
Simplifies procurement
