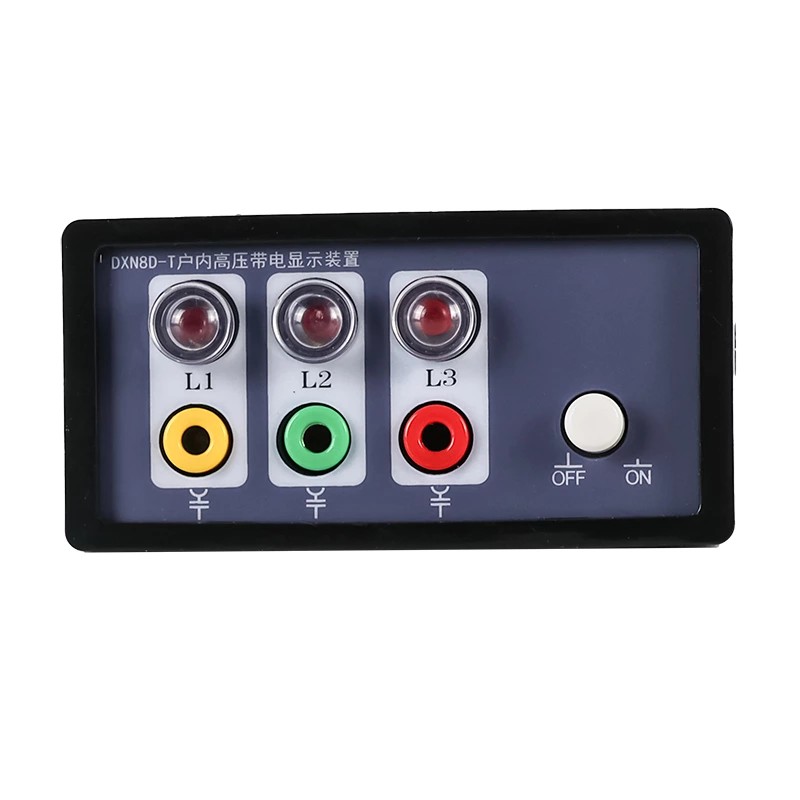

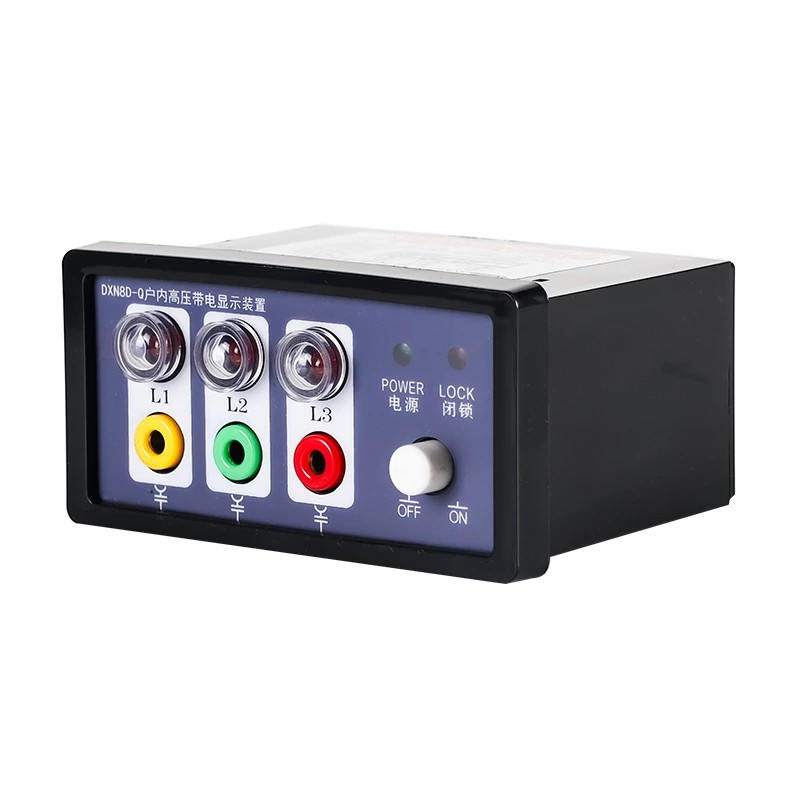

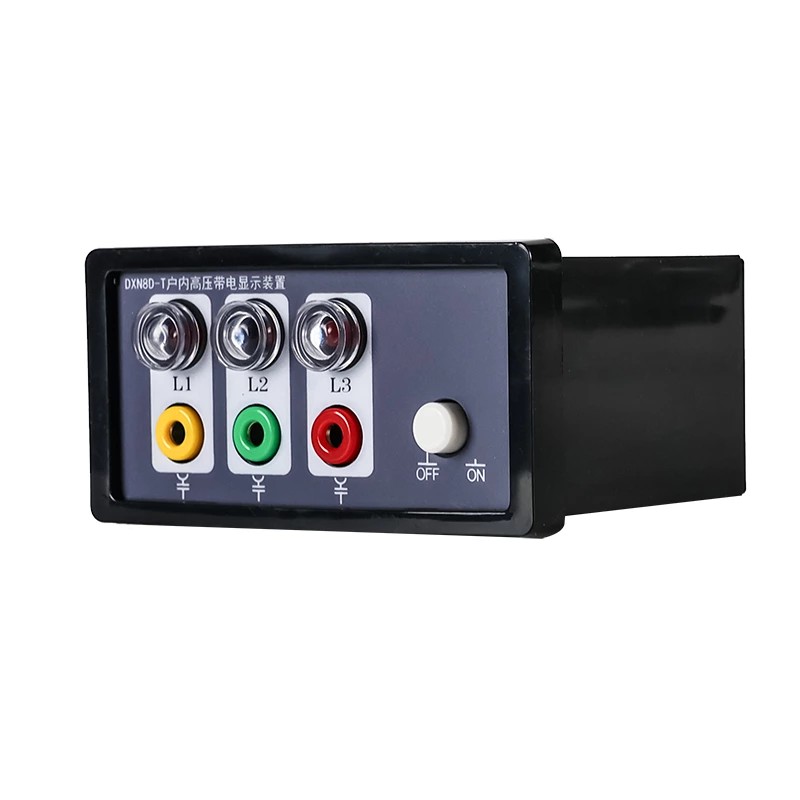

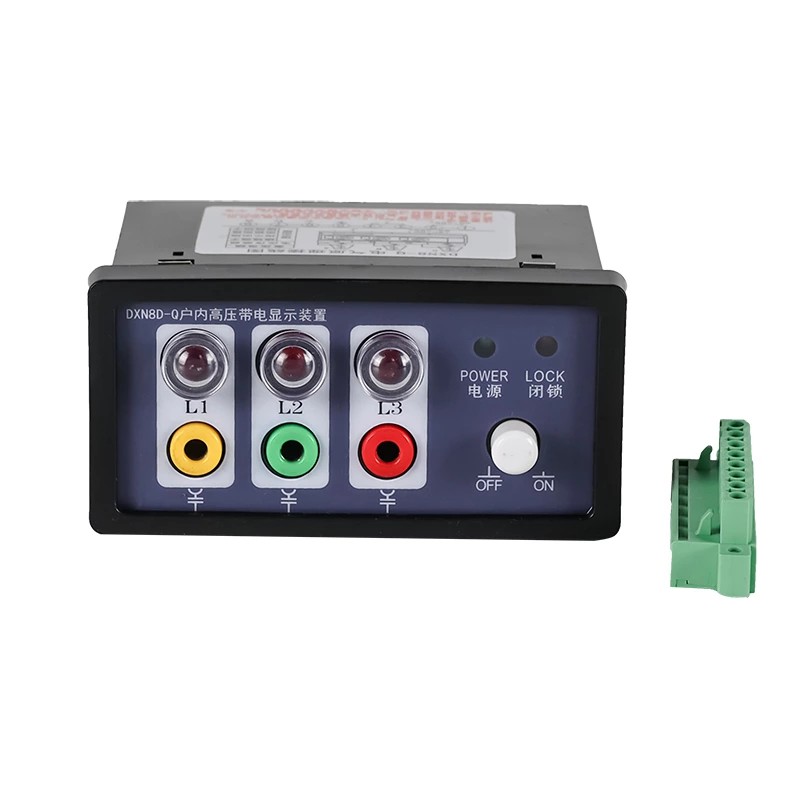

As a professional high-quality High Voltage Live Display Device manufacturer, you can rest assured to buy the Indoor High-Voltage Live Display Device DXN8D-Q/T Plug-in Type from Comewill, and we will offer you after-sales service and timely delivery.
The Indoor High-Voltage Live Display Device DXN8D-Q/T Plug-in Type is a "status indicator light" for high-voltage switchgear. Its working principle involves sensing the presence of a high-voltage electric field through internal sensors and then displaying the result in the most intuitive way (light or no light).
For on-site electricians and maintenance technicians, it solves a crucial pain point: eliminating the need to approach equipment with unknown risks and perform tedious voltage testing.
During routine inspections: Enter the distribution room and glance at the DXN8D-Q/T indicator on the cabinet door. A flashing light indicates normal equipment operation; all lights off indicate the circuit is de-energized. The status is immediately clear, greatly improving efficiency.
When preparing for maintenance: Before obtaining a work permit and preparing tools, first confirm that the corresponding display device is completely off. This adds an extra layer of intuitive confirmation, providing a preliminary guarantee for subsequent voltage testing and grounding work.
Our high-quality Indoor High-Voltage Live Display Device DXN8D-Q/T Plug-in Type is primarily installed in critical nodes of indoor power systems where the energized status of equipment needs to be clearly known. It is suitable for core equipment in high-voltage power distribution systems, specifically including:
Incoming Busbars: As the starting point of power distribution, their energized status needs to be continuously monitored 24 hours a day.
Circuit Breakers: As core control components, their safe condition must be 100% confirmed before maintenance; this indicator provides immediate and clear energized information.
Main Transformers: As critical power conversion equipment, continuous energized indication is required to ensure their operating status is clearly visible.
Switchgear: As areas frequently accessed by personnel, clear energized indicators effectively mitigate safety risks and ensure operational safety.
Other indoor high-voltage electrical equipment: Such as high-voltage junction boxes, high-voltage reactors, etc.
The Indoor High-Voltage Live Display Device DXN8D-Q/T Plug-in Type utilizes a high-voltage electric field and built-in sensors to perform its function. It employs inductive non-contact sampling technology, enabling accurate detection and indication of the device's energized state from a safe distance. Unlike traditional contact detectors, this device never directly contacts high-voltage live components. This not only extends the device's lifespan but also provides a high level of safety for on-site operators.
Improved On-Site Safety: The high-brightness visual warning effectively eliminates the risk of electric shock caused by misjudging the equipment's energized status, providing robust protection for all operators and maintenance personnel.
Low Long-Term Operating Costs: The Indoor High-Voltage Live Display Device DXN8D-Q/T Plug-in Type contains no complex electronic components, resulting in extremely high reliability and virtually no malfunctions. Its flame-retardant ABS housing and high-quality LED indicators ensure a lifespan of 8-10 years under normal operating conditions. The most significant advantage is that it requires no maintenance during operation—significantly reducing long-term maintenance costs and related work.
Superior Compatibility: Designed specifically for most indoor high-voltage systems, it is compatible with high-voltage equipment from various brands. Its versatility eliminates the need to purchase dedicated indicators for different devices.
