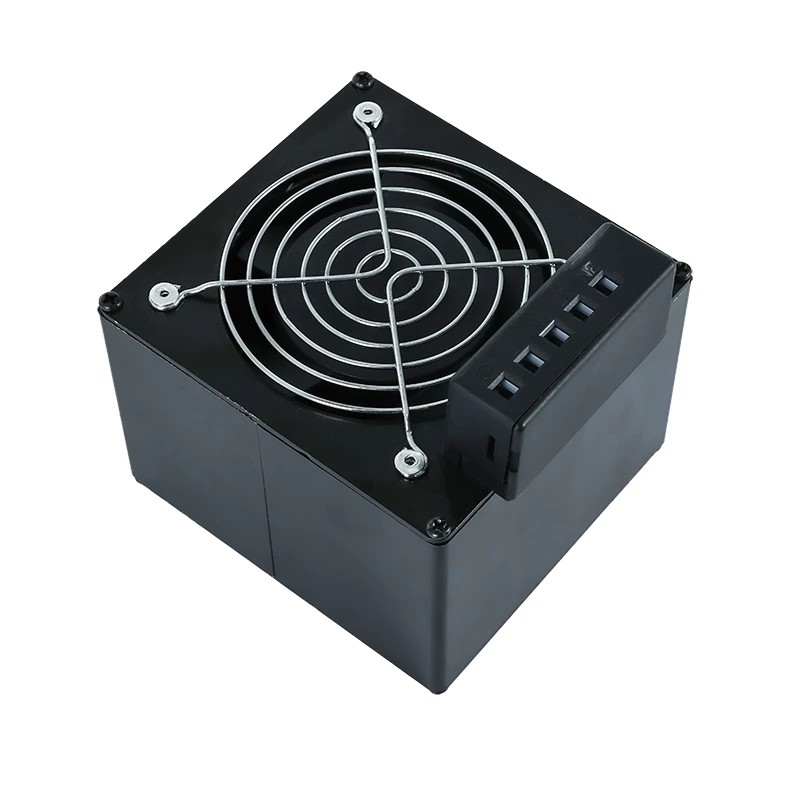

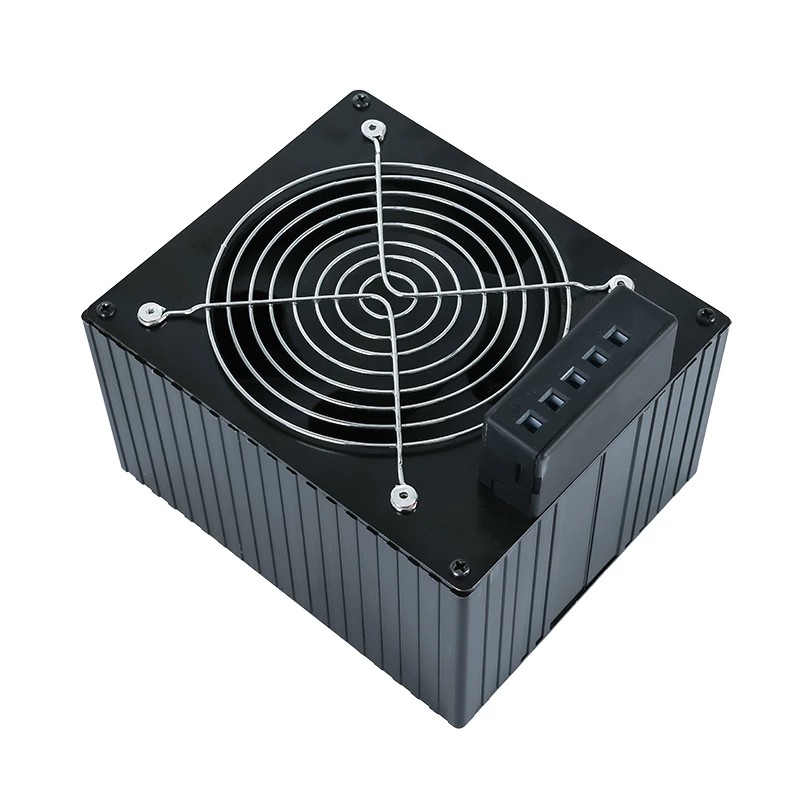

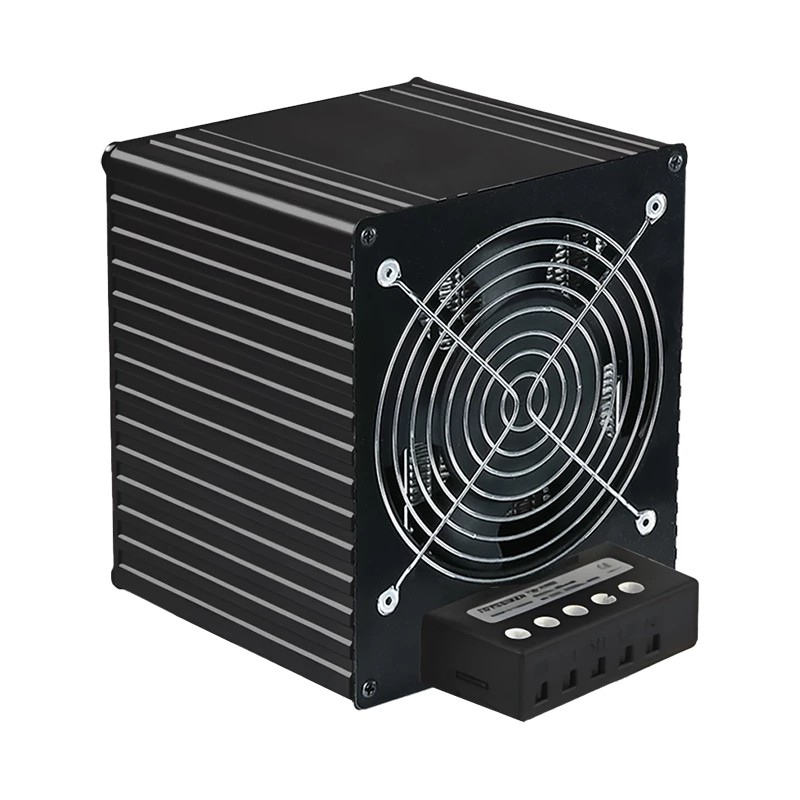

High-Power Cabinet Heater

With years of experience in production High-Power Cabinet Heater, Comewill can supply a wide range of High-Power Cabinet Heater.

Product Features

High-Power Cabinet Heater has a compact, space-saving design.

It supports convenient rail-mounted installation.

It has a long service life under normal operation.

It requires no regular maintenance during use.

A temperature cutoff function is built in as standard.

The heater is lightweight and easy to handle.

It effectively prevents condensation formation inside cabinets.

It also stops water droplet build-up on electrical components.

An integrated high-performance axial fan is included.

This fan provides strong air circulation throughout the cabinet.

It helps maintain a constant temperature inside the switchgear box.

The heater has high heat conversion efficiency.

It can adjust its thermal power output automatically.

The adjustment is based on real-time changes in ambient temperature.

It uses small resistors for stable operation.

These resistors are less affected by power supply voltage fluctuations. The heater runs in automatic constant temperature mode. This mode keeps the internal cabinet temperature stable at all times.

Safety is a key focus of this High-Power Cabinet Heater. If the axial fan fails during operation, a safety switch will activate. This switch is built into the heater’s internal circuit. It will automatically cut off the power supply. It stops the heater from continuing to heat. This prevents any potential safety hazards caused by fan failure.

HGM050 High-Power Fan Heater - Application Scenarios

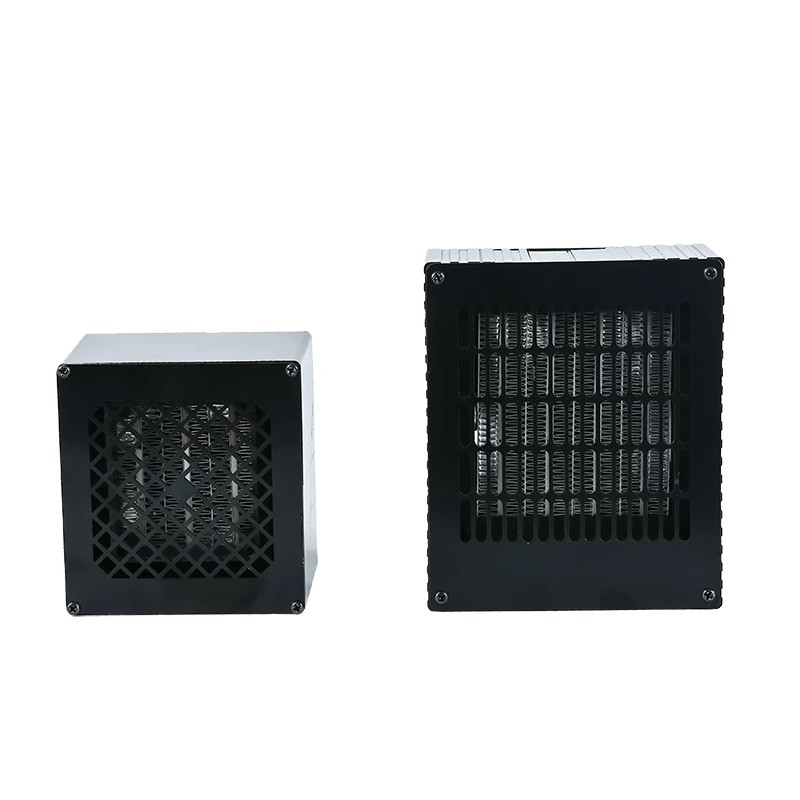

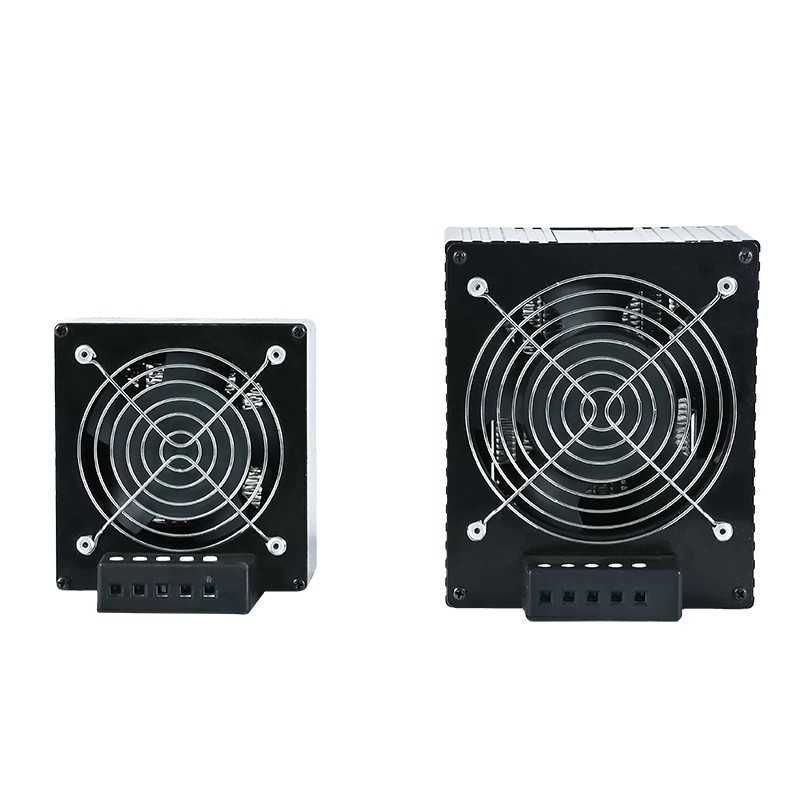

Our HGM050 high-power cabinet heater is built for heavy-duty use. It is a PTC aluminum alloy heater with an integrated fan. Power ranges from 200W to 1500W for different cabinet sizes.
This heater works well in large enclosed electrical equipment. It is ideal for high and low voltage switchgear boxes. It is also perfect for large-capacity distribution cabinets. Ring network cabinets with big internal spaces can use this heater. Box-type substations and dry-type substations benefit from it too.
It is specially suited for harsh working environments. Areas with high humidity and poor ventilation are good fits. Places with large daily temperature fluctuations work well too. It is great for outdoor electrical enclosures exposed to the elements.
This heater is also used in industrial control cabinets. Cabinets with many heat-sensitive components need this heater. It maintains a stable temperature and prevents condensation. It ensures the safe and reliable operation of all internal equipment.
