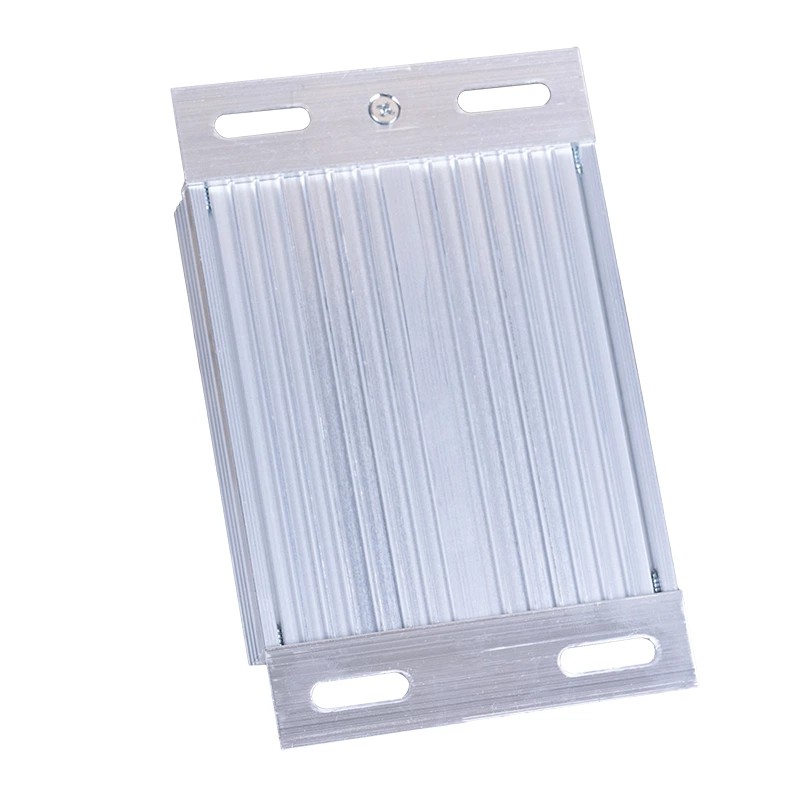

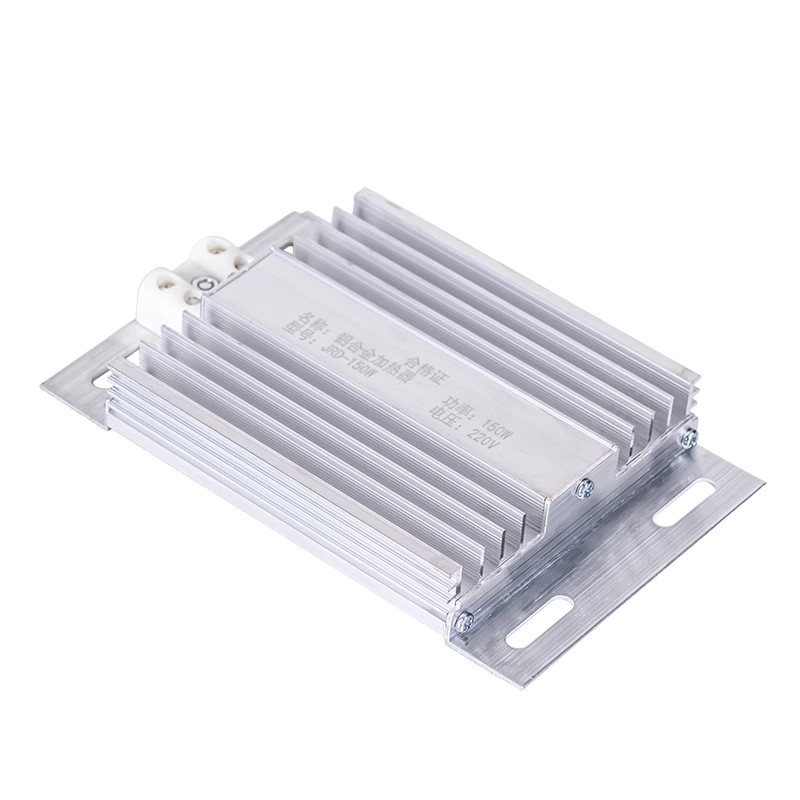

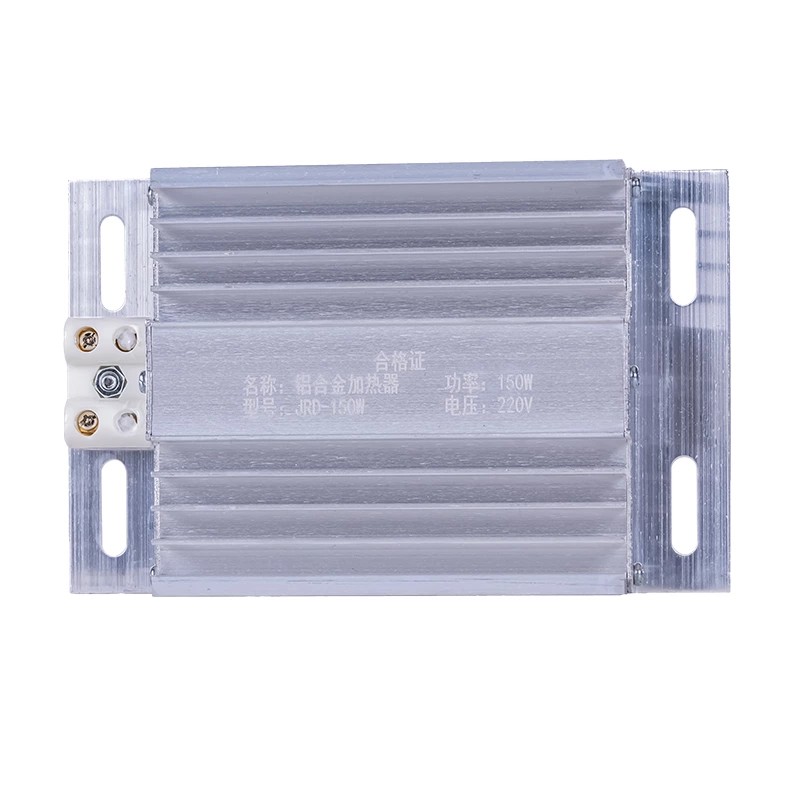

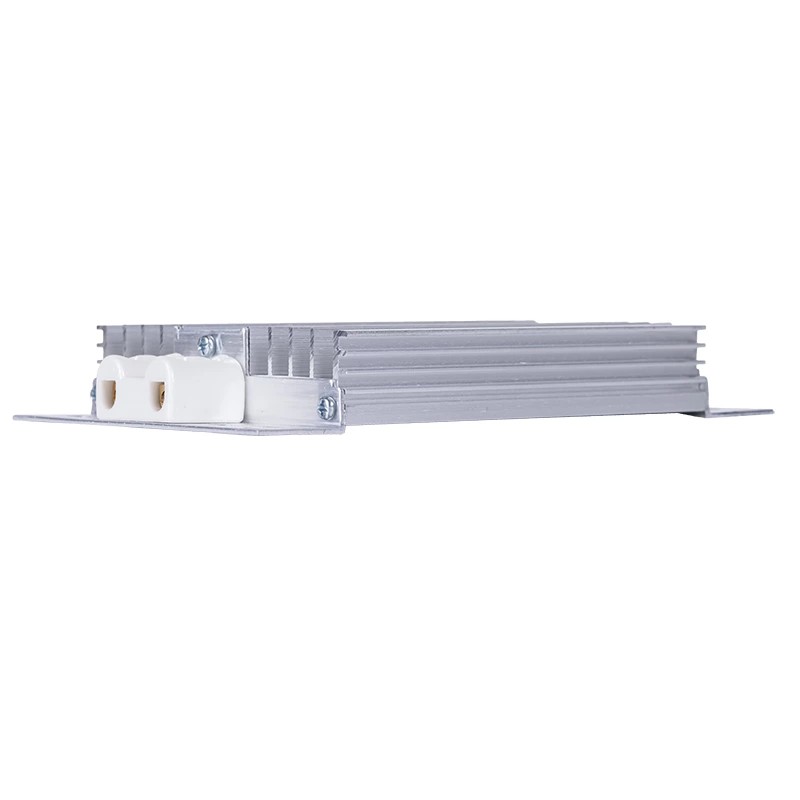

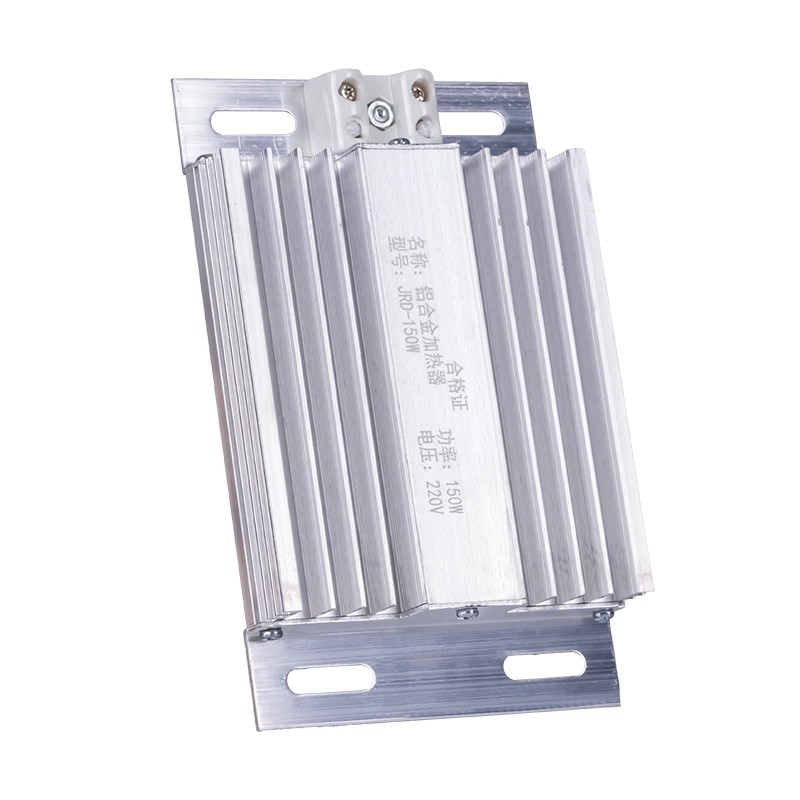

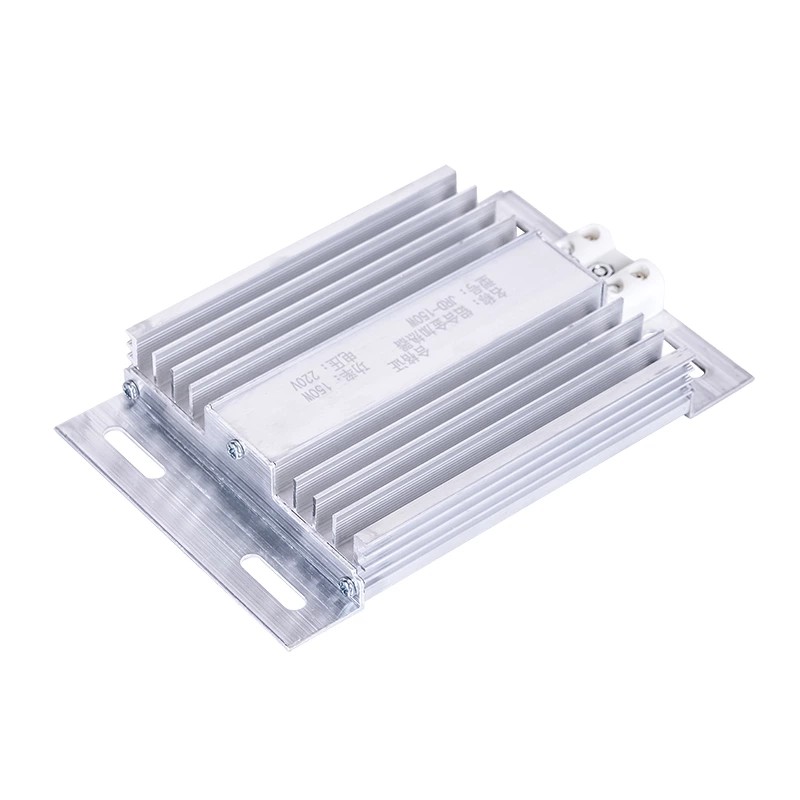

The Distribution Cabinet JRD Heating Plate by Comewill factory is a high-performance heating solution designed specifically for electrical cabinets operating in high-humidity environments. Condensation within distribution cabinets can impair device functionality, hinder mechanical operations, and, in severe cases, trigger tracking phenomena that compromise overall system stability. This advanced heating plate addresses these challenges by maintaining optimal temperature and humidity levels, ensuring your electrical components operate reliably and safely.
The Distribution Cabinet JRD Heating Plate automatically activates under two conditions: when the internal temperature falls below a preset level and when humidity exceeds a defined threshold. Once engaged, it efficiently warms the cabinet’s interior, eliminating condensation and protecting sensitive electrical mechanisms.
Constructed with premium materials for both the heating element and the shell
Equipped with integrated control chips to monitor real-time temperature
Dynamically adjusts heating power to prevent overheating
Up to 3× longer lifespan compared to conventional heaters
Reduced replacement frequency and maintenance costs
Strict maximum surface temperature limit (≤200°C)
Eliminates need for asbestos or additional insulation
Prevents accidental burns during maintenance
Avoids fire hazards caused by igniting dust or cabinet insulation
Meets modern environmental standards; free from toxic substances
Integrated temperature-sensing system detects ambient changes and adjusts thermal output accordingly
Maintains optimal dehumidification temperature while minimizing energy consumption
Wide adaptive voltage range ensures safe operation during power fluctuations
No open flame or sparks generated, improving operational safety
Automatic Climate Regulation: Unlike standard heaters, the Distribution Cabinet JRD Heating Plate intelligently responds to real-time temperature and humidity changes, ensuring stable cabinet conditions.
Enhanced Durability: Built with high-quality materials and integrated control chips, this device avoids sudden burnout and prolongs service life.
Comprehensive Safety: Surface temperature controls and flame-free operation minimize hazards inside cabinets.
Eco-conscious Design: Non-toxic materials and energy-efficient operation make it environmentally responsible
| Operating voltage | AC/DC220V |
| Heating element | Nickel chromium alloy resistancewire |
| Exothermic body | Anodized aluminum profiles |
| Heating power | 25W~400W,500W |
| Insulation resistance | ≥10MΩ |
| Operating/storage environment | -45~+70℃(-49~-158of) |
| Protection level | IP32 |
