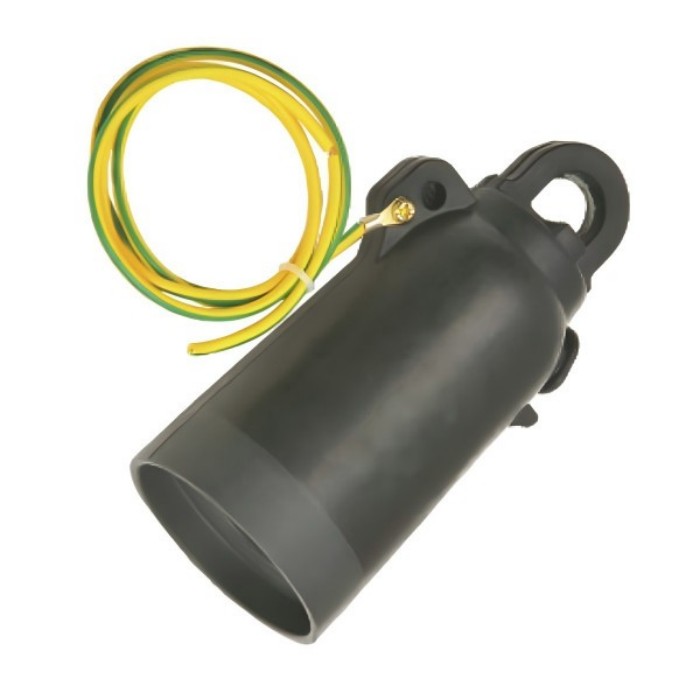

15KV 200A Insulated Protective Cap

Welcome (Wenzhou) Electric Co., Ltd is a professional manufacturer of insulation protective caps. Our product quality is reliable and strictly follows IEEE 386 and IEC standards.
This 15KV 200A Insulated Protective Cap is an auxiliary accessory designed specifically for load switch bushing interfaces, with the core function of providing electrical insulation and mechanical sealing. As long as it is used in conjunction with load switch products and the drainage wire is reliably grounded, it can provide comprehensive shielding protection for live conduits even in humid environments.

This 15KV 200A Insulated Protective Cap is flexible to use, suitable for both long-term fixed installation and temporary use scenarios. It is compatible with 200A load switch bushings, wiring positions, and insulation support bushings.

Product Details

Product Highlights

Premium Insulation Material: Crafted from high-quality ethylene propylene diene monomer (EPDM) rubber, formulated, mixed, and rolled in-house to ensure excellent durability, stable performance, and resistance to harsh environmental conditions.
Advanced Semi-Conductive Shielding: The integrated EPDM semi-conductive layer fully complies with IEEE 592 standards, effectively preventing live part exposure while maintaining robust electrical performance.
Convenient Grounding Design: Three integrated wiring ears simplify grounding installation, ensuring secure connection and enhanced user safety.
Precision Pull Ring Structure: Reinforced stainless steel pull rings provide precise operation when using switching guns, ensuring stable and reliable connection every time.
Flexible Application: Compatible with 200A load switch bushings and insulation support bushings, 15KV 200A Insulated Protective Cap is suitable for temporary or permanent installations across various medium-voltage settings.

Technical Parameters
