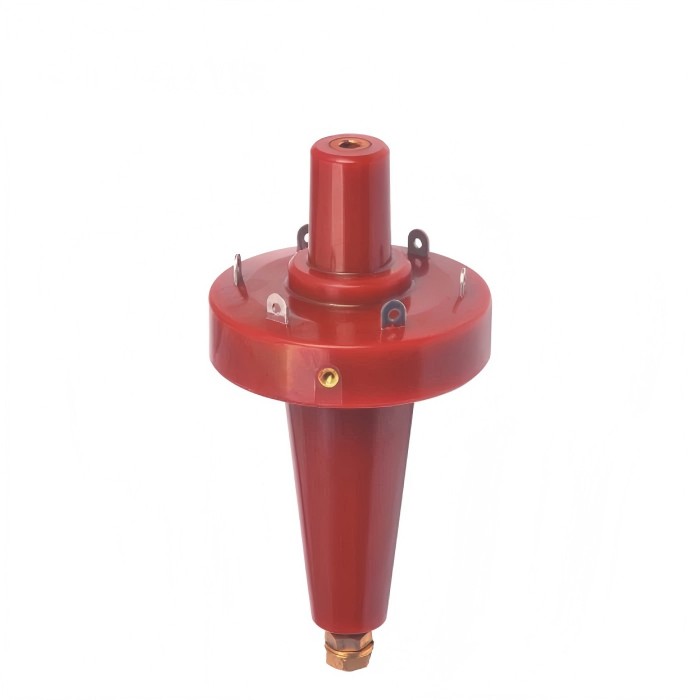

Welcome (Wenzhou) Electric Co., Ltd. here — we’ve got the 24kV 400A Apparatus Bushing you need for your high-voltage equipment matching and procurement.
This bushing is specifically designed as the interface for 200A cable connectors. It’s mostly used on oil-insulated apparatus — including R-temp, hydrocarbon, or silicon type equipment like switchgear, transformers, and capacitors.
What’s more, our apparatus bushings are all molded with top-grade Epoxy Rubber, and fully meet the requirements of standards EN50180/EN50181, DIN47636, HN52-S-61. Quality is totally guaranteed.
If you’re sourcing this type of bushing, we offer competitive prices, flexible MOQs, and on-time delivery to keep your project running smoothly. Need bulk orders, sample testing, or more technical details? Just reach out. We’re here to help with your procurement needs.
The 24kV 400A Apparatus Bushing are widely used in high-voltage switchgear in substations and distribution rooms, transformer outlet interfaces, as well as wall-through conductive connections for GIS equipment.
In new energy photovoltaic power stations, medium-voltage distribution systems for wind power projects, high-voltage electrical equipment in industrial fields such as chemical, metallurgical, and mining, as well as in urban distribution network renovation and high-rise building power supporting projects, it can play a core role in insulation and mechanical support, adapting to the long-term stable operation requirements of fixed equipment.
| Description | Reference No. |
| 24kV 400A Apparatus Bushing | TGZ-24/400 |
The 24kV 400A Apparatus Bushing serves as a critical interface between high-voltage equipment and cable accessories, ensuring safe current transfer and insulation separation.
Provides connection interface for 200A separable cable connectors
Ensures electrical insulation between live conductors and grounded equipment
Supports mechanical fixation and stress distribution
Enables stable operation in oil-insulated apparatus systems
Superior Insulation Material
Molded with high-grade epoxy resin rubber
Stable dielectric performance with low dielectric loss
Resistant to aging, cracking, and environmental degradation
Advanced Manufacturing Process
APG pressure gel technology ensures high-density molding
No internal air bubbles for consistent insulation strength
Improved uniformity compared to traditional casting methods
Structural Reliability
Built-in stress relief design extends service life
Precise flange and bolt-hole alignment for easy installation
Strong mechanical impact resistance for harsh environments
