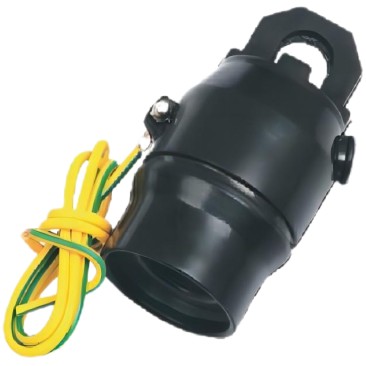

Comewill, a professional manufacturer in China, would like to provide you high quality 24kV 250A Insulated Protective Cap — it’s a professional accessory for high-voltage equipment, just what you need for sourcing.
It’s pretty versatile too. You can use it for permanent installation on 250A bushings, junctions, or insulated standoff bushings — or just use it temporarily, like during maintenance. Either way, it works perfectly.
If you’re looking to source this cap, we offer good prices, flexible MOQs, and on-time delivery to keep your project supply chain steady. Need bulk orders, samples to test, or technical help for customization? Our team is here to assist.
So if you need high-quality 24kV 250A insulated protective caps for your equipment, just get in touch. We’ll provide cost-effective, reliable products to make your procurement easier and keep your electrical systems safe.
In medium-voltage switchgear and transformer applications, unprotected 250A load-break bushings are vulnerable to dust accumulation, moisture ingress, and electrical tracking—leading to costly unplanned outages. Comewill’s engineered protective cap eliminates these risks by providing a fully shielded, submersible insulation barrier that meets international IEC/ANSI performance benchmarks. Whether you are retrofitting aging switchgear or commissioning new GIS systems, this cap ensures long-term reliability in even the harshest environments.
1.Highly reliable electrical performance
The power frequency withstand voltage is not less than 54KV for 1 minute, the lightning impulse withstand voltage reaches 125KV, the partial discharge is less than or equal to 10pC, and the insulation strength is stable and reliable, capable of reliably blocking high-voltage current.
2.Excellent environmental adaptability
With a temperature tolerance range from -40℃ to 120℃, UV resistance, and ozone corrosion resistance, it can stably function in coastal salt spray environments, cold northern regions, or dusty mining sites, with an outdoor service life exceeding 20 years.
3.The structural design is exceptionally practical
The elastic material inherently possesses tear and compression resistance, and the buckle-type structure allows for operation by a single person without requiring complex tools. The 24KV 250A Insulated Protective Cap is also reusable, making subsequent maintenance particularly convenient.
4.Fully optimized protective effect
The fully sealed design effectively blocks dust and moisture, achieving a flame retardant rating of UL94-V0. It also prevents the formation of electrical tracks, providing comprehensive protection for equipment interfaces.
| Description | Reference No. | Continuous operating Voltage | Continuous nominal Current |
| 24kV 250A Insulated Protective Cap | JYM-24/250 | 24 | 250A |
The parameters mentioned above are typical. If our existing styles don’t meet your specific needs, just get in touch with us for custom design. We’ve got strong capabilities in personalized customization, development and production — able to provide tailored solutions for customers around the world.
Permanent installation: Sealing 250A bushings on medium voltage switchgear and vacuum circuit breakers to prevent corona discharge.
Temporary protection: Safety capping during cable testing, maintenance, or de-energized busbar cleaning.
Compatibility: Specifically designed for 250A load-break interfaces; pairs seamlessly with 630A universal bushings using reducing adapters (contact us for options).
Q1: What is the difference between a 24kV 250A insulated cap and a standard dust cover?
Unlike passive dust caps, Comewill’s 24kV 250A cap is a fully shielded, grounding-equipped insulation device rated for full system voltage. It provides a dead-front safety interface with verified partial discharge levels, making it suitable for energized bushing protection, not just physical obstruction.
Q2: Can I use this cap for outdoor 24kV cable terminations?
Yes, this cap is engineered with UV-stable silicone and a wide temperature range (-40°C to 120°C), making it highly suitable for outdoor applications such as pole-mounted transformers and pad-mounted switchgear. It offers over 20 years of service life under direct sunlight and extreme weather.
