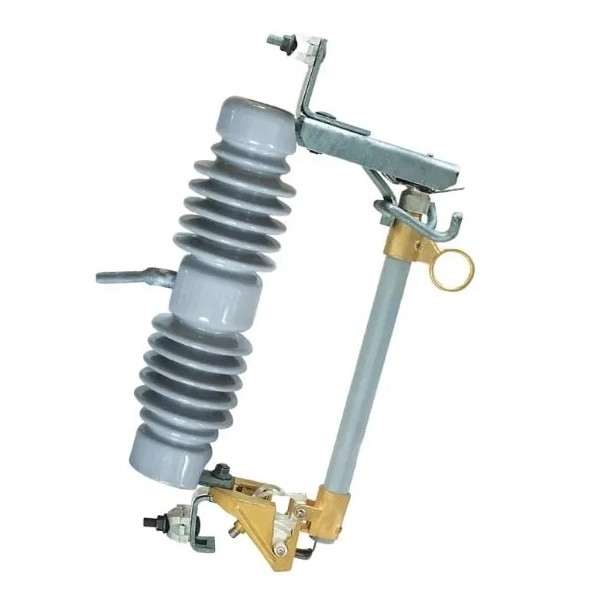

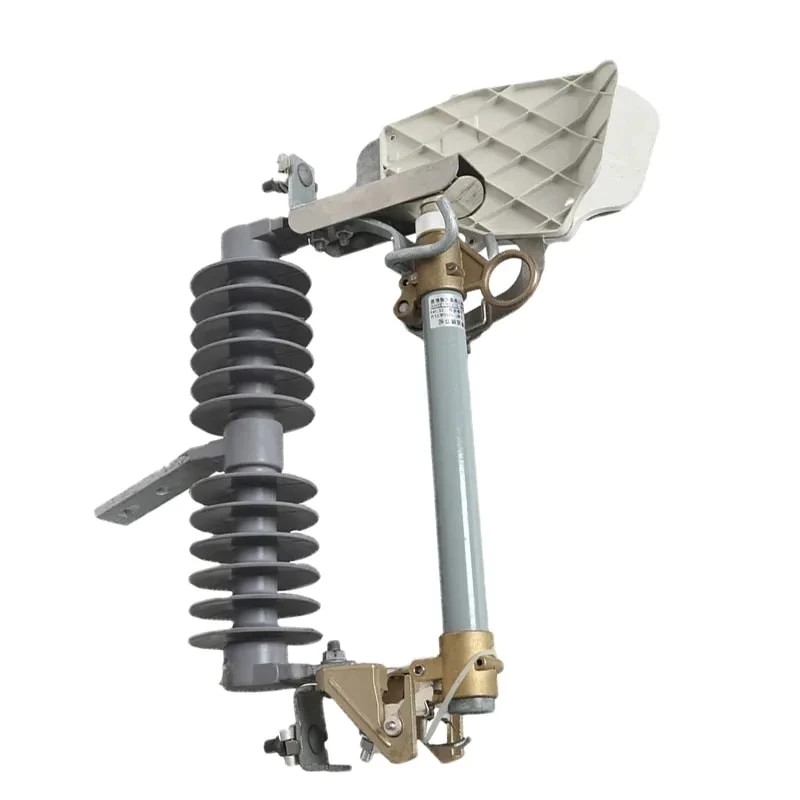

High Voltage Drop out Ceramic Fuse Cutout with Holder

Comewill factory's High Voltage Drop out Ceramic Fuse Cutout with Holder is a single integrated unit.It consists of two key parts. One part is the fuse assembly. The other part is the disconnect switch. When excessive current passes through the fuse cutout, the fuse element will melt. This is often referred to as “blowing” the fuse. Once the fuse element melts, the circuit opens immediately. This action disconnects the faulty section from the main power source.

Working Principles

High Voltage Drop out Ceramic Fuse Cutout with Holder rely on thermal interruption for overcurrent protection. They use this basic principle in all operating scenarios.
Each cutout contains a fuse element at its core. This element is made from low-melting-point materials. Common materials include silver and copper.
Under normal operating conditions, current flows smoothly through the fuse element. There is no interruption to the circuit during this time.
When current exceeds the predetermined rating, the situation changes. Excessive current generates a large amount of heat. This heat causes the fuse element to melt quickly. The melting of the element creates an open circuit immediately.

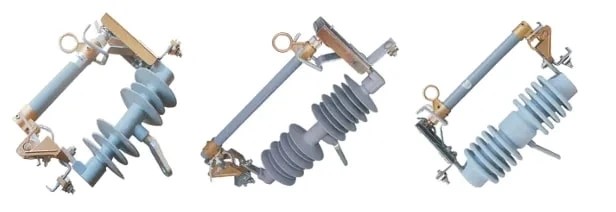

Types of Fuse Cutouts

Welcome (Wenzhou) Electric Co., Ltd. High Voltage Drop out Ceramic Fuse Cutout with Holder has multiple types. Each type is designed for specific uses. They also match different voltage levels.
Common types are as follows:
Expulsion Fuse CutoutsThese cutouts put the expulsion effect of gases to use.The gas expulsion helps extinguish the arc.It also interrupts the current smoothly.
Dropout Fuse CutoutsDropout cutouts have a key feature.They can give a visible indication.This indication appears when the fuse element operates.
Current-Limiting Fuse CutoutsThese cutouts are used to limit fault current.They prevent excessive fault current from flowing in the system.

Specification

Installation and Maintenance

Proper installation and regular maintenance are critical.They ensure High Voltage Drop out Ceramic Fuse Cutout with Holder work reliably.
Key points to note are as follows:
Choose the right type of fuse cutout. Selection must match system requirements.
Follow installation guidelines strictly. Refer to the manufacturer's instructions. Also, comply with relevant safety regulations.
Conduct regular inspections. Check for wear, corrosion, or loose connections.
Replace blown fuses in time. This keeps overcurrent protection effective.

Benefits and Applications

Fuse cutouts have many advantages. These advantages make them widely used in power distribution systems.
Main benefits are as follows:
1.Provide reliable overcurrent protection for electrical equipment.
2.Cost-effective choice. Compared with other protective devices, they are more economical.
3.Blown fuses can be replaced quickly and easily. This helps minimize system downtime.
4.Applicable to a wide range of scenarios. Including residential, commercial and industrial settings.
