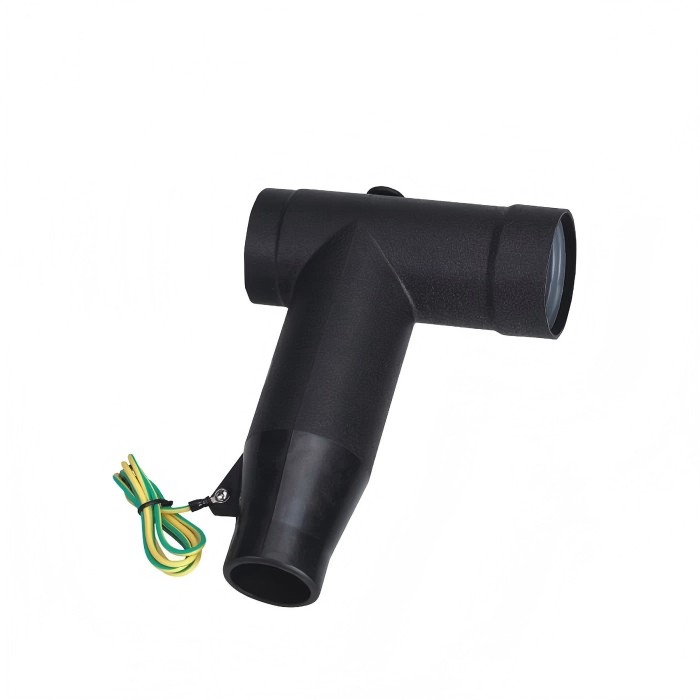

12/24KV 630A Separable T Connector

Welcome (Wenzhou) Electric Co., Ltd. — we’ve got the 12/24KV 630A Separable T Connector you’re after for your high-voltage power distribution jobs.
This T connector does one key thing: splits a single main cable into two or more branches. Perfect for any setup that needs flexible circuit expansion. It handles up to 630A current, works with both 12kV and 24kV systems, and fits right in with transformers, switchgear, and sectionalizing cabinets.
The separable design is a game-changer — on-site install and maintenance are a breeze, no need for tedious power cuts. We use top-shelf insulating materials too, so it’s fully shielded and holds up fine even in damp, rough outdoor spots.
If you’re looking to stock this connector, we’ve got good prices, flexible MOQs, and on-time delivery to keep your projects rolling. Need bulk orders, samples to test, or just more specs? Just holler — we’ll make your sourcing process quick and easy.

Application

◆ Use it to link polymeric cables to transformers, switchgear, motors and other gear — just pair 12/24KV 630A Separable T Connector with a pre-moulded separable connector.
◆ Works perfectly fine indoors and outdoors, no fussy restrictions.
◆ Handles system voltage up to 24 kV.
◆ Continuous current 630 A, and can take 900 A overload for 8 hours straight.

Cable Particulars

Polymeric cables (XLPE, EPR, that kind of stuff)
Copper or aluminum conductors both work
Semiconducting or metallic screens are compatible
Conductor size: 25–120 mm² for 12kV; 25–400 mm² for 24kV

Features

◆ Match 12/24KV 630A Separable T Connector with the right bushing or plug, and you get a fully screened, totally submersible separable connection.
◆ Tough enough for all kinds of working conditions.
◆ Built-in capacitance test point — you can check circuit status or install a fault indicator with it.
◆ No minimum phase clearance needed, saves you setup hassle.
◆ Mount it any way you want: vertical, horizontal, or any angle in between.

Installation

◆ No special tools required — super easy to handle.
◆ Once the elbow connector’s installed, you can power it up right away.
◆ Just follow the Installation Instruction Sheet step by step.(Any special requests? Hit up our sales engineers directly.)

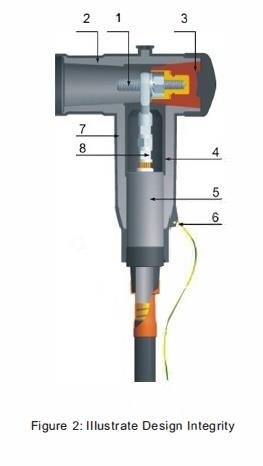

Product Structure & Engineering Design

The internal structure ensures both mechanical strength and electrical stability:
EPDM Insulation Layer: High-durability molded rubber for stable dielectric performance
Semi-Conductive Shield: Maintains uniform electrical stress distribution
Stress Relief Design: Protects cable termination from mechanical strain
Aluminum Cable Lug: Ensures efficient current transfer and thermal stability
Grounding Eye: Provides safe earthing connection
Capacitive Test Point: Enables real-time circuit status monitoring
